Special Service Tools
Special Service Tools

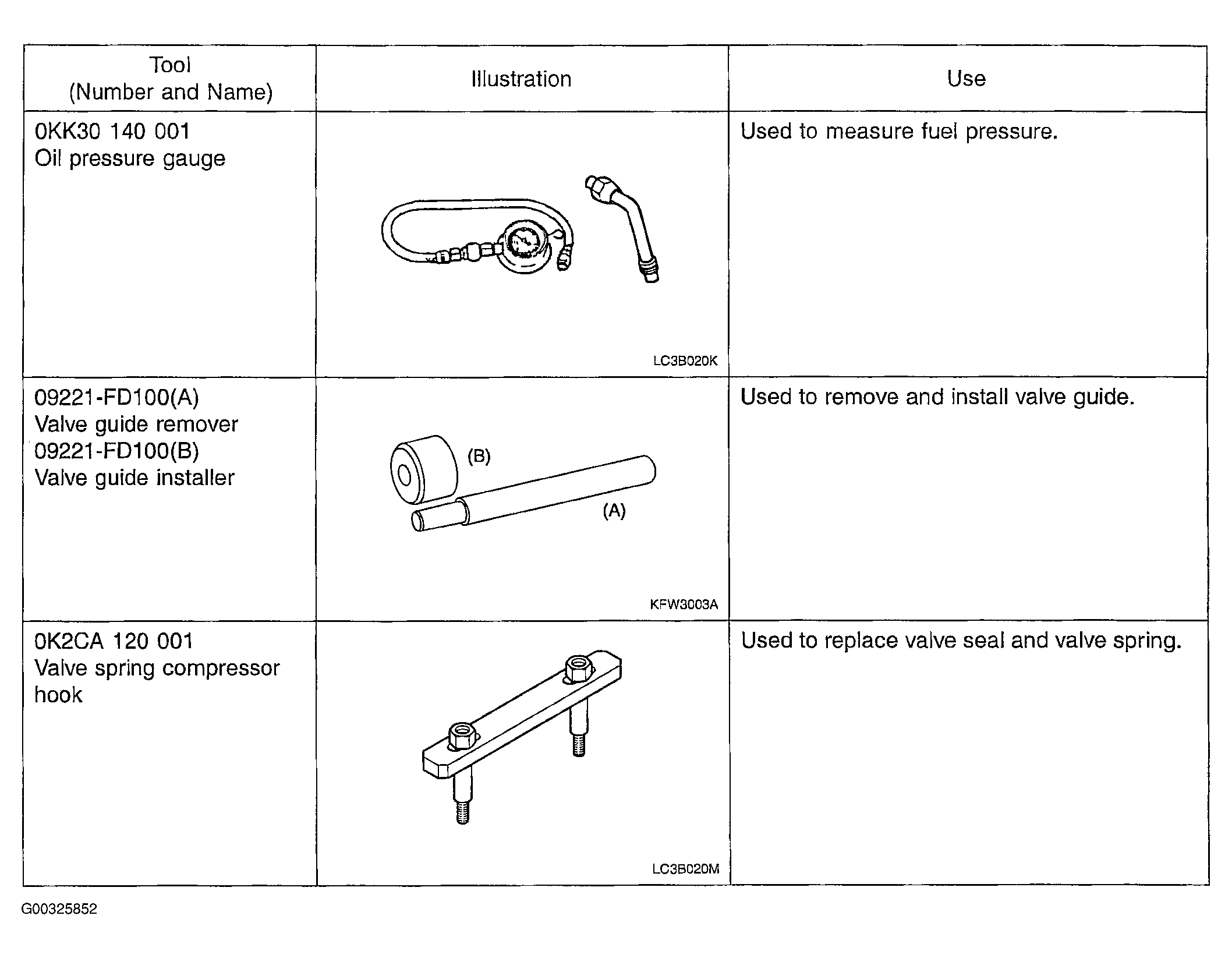

Fig 1: Special Service Tools (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

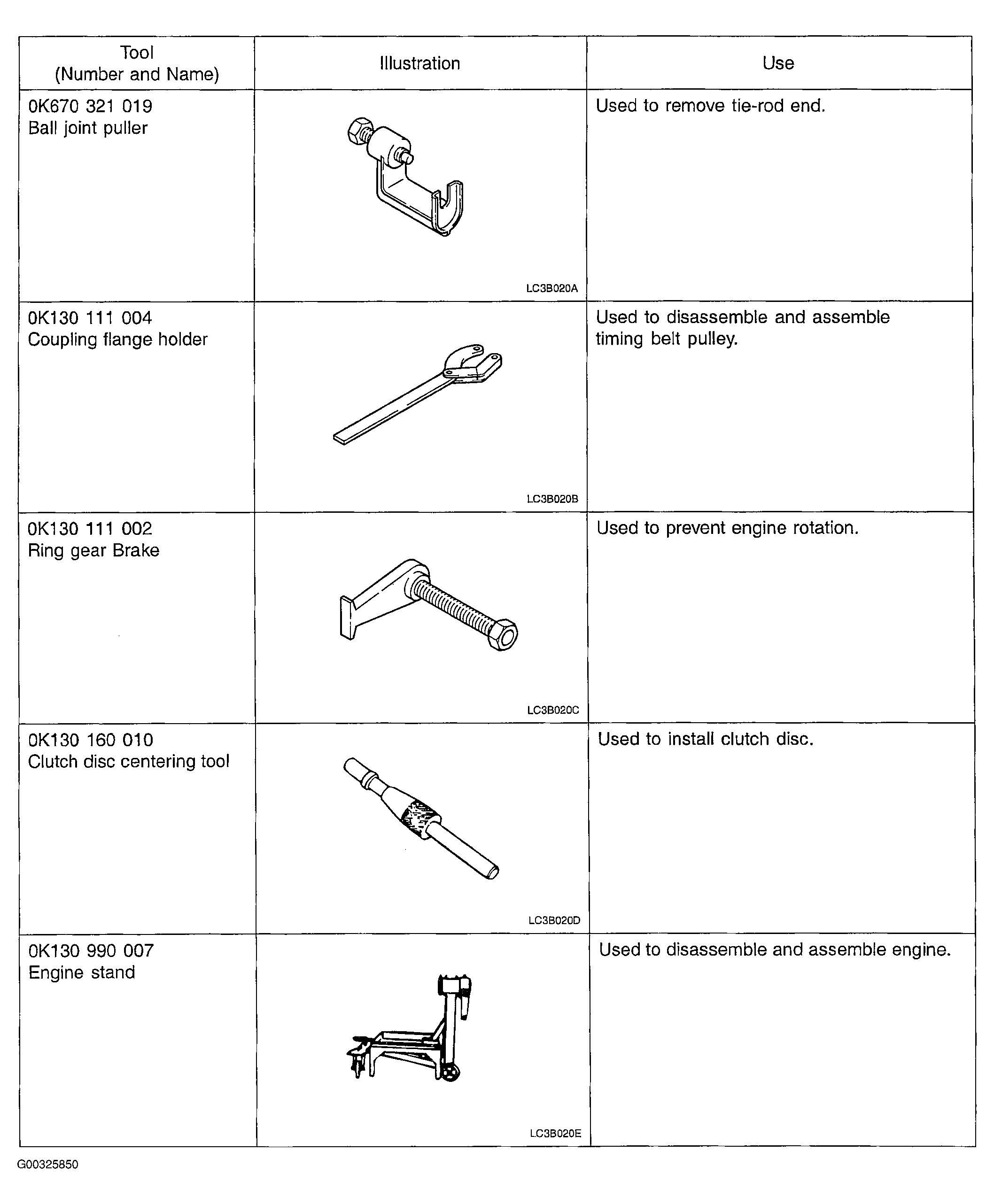

Fig 2: Special Service Tools (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

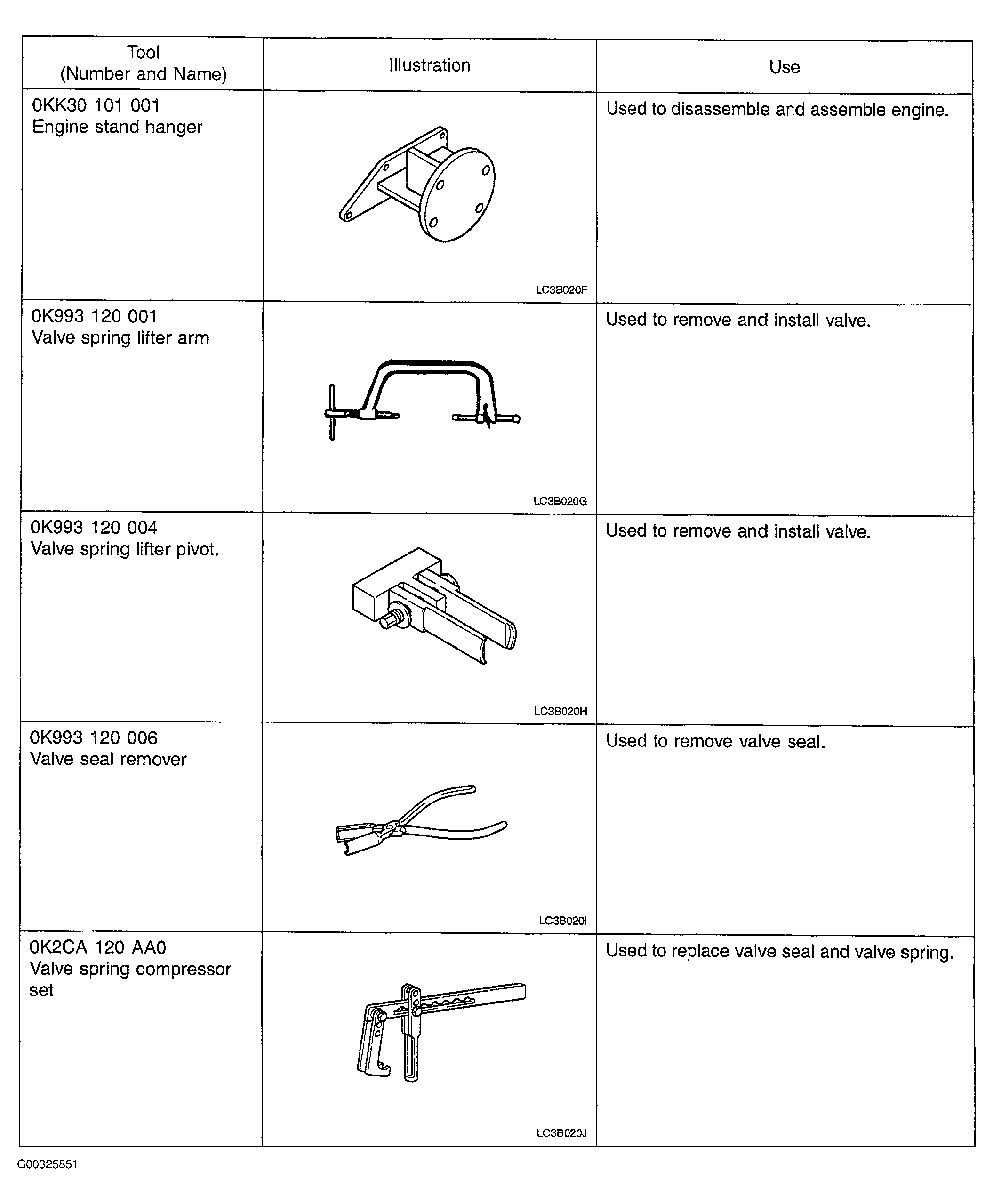

Fig 3: Special Service Tools (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
