LEMON Manuals
: Even more car manuals for everyone
Home
>>
Kia
>>
2003
>>
Rio Base, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges & Indicators
>>
Specification
Gauges & Indicators: Specification

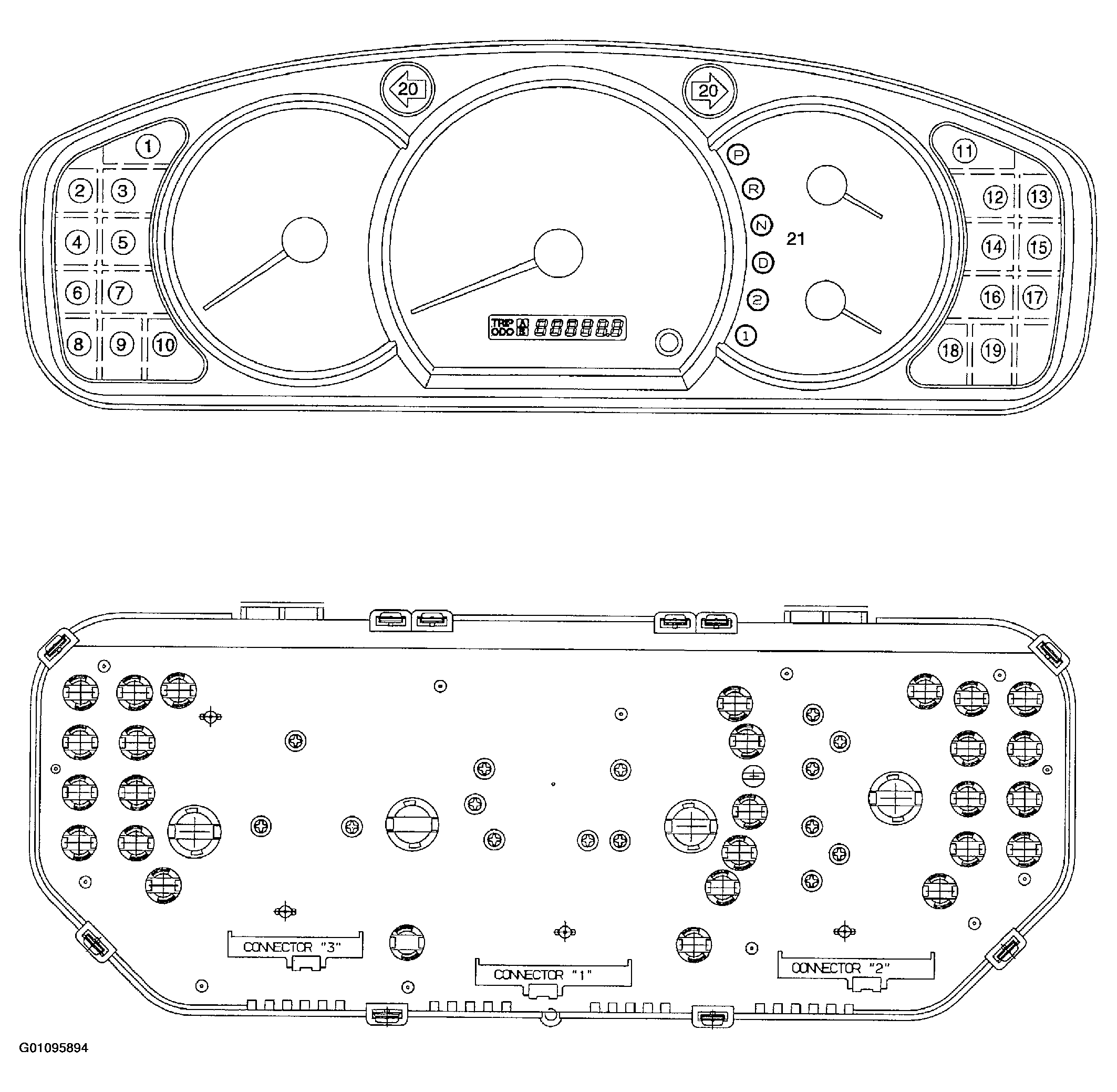

Fig 1: Illustrating Cluster Bulb & Connector Position
Courtesy of KIA MOTORS AMERICA, INC.

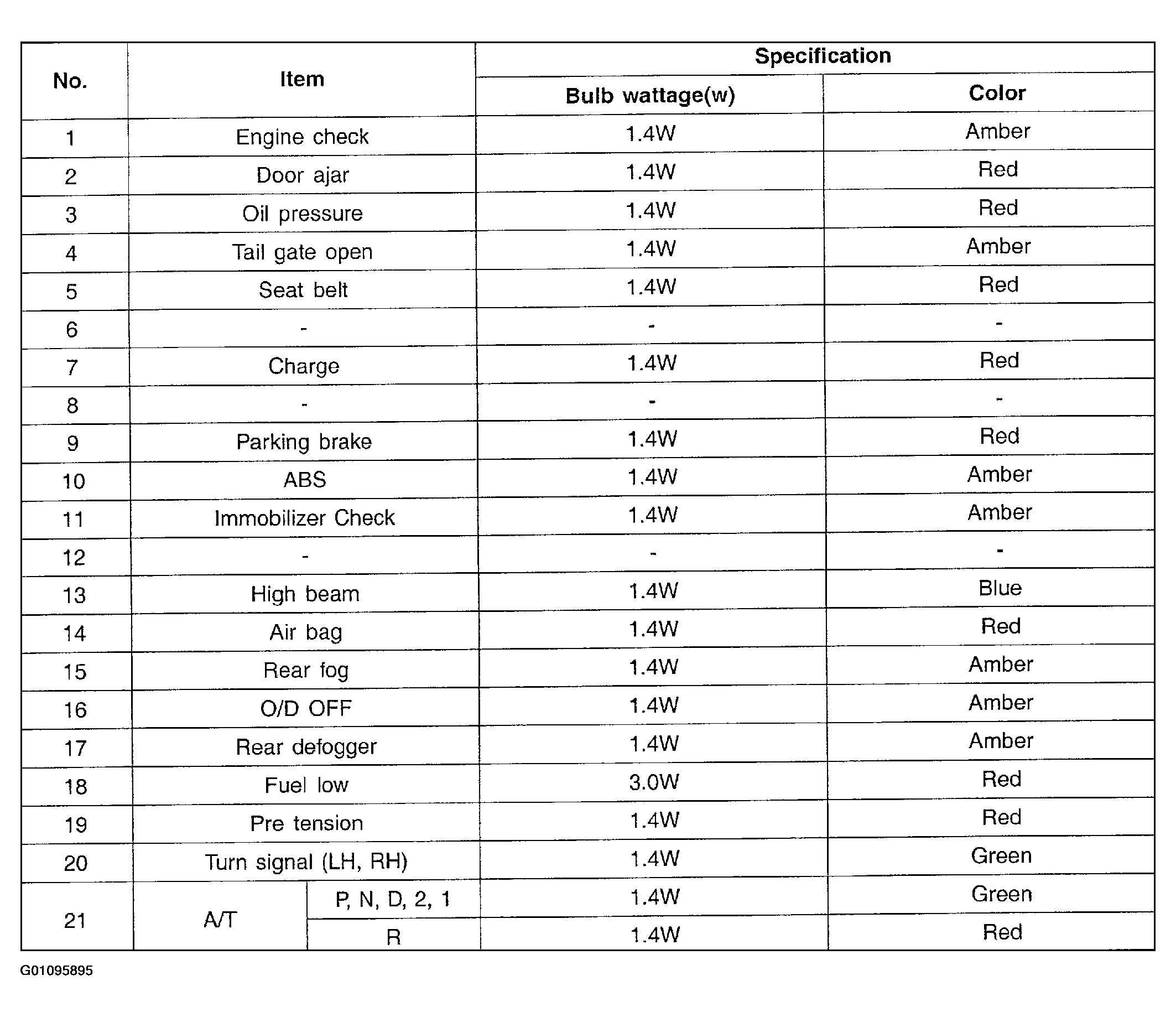

Fig 2: Cluster Bulb Specification Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
