Front Wiper Motor Connector End View

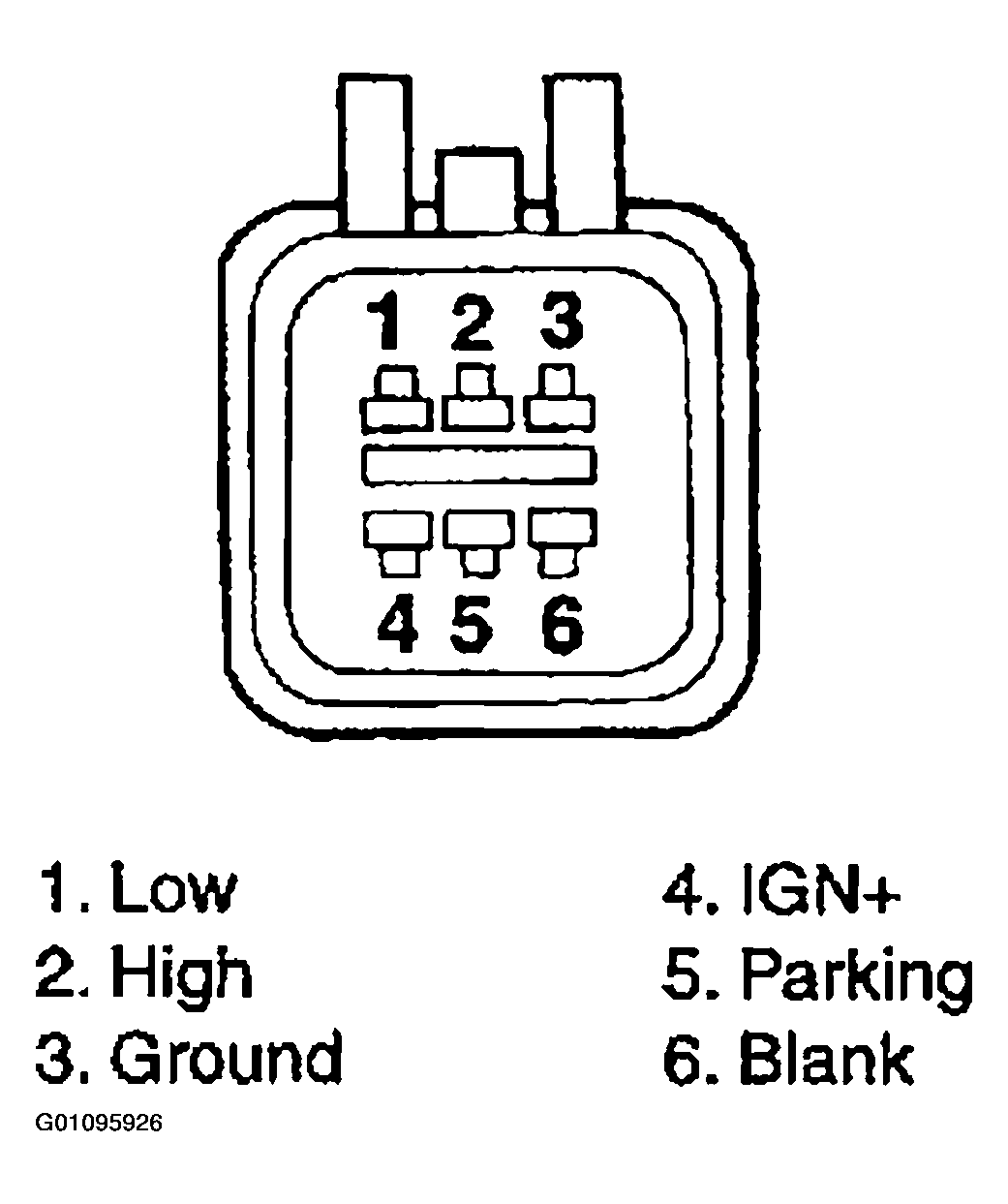

Fig 1: Front Wiper Motor Connector End View

G01095926

Courtesy of KIA MOTORS AMERICA, INC.
