Home >> Kia >> 2003 >> Rio Base, Automatic >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Rear Axle >> Rear Hub/Carrier >> Components

Rear Hub/Carrier: Components

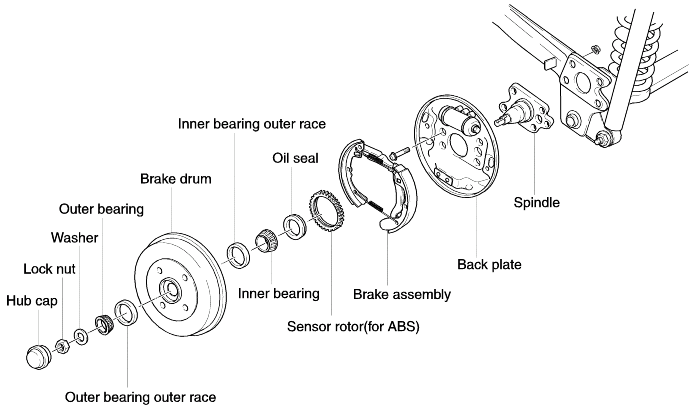

Fig 1: Exploded View Of Rear Hub Components

G00516487

Courtesy of KIA MOTORS AMERICA, INC.
