Wheel Hub/Knuckle Assembly: Component

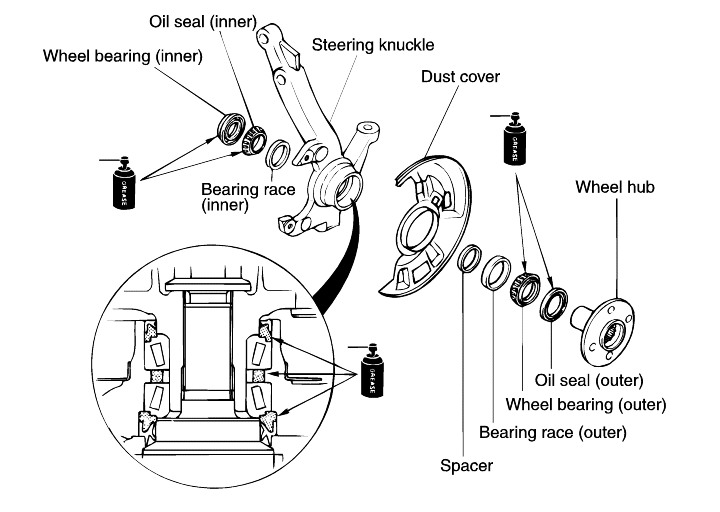

Fig 1: Exploded View Of Wheel Hub & Knuckle Components

G00525464

Courtesy of KIA MOTORS AMERICA, INC.
