Engine And Transaxle Assembly: Components

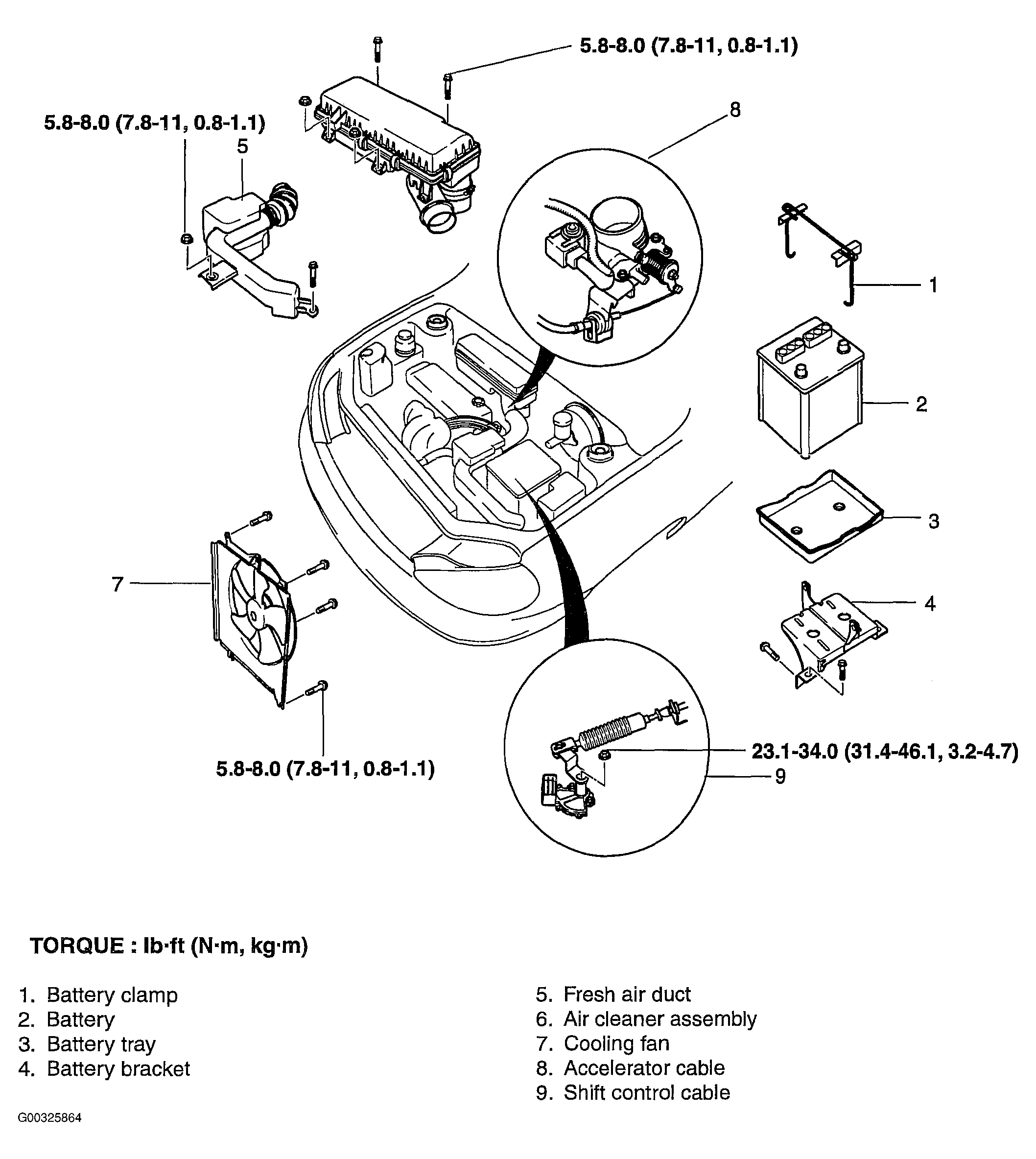

Fig 1: Identifying Engine & Transaxle Assembly Components (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

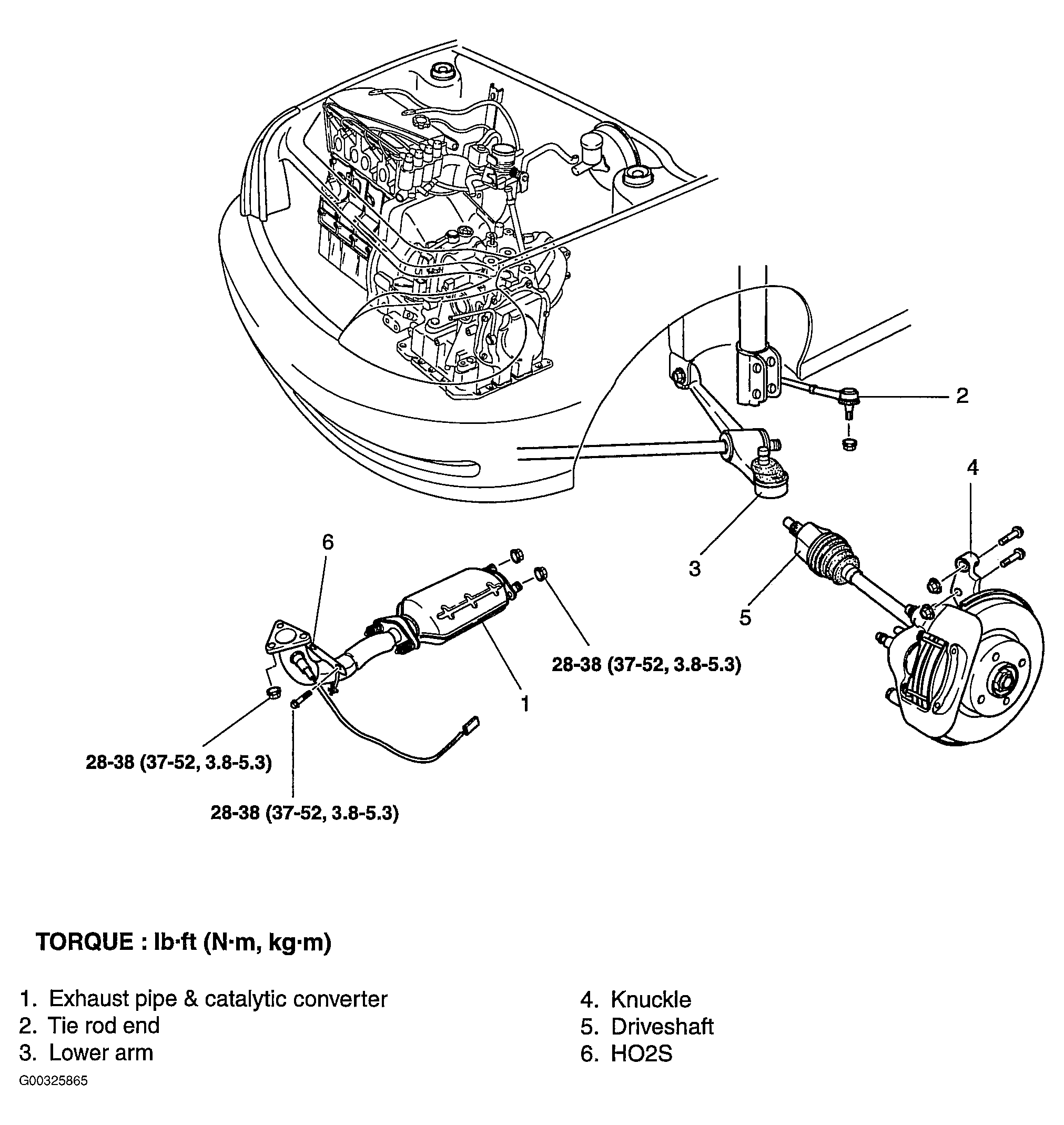

Fig 2: Identifying Engine & Transaxle Assembly Components (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

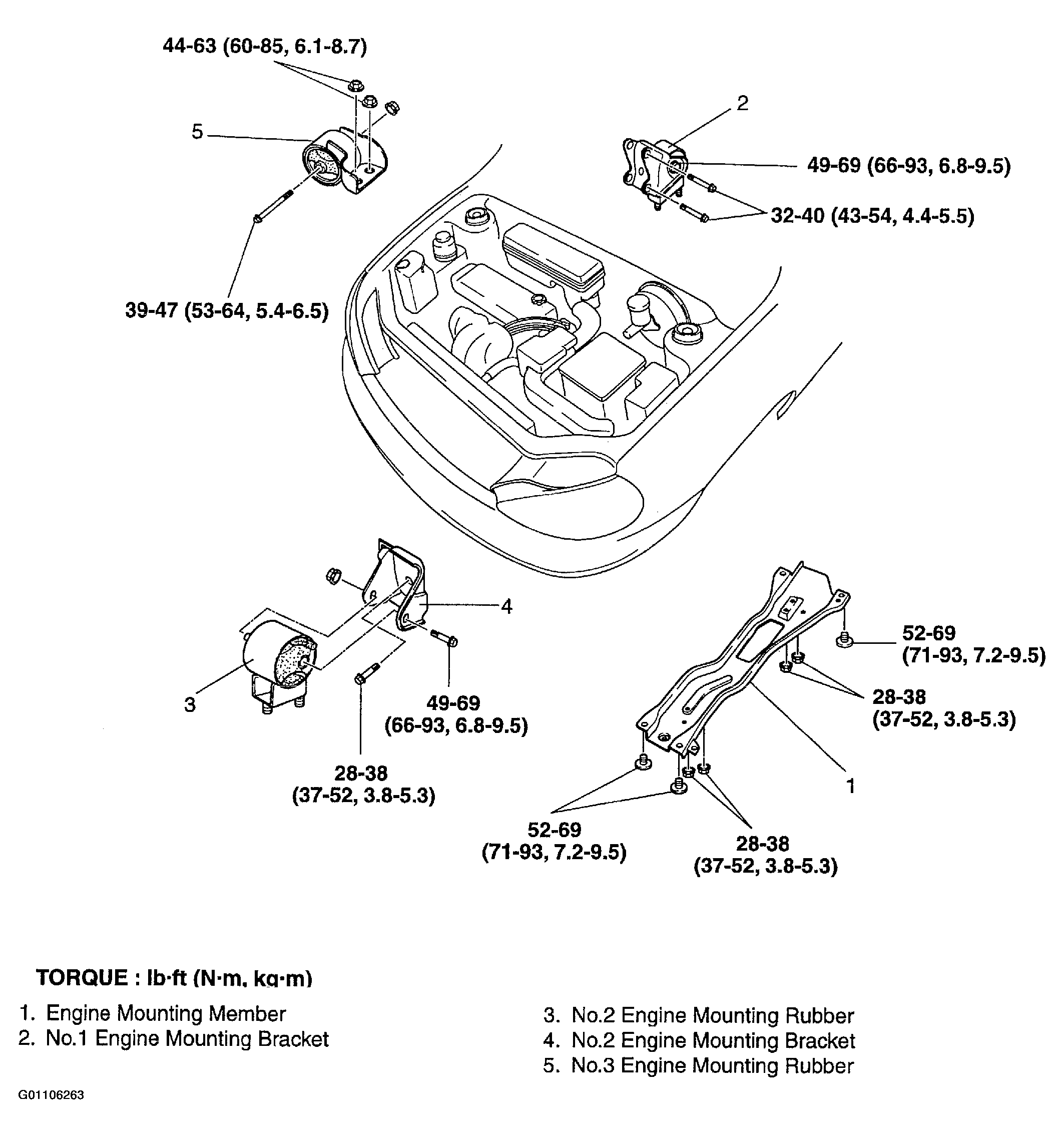

Fig 3: Identifying Engine & Transaxle Assembly Components (3 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

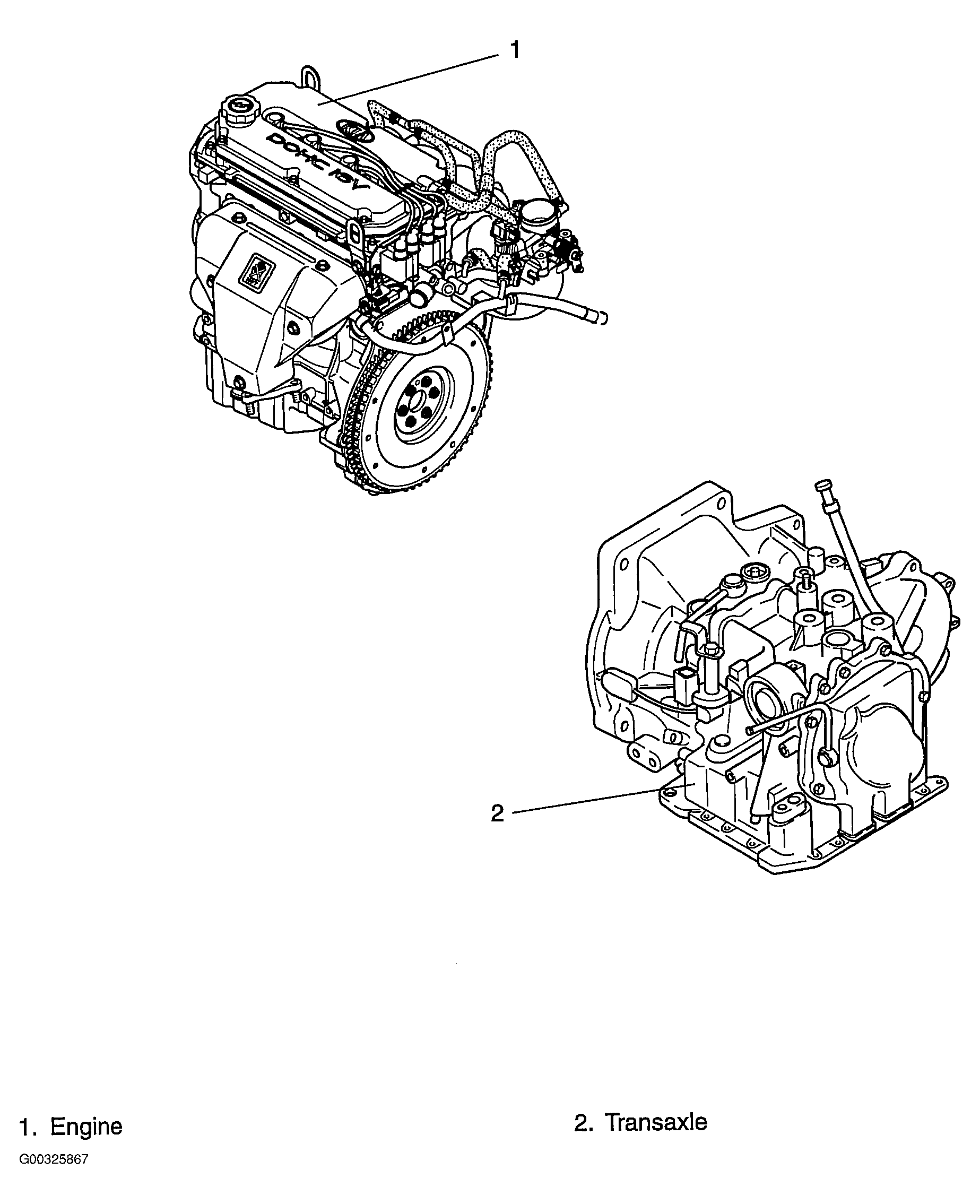

Fig 4: Identifying Engine & Transaxle Assembly Components (4 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.
