Intake And Exhaust System: Muffler: Components

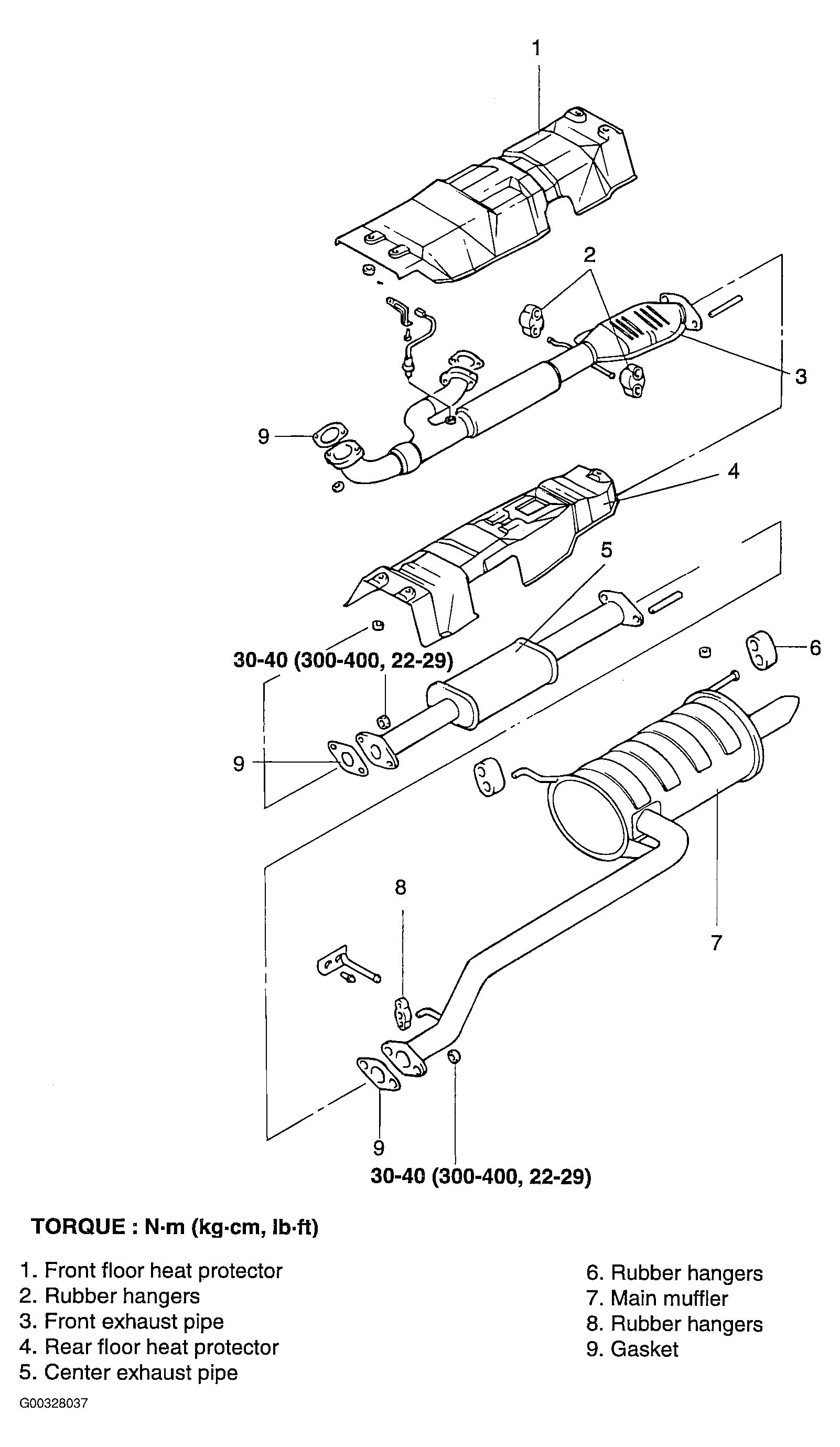

Fig 1: Removing & Installing Muffler

G00328037

Courtesy of KIA MOTORS AMERICA, INC.
