Removal & Installation: Generator: Removal

NOTE: Put on gloves to protect hands during working.

CAUTION: Cutting the stator coil lead line connecting to the rectifier may damage the generator because the rectifier and the stator coil lead line are soldered together. So, do not disassemble further

Remove the generator cover using a screwdriver or equivalent. See Fig 1, Fig 2, Fig 3 and Fig 4.

Fig 1: Generator Components
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Generator Removal
Courtesy of KIA MOTORS AMERICA, INC.

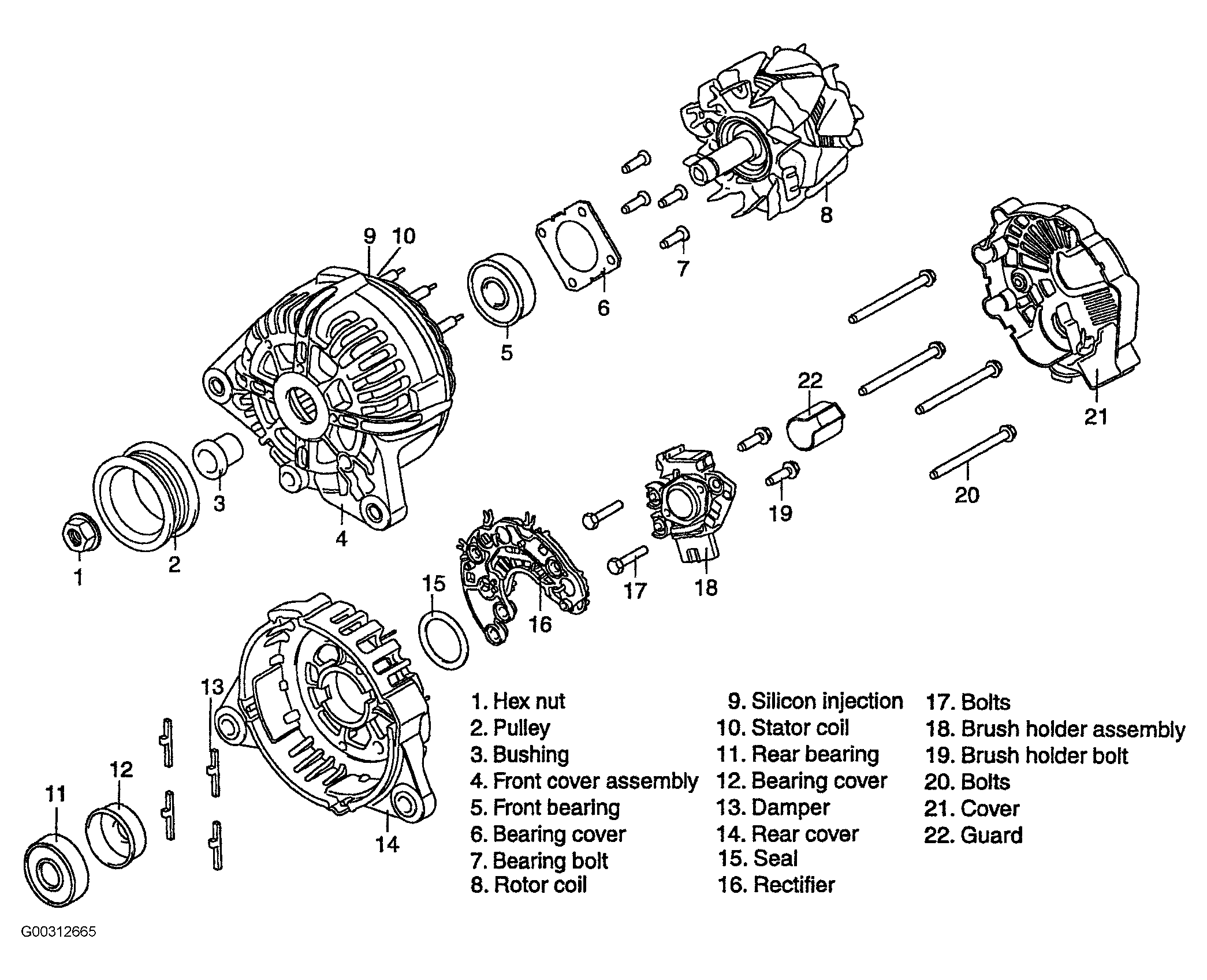

Fig 3: Exploded View Of Generator
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Removal Of Generator Cover
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the 3 mounting bolts, detach the brush holder assembly. See Fig 5.

Fig 5: Removal Of Brush Holder
Courtesy of KIA MOTORS AMERICA, INC.
Remove the nut, pulley, and spacer. See Fig 6.

Fig 6: Removal Of Nut, Pulley, And Spacer
Courtesy of KIA MOTORS AMERICA, INC.
Reassembly is the reverse of disassembly.
