Removal & Installation: Removal

  1. Disconnect negative battery cable.
  2. Remove door garnish.
    Fig 1: Removing Door Garnish
    G02534938Courtesy of KIA MOTORS AMERICA, INC.
    1. Unfasten garnish.
    2. Disconnect electrical connector.
  3. Remove inside handle cover.
    Fig 2: Removing Inside Handle Cover
    G02534939Courtesy of KIA MOTORS AMERICA, INC.
    1. Remove one screw.
    2. Unfasten inside handle cover.
  4. Remove door trim.
    1. Remove one screw from pull handle.
      Fig 3: Removing Pull Handle Screw
      G02534940Courtesy of KIA MOTORS AMERICA, INC.
    2. Remove two screws from right side of door trim.
      Fig 4: Removing Two Screws From Right Side Of Door Trim
      G02534941Courtesy of KIA MOTORS AMERICA, INC.
    3. Remove two screws and cover from left side of door trim.
    4. Remove two screws from bottom of door trim.
    5. Unfasten door trim.
    6. Disconnect electrical connector.
  5. Remove inside door handle assembly.
    Fig 5: Removing Inside Door Handle Assembly
    G02534942Courtesy of KIA MOTORS AMERICA, INC.
    1. Disconnect two remote control rods from door lock assembly.
    2. Remove two screws from inside door handle.
  6. Remove two screws from pull handle bracket.

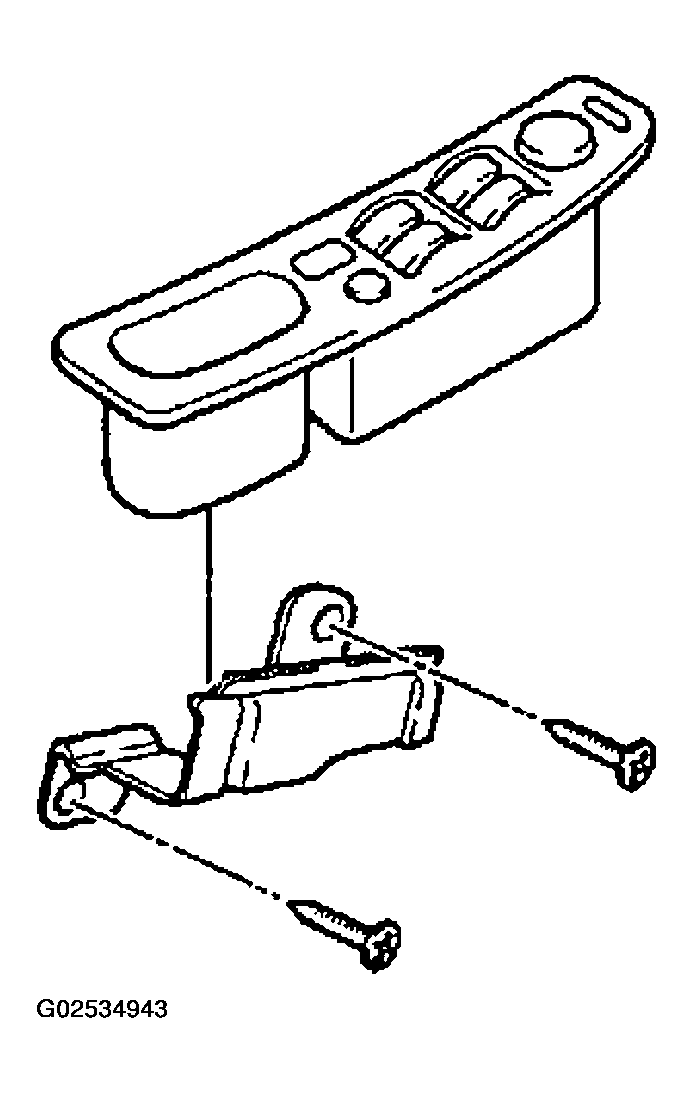

    Fig 6: Removing Two Screws From Pull Handle Bracket
    G02534943Courtesy of KIA MOTORS AMERICA, INC.
  7. Peel off plastic door screen carefully by pulling it away gradually from door frame.
    NOTE: Peel plastic moisture barrier off carefully so that it can be reused.
  8. Remove window glass.

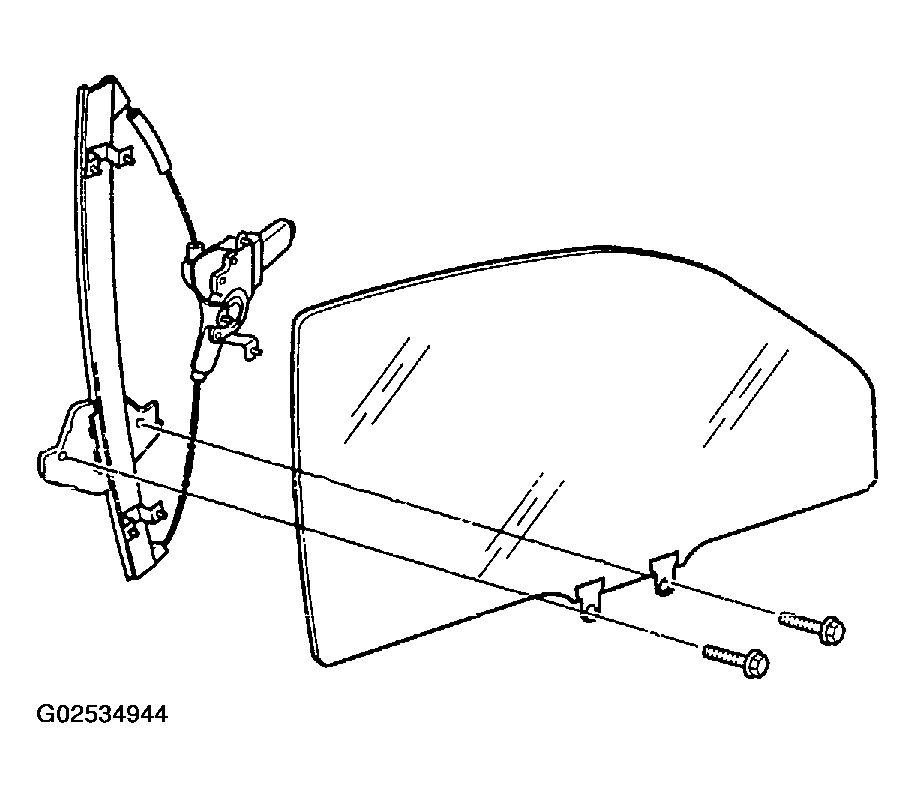

    Fig 7: Removing Window Glass
    G02534944Courtesy of KIA MOTORS AMERICA, INC.
    1. Reconnect window operating switch.
    2. Connect negative battery cable.
    3. Turn ignition "ON" and position window glass about halfway.
    4. Turn ignition "OFF".
    5. Remove glass run channel.
    6. Remove two glass mounting bolts from window regulator assembly.
    7. Remove glass carefully; hold glass from both its inner and outer surfaces. While tilting it toward hinge side of door, pull it out from outside door frame.
      Fig 8: Removing Glass
      G02534945Courtesy of KIA MOTORS AMERICA, INC.
    8. Disconnect negative battery cable.
  9. Remove regulator assembly.

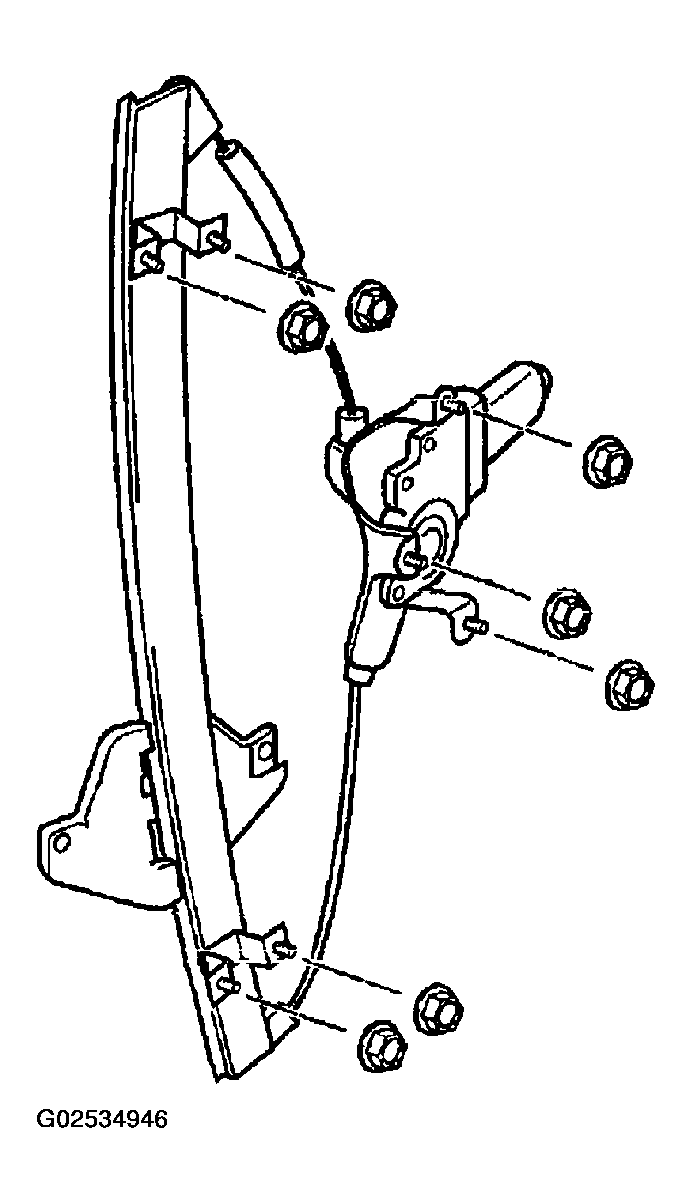

    Fig 9: Removing Regulator Assembly
    G02534946Courtesy of KIA MOTORS AMERICA, INC.
    1. Disconnect window regulator motor connector.
    2. Remove seven nuts from door frame.
    3. Remove window regulator assembly from out of access hole.
