Removal & Installation: Installation

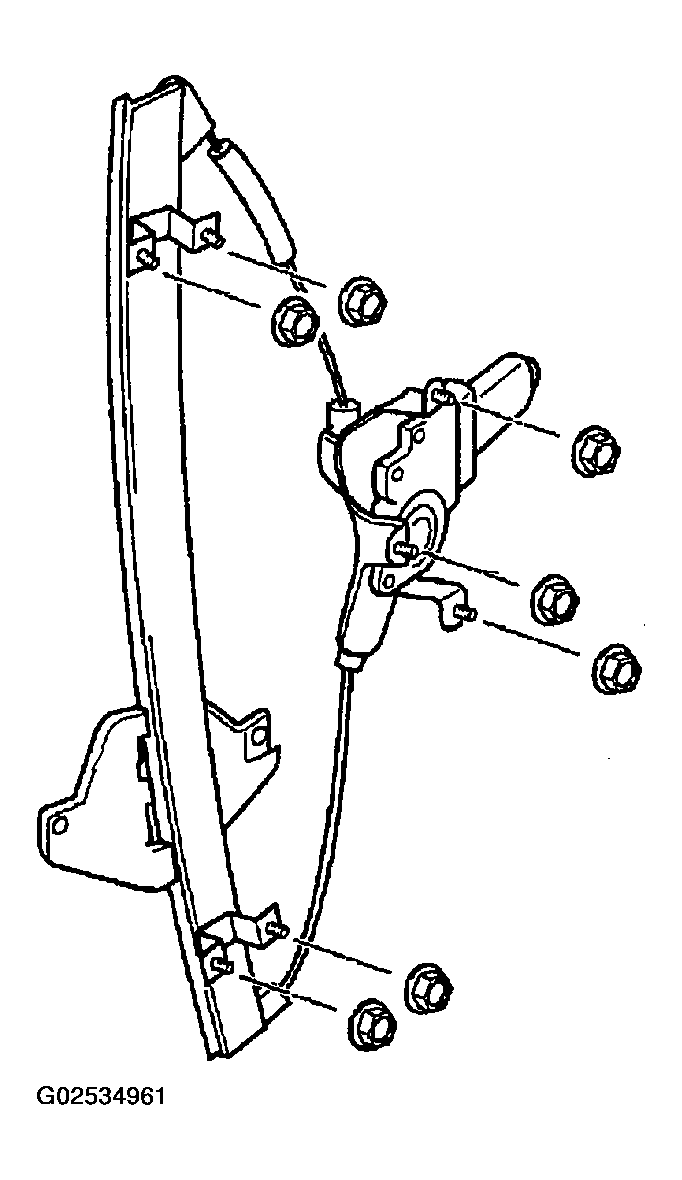

Fig 1: Installing Regulator Assembly

Courtesy of KIA MOTORS AMERICA, INC.

1. Position regulator assembly through access hole.
2. Install seven mounting nuts.
3. Connect electrical connector for motor of regulator assembly.

1. Position glass carefully: Hold glass from both its inner and outer surfaces. While tilting it towards hinge side of door, place it on small bracket on window regulator assembly.

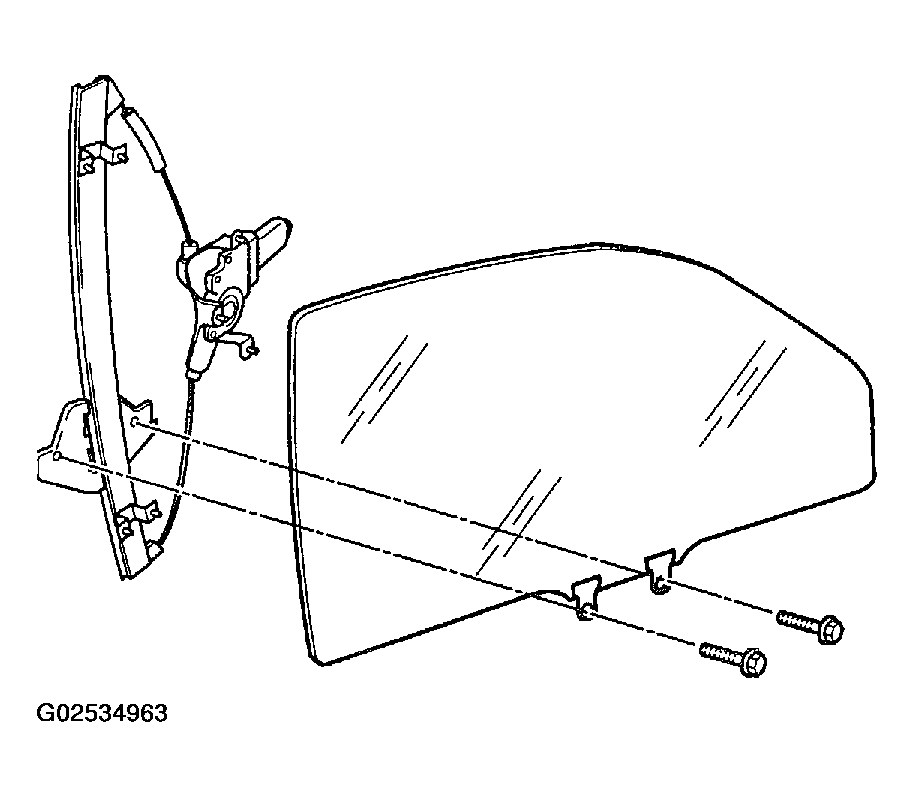

   Fig 2: Installing Window Glass

   Courtesy of KIA MOTORS AMERICA, INC.
2. Loosely install two glass mounting bolts on window regulator assembly.
   Fig 3: Installing Two Glass Mounting Bolts

   Courtesy of KIA MOTORS AMERICA, INC.
3. Reconnect window operating switch.
4. Connect negative battery cable.
5. Turn "ON" ignition and move glass up and down to ensure proper function.
6. Make adjustments as necessary.
7. Turn "OFF" ignition.
8. Disconnect window operating switch.
9. Disconnect negative battery cable.
10. Tighten two glass mounting bolts on power window regulator assembly.

Tighten two bolts to

8~12 N.m (80~120 kg-cm, 69~104 lb-in)

1. Fasten plastic door screen.
2. Pull out electrical harness connector from plastic door screen.
3. Pull out remote control rod for inside door handle from plastic door screen.

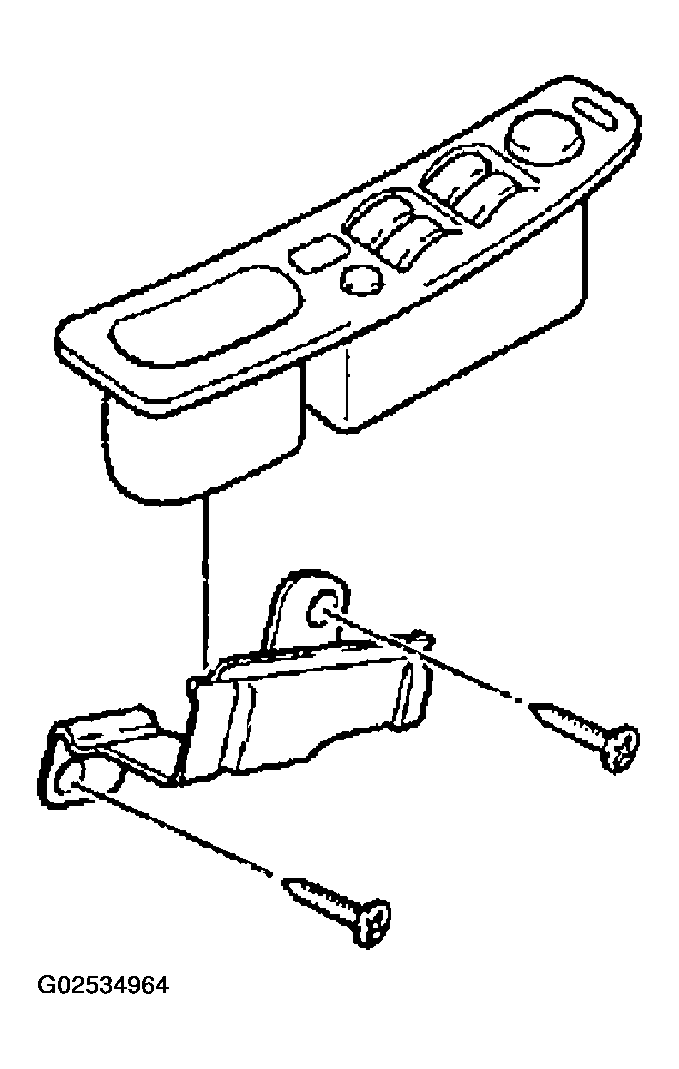

Fig 5: Installing Inside Door Handle Assembly

Courtesy of KIA MOTORS AMERICA, INC.

1. Install two mounting screws.
2. Connect two remote control rods of door lock assembly.

1. Connect electrical connector.
2. Place front door trim.
3. Install two screws on bottom of door trim.
   Fig 6: Installing Two Screws On Bottom Of Door Trim

   Courtesy of KIA MOTORS AMERICA, INC.
4. Install two screws and cover on left side of door trim.
5. Install two screws on right side of door trim.
6. Install one screw on pull handle bracket.

Fig 7: Installing Inside Handle Cover

Courtesy of KIA MOTORS AMERICA, INC.

1. Fasten inside handle cover.
2. Install one screw and cover.
