Home >> Kia >> 2003 >> Optima LX, 2.4 6, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Overhaul >> Disassembly & Reassembly >> Components

Disassembly & Reassembly: Components

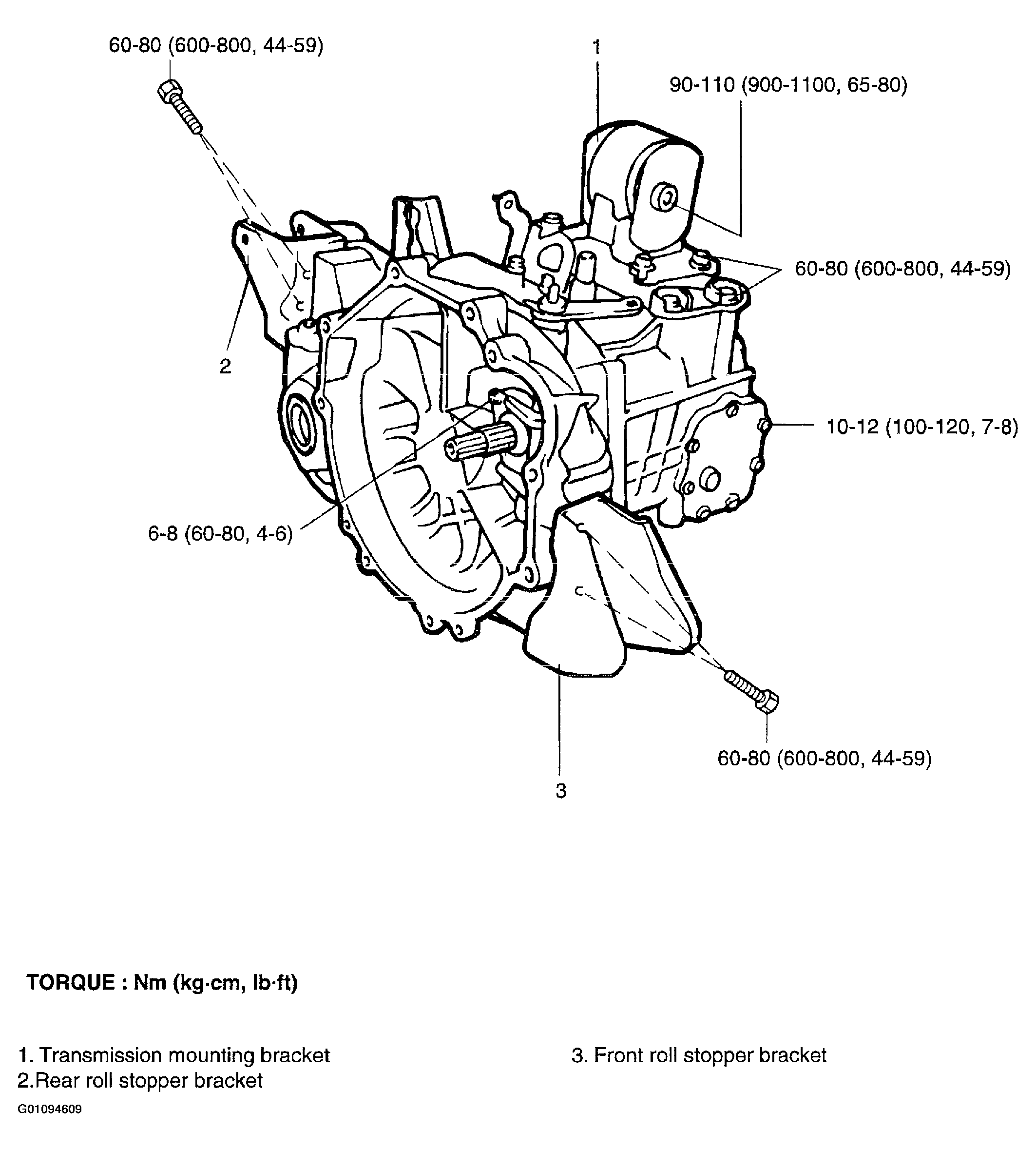

Fig 1: Illustrating Mounting Components

G01094609

Courtesy of KIA MOTORS AMERICA, INC.

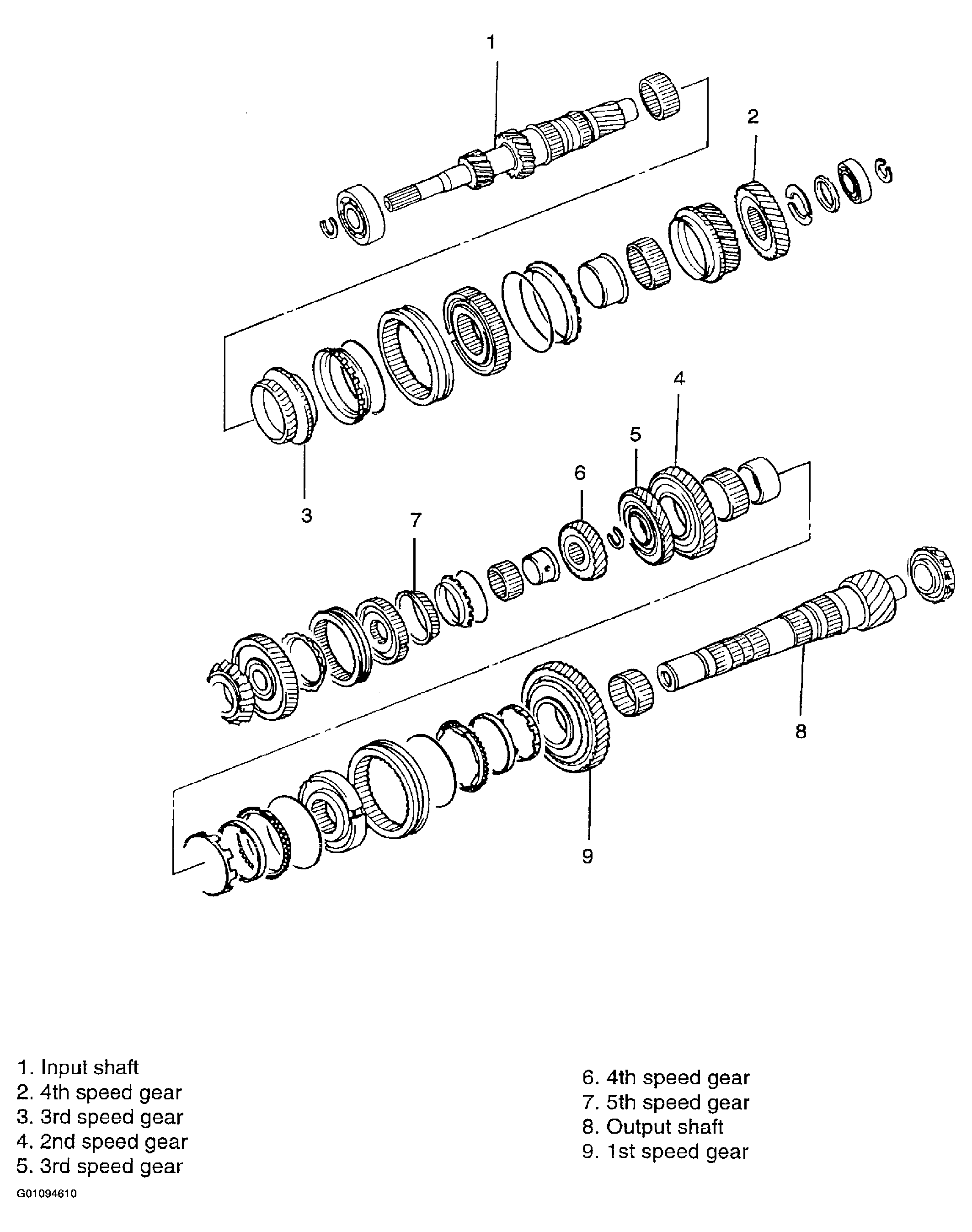

Fig 2: Illustrating Input/Output Shaft Components

G01094610

Courtesy of KIA MOTORS AMERICA, INC.
