Vehicle Speed Sensor

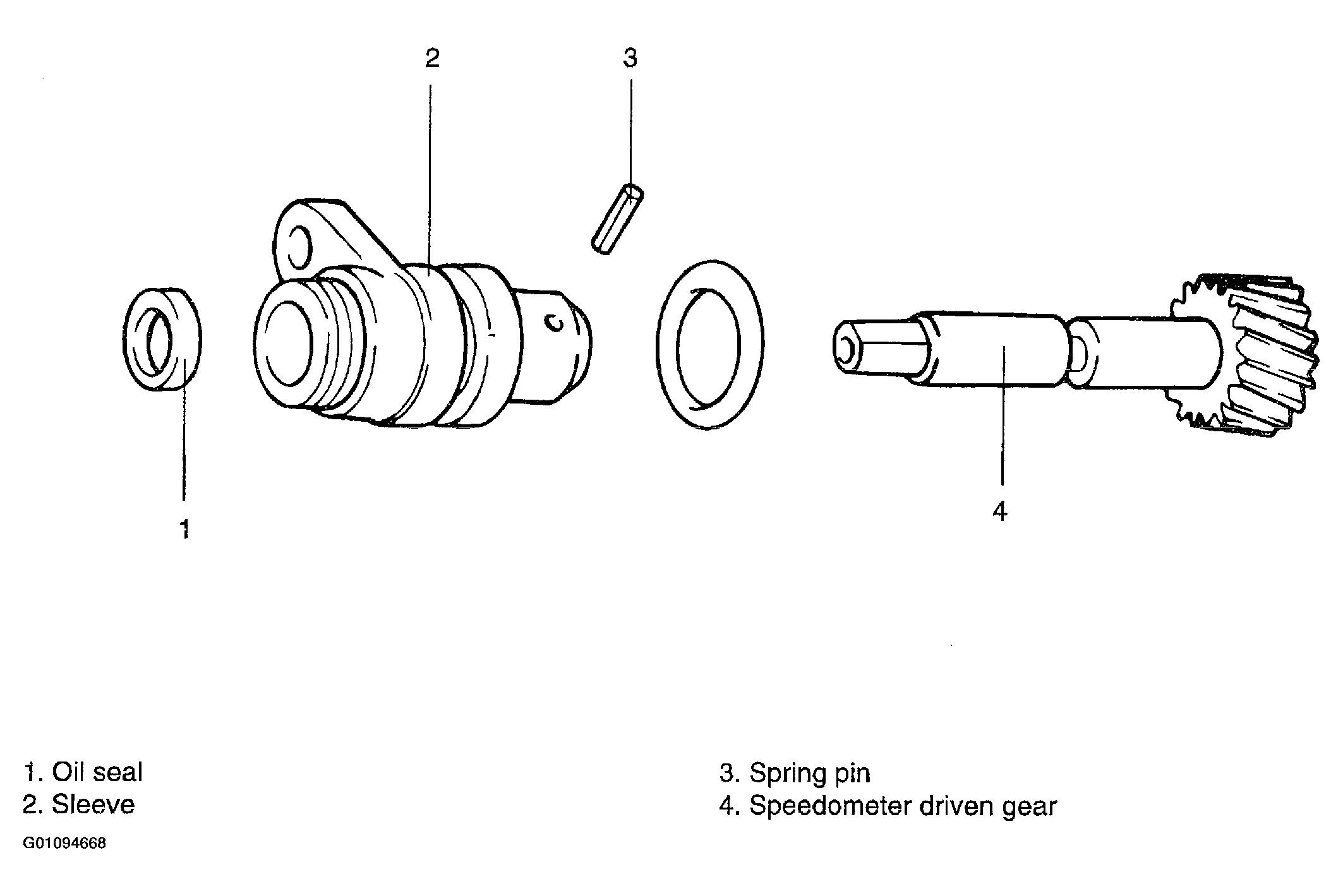

Fig 1: Illustrating Vehicle Speed Sensor
G01094668Courtesy of KIA MOTORS AMERICA, INC.
  1. Apply gear oil sparingly to the speedometer driven gear shaft and insert the shaft.
  2. Install the spring pin in such a way the slit does not face the gear shaft.
    Fig 2: Installing Spring Pin
    G01094669Courtesy of KIA MOTORS AMERICA, INC.
