Output Shaft: Reassembly

Install the needle roller bearing.

Fig 1: Installing The Needle Roller Bearing
Courtesy of KIA MOTORS AMERICA, INC.
Install the 1st speed gear.

Fig 2: Installing The 1st Speed Gear
Courtesy of KIA MOTORS AMERICA, INC.

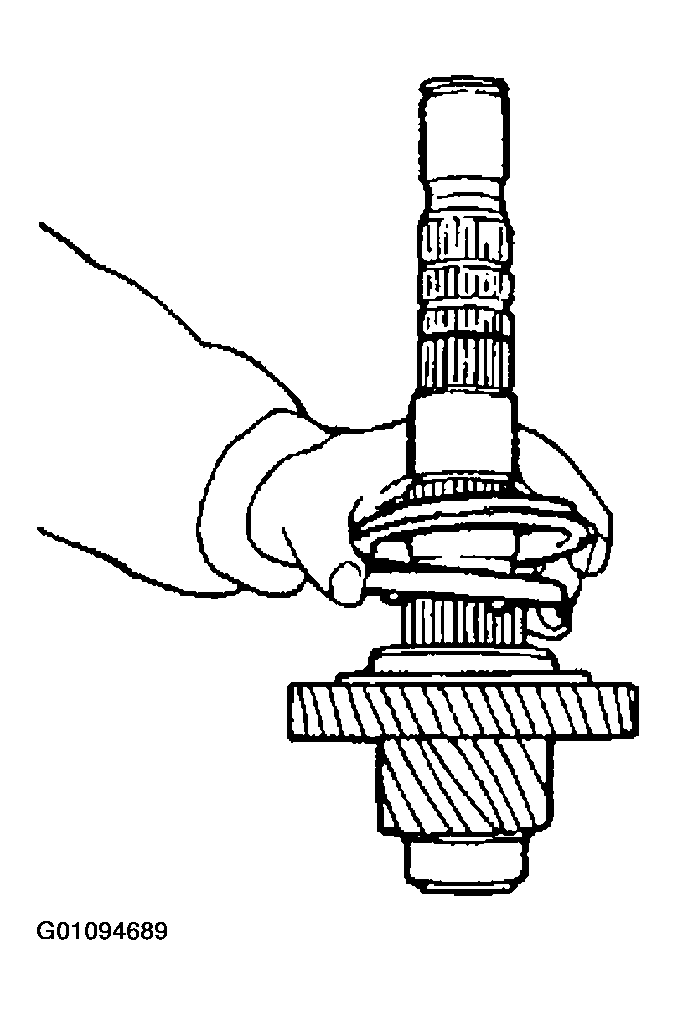

Install the triple cone assembly.

Fig 3: Installing The Triple Cone Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Install the synchronizer sleeve and hub.

Fig 4: Installing The Synchronizer Sleeve And Hub
Courtesy of KIA MOTORS AMERICA, INC.
Install the triple cone assembly.

Fig 5: Installing The Triple Cone Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Install the 2nd speed sleeve and the needle roller bearing.

Fig 6: Installing The 2nd Speed Sleeve And The Needle Roller Bearing
Courtesy of KIA MOTORS AMERICA, INC.

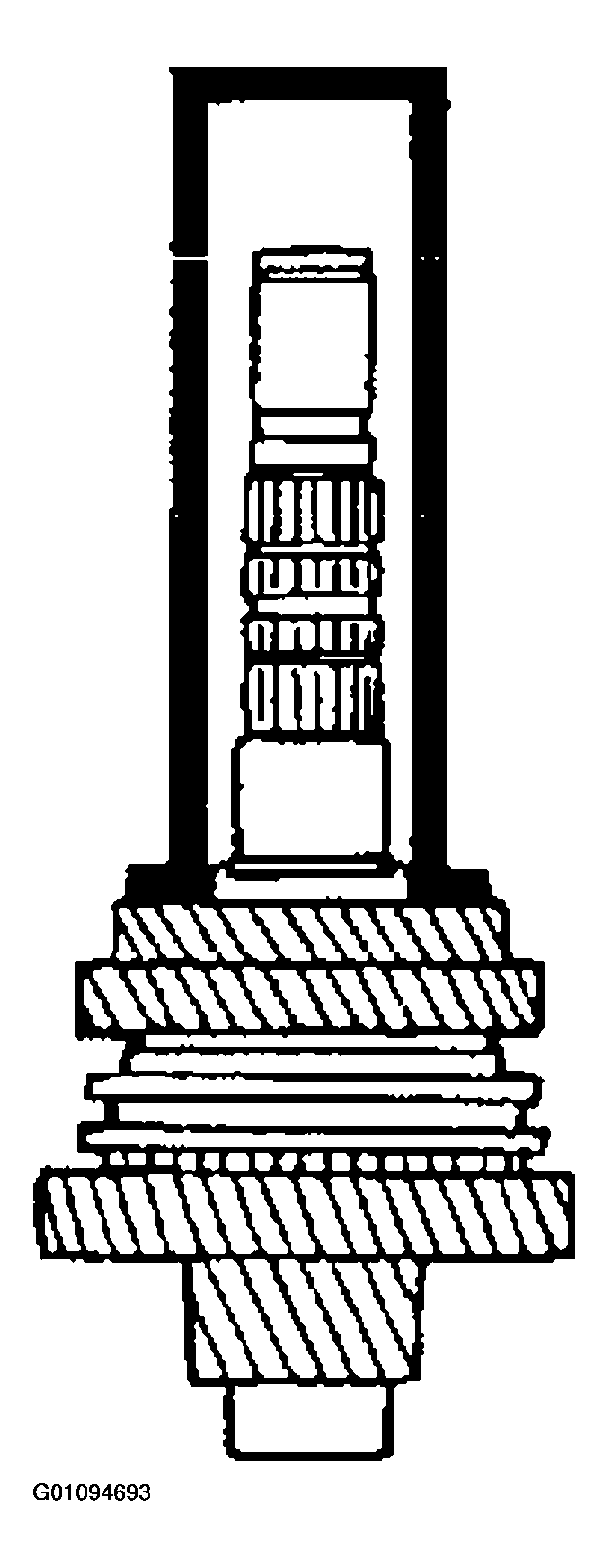

Install the 2nd and 3rd speed gear with all together above mentioned using the special tool (09432-22000).

Fig 7: Installing The 2nd And 3rd Speed Gear
Courtesy of KIA MOTORS AMERICA, INC.
Install the snap ring.

Fig 8: Installing The Snap Ring
Courtesy of KIA MOTORS AMERICA, INC.

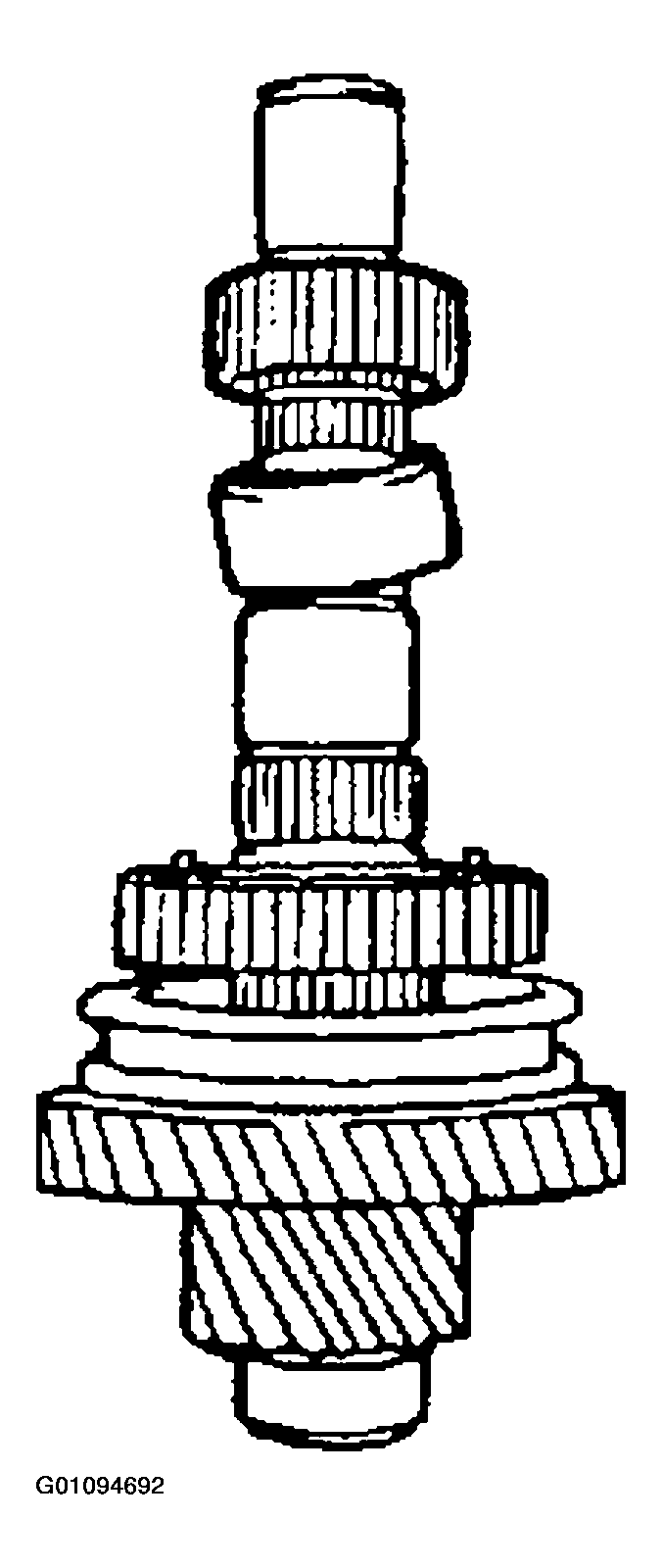

Install the 4th speed gear, the 5th speed gear sleeve, the needle roller bearing, the 5th speed gear, the synchronizer ring (5th), the synchronizer hub and the sleeve (5 & R).

Fig 9: Installing 4th & 5th Gear Assemblies
Courtesy of KIA MOTORS AMERICA, INC.

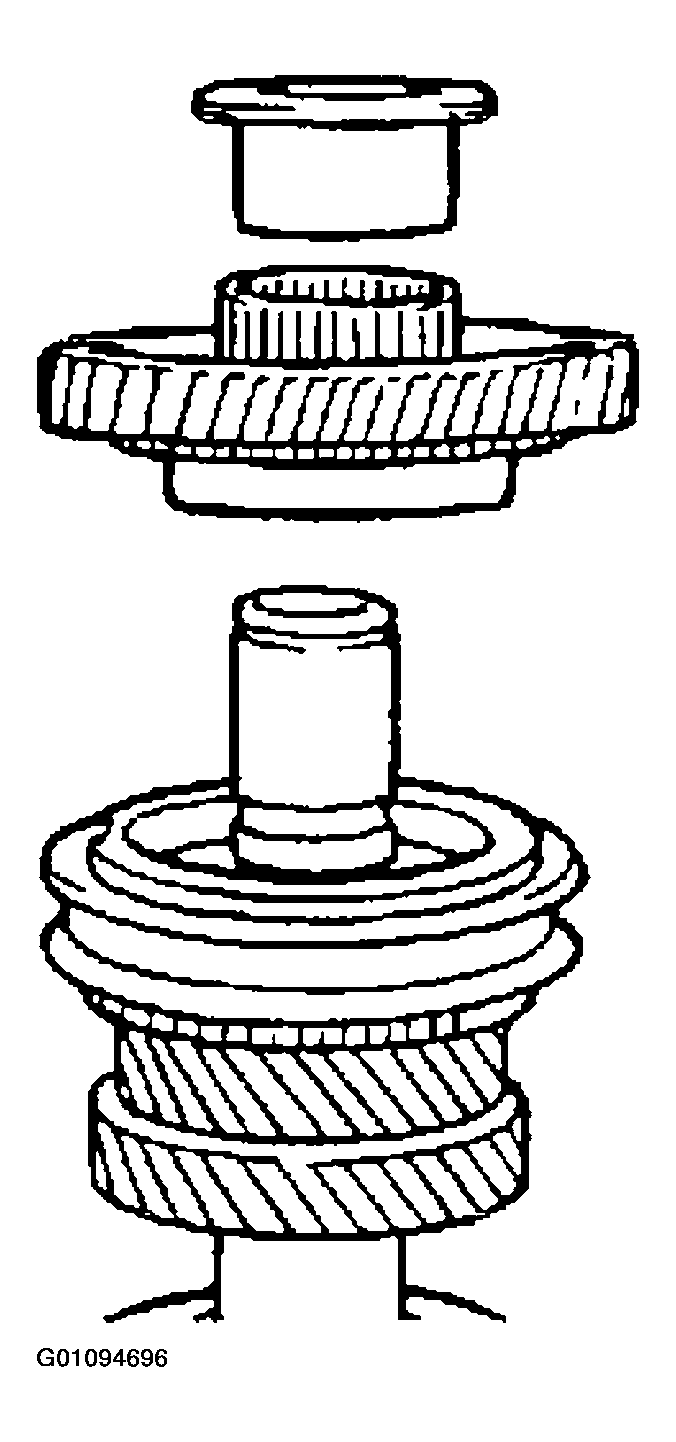

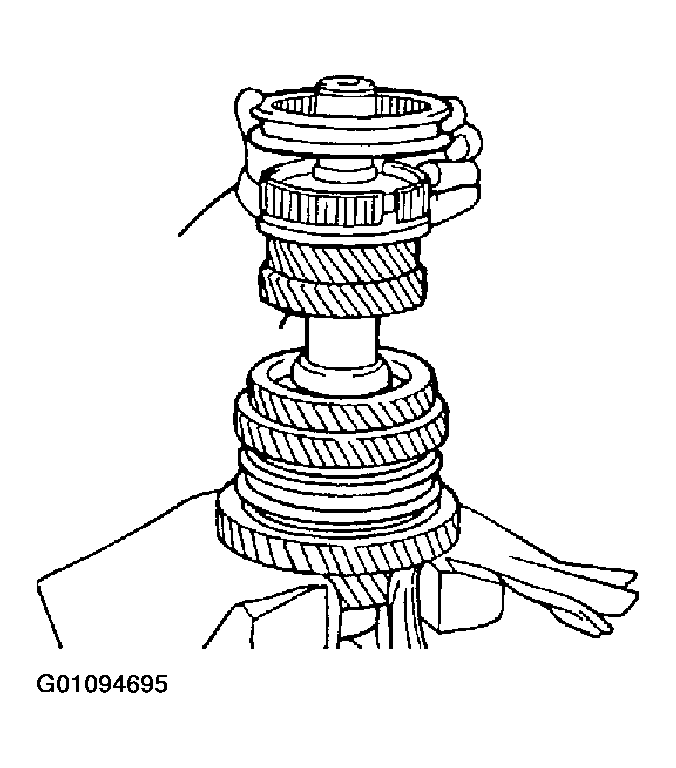

Install the needle roller bearing, the reverse gear assembly and the reverse driven gear sleeve.

Fig 10: Installing Needle Roller Bearing, Reverse Gear Assembly & Reverse Driven Gear Sleeve
Courtesy of KIA MOTORS AMERICA, INC.

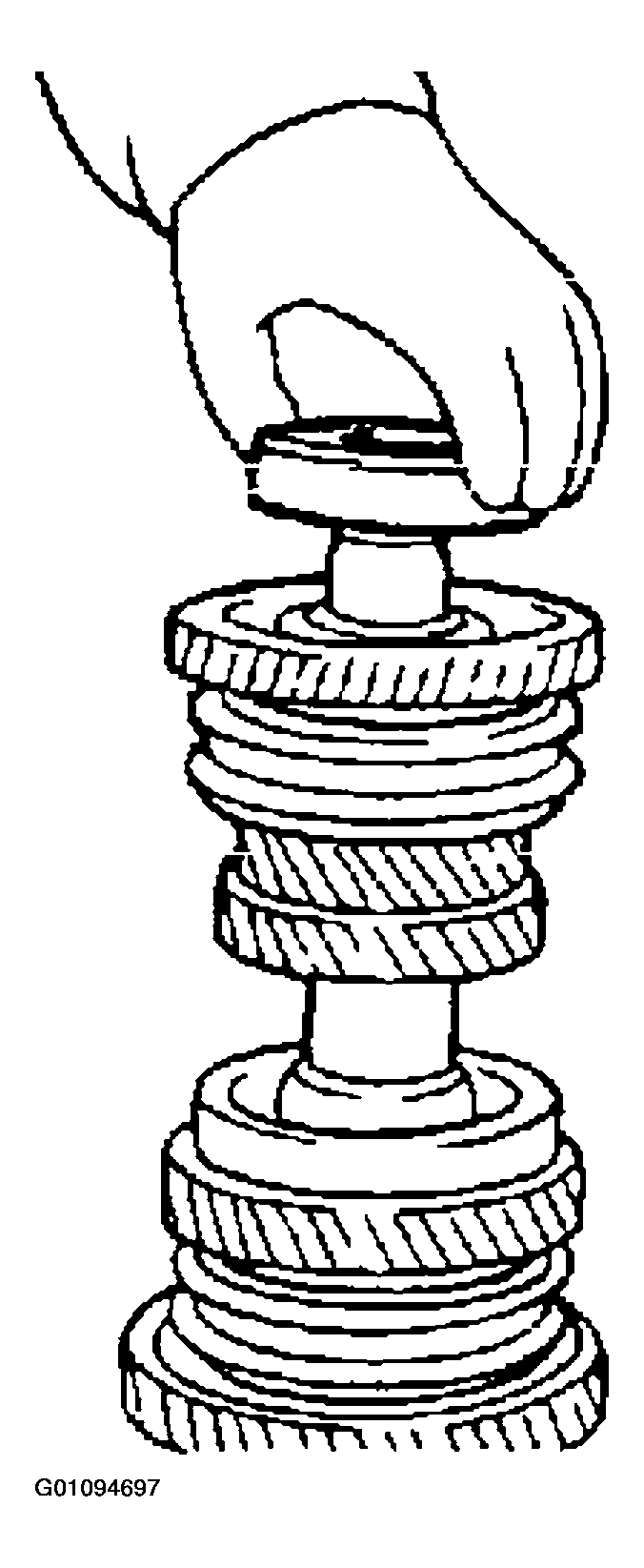

Install the taper bearing with all together above mentioned using the special tool (09432-22000).

Fig 11: Installing The Taper Bearing
Courtesy of KIA MOTORS AMERICA, INC.
