Output Shaft: Disassembly

Remove the taper bearing and the reverse gear using the special tool (03495-33000).

Fig 1: Removing The Taper Bearing And The Reverse Gear
Courtesy of KIA MOTORS AMERICA, INC.
Remove the synchronizer ring, synchronizer spring (5th & Rev), sleeve (5th & Rev).

Fig 2: Removing The Synchronizer Ring and Synchronizer Spring
Courtesy of KIA MOTORS AMERICA, INC.

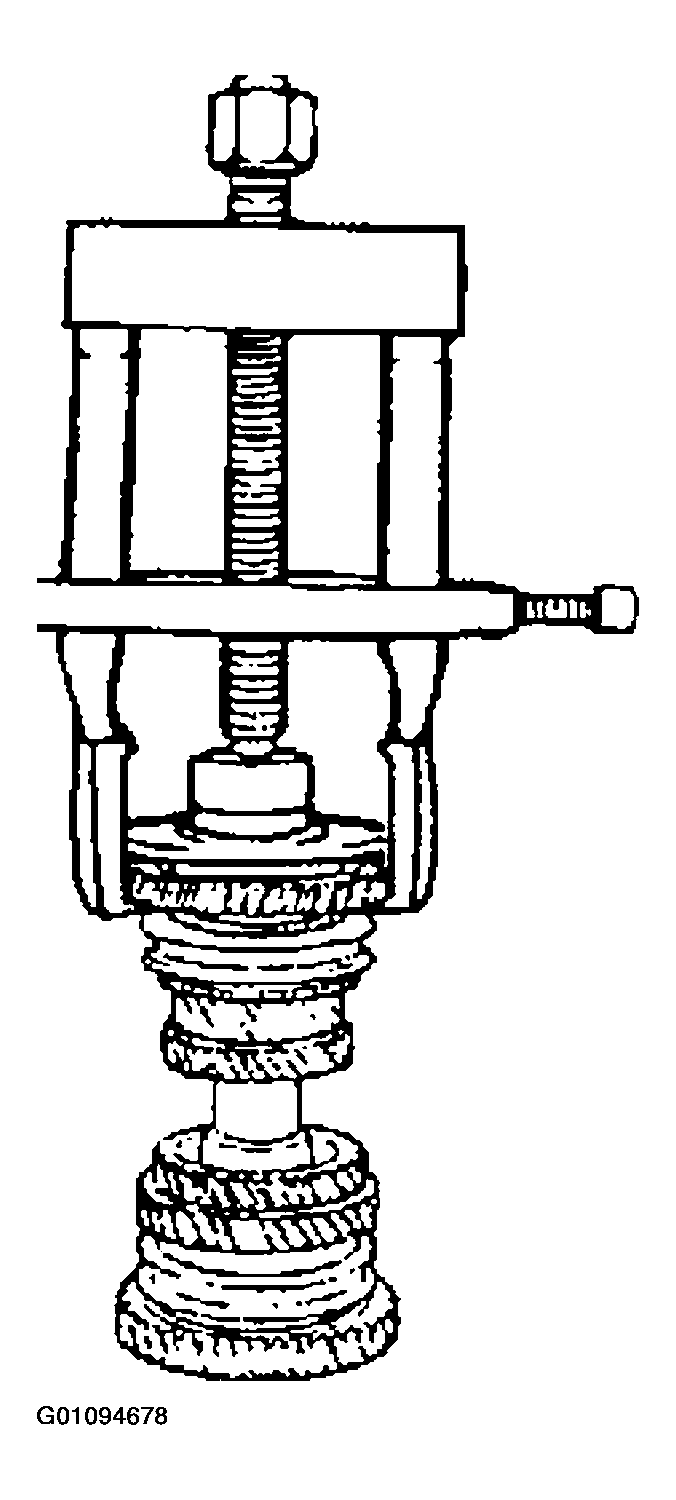

Remove the synchronizer hub and the 5th gear using the special tool (03495-33000).

Fig 3: Removing The Synchronizer Hub And The 5th Gear
Courtesy of KIA MOTORS AMERICA, INC.

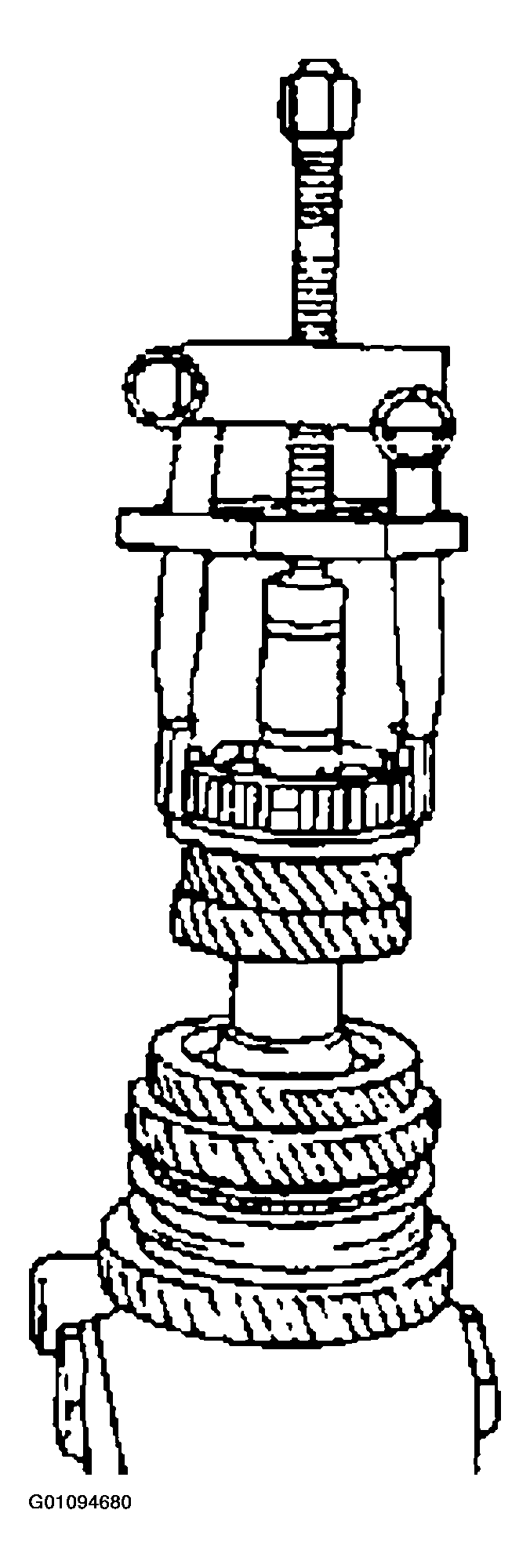

Remove the 4th, 3rd, 2nd and 1st gear all together the special tool (09432-33200).

Fig 4: Removing The 4th, 3rd, 2nd & 1st Gears
