Input Shaft: Disassembly

  1. Remove the snap ring and the ball bearing using the special tool (09432-21300).

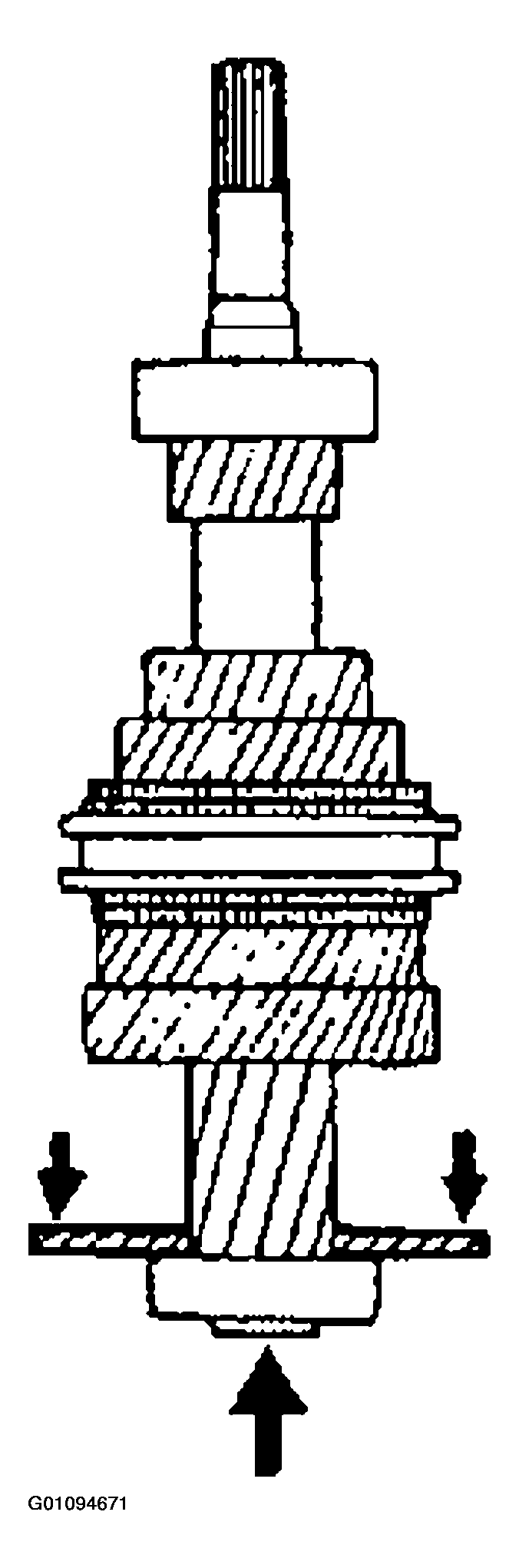

    Fig 1: Removing The Snap Ring And The Ball Bearing
    G01094671Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the stopper snap ring, snap ring, 5th and 4th speed gear, needle roller bearing, 4th speed gear sleeve, synchronizer ring (3rd & 4th), synchronizer spring (1st, 2nd, 3rd, 4th), synchronizer sleeve (3rd & 4th), 3rd speed gear and needle roller bearing.

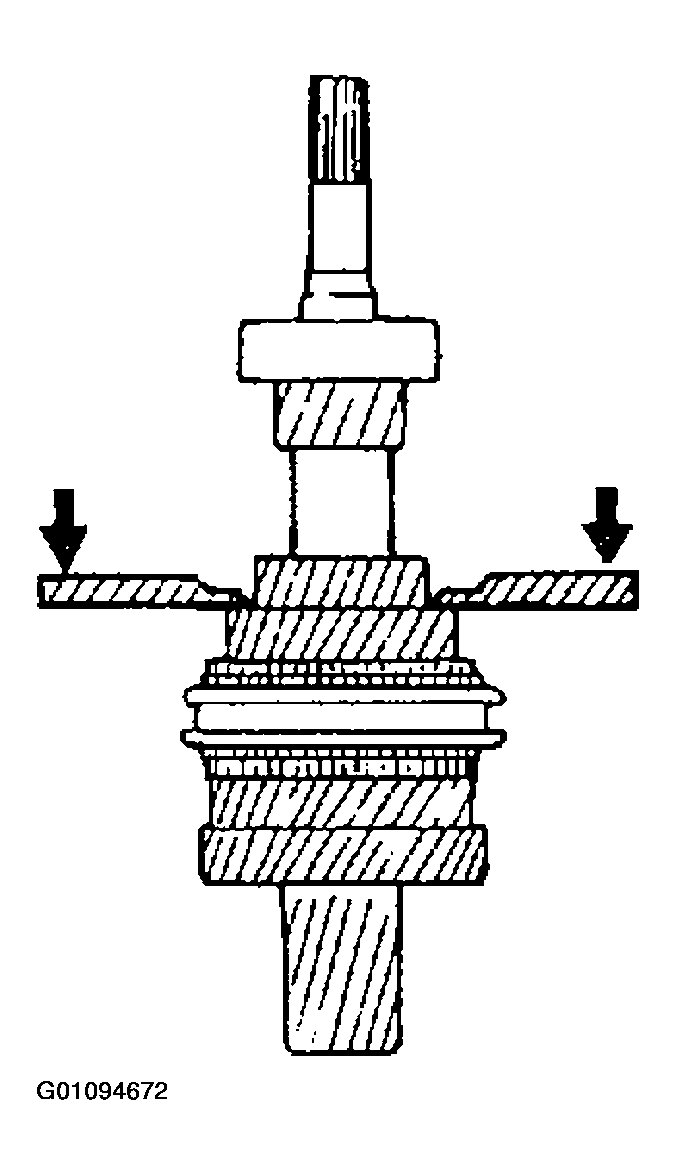

    Fig 2: Removing 1st Through 5th Components
    G01094672Courtesy of KIA MOTORS AMERICA, INC.
