Optima 2.4L ECM Reprogramming (ENG023)

Publication date: 2005-10-01
Reference number: ENG023

OPTIMA 2.4L ECM REPROGRAMMING

OPTIMA 2.4L ECM REPROGRAMMING

TECHNICAL SERVICE BULLETIN

Reference Number(s): ENGINE 023, Date of Issue:  October 01, 2005
KIA: Optima
VOLUME: 3
GROUP: Engine

SUBJECT

This bulletin provides information relating to an Optima ECM upgrade. Some 2003 ~ 2005MY Optima vehicles may experience hesitation for a short period of time after an initial cold start.

Use the procedures in this bulletin to reprogram the Engine Control Module (ECM) software for 2003 ~ 2005MY Optima vehicles with 2.4L engines to resolve this cold hesitation concern.

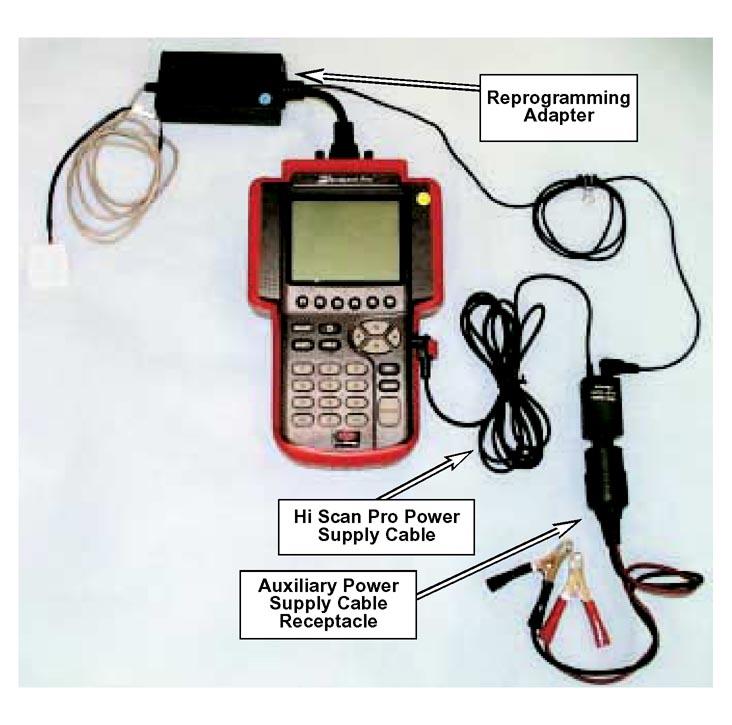

Fig 1: Identifying Kia Service Information Kit
G04118579

Use the 32MB blue reprogramming card that was sent to your dealer October 2004. Download the latest Hi-Scan Pro reprogramming software for the 32MB (blue label) reprogramming card from the Kia Service Information System (KSIS). The "Downloads" page is accessed by first logging onto KSIS, then by clicking on the "Downloads" link located in KSIS News Center. Dealers can also order a CD (optional) by calling 866 KIA-TOOLS and ordering P/N 111321KM.

NOTE:
  • A fully charged battery is necessary before reprogramming can take place. DO NOT connect a battery charger to the vehicle during reprogramming. Make sure the blower motor is 'OFF' during programming.
  • All reprogramming must be done with the ignition key in the 'ON' position.
  • Be careful not to disconnect any cables connected to the vehicle or Hi-Scan Pro during the reprogramming procedure.
  • DO NOT start the engine during reprogramming.
  • DO NOT turn the ignition key 'OFF' or interrupt the power supply during reprogramming.
  • When the reprogramming is completed, turn the ignition key 'OFF' and wait 20 seconds before starting the engine.
  • ONLY use approved reprogramming software designated for the correct model, year and engine size. Failure to do so may create other drivability issues due to the use of the incorrect ECM/PCM calibration.

ECM ROM ID INFORMATION TABLE

ECM ROM ID INFORMATION TABLE

Model Year Mass Air Flow Sensor Type Transaxle Type ECM - P/N ECM ROM ID
Previous New
2003 CL Type P/N; 28164 38210 Manual 39121 38610 EH9508-F0 EH9317-F2
EH9317-F1
Automatic 39121 38620 EH8318-F0 EH8318-F2
EH8318-F1
SL Type P/N: 28164 38080 Manual 39122 38660 EH9508-F EH9508-F1
Automatic 39122 38670 EH8510-F0 EH8510-F1
2004 28164 38210 Manual 39122 38700 EH8510-F0 EH9633-F2
EH9633-F1
Automatic 39122 38710 EH8635-F0 EH8635-F2
EH8635-F1
2005 28164 38210 Manual 39115 38080 EH9677-F1 EH9677-F4
EH9677-F2
Automatic 39115 38090 EH8679-F1 EH8679-F4
EH8679-F2

AUTOMATIC REPROGRAMMING PROCEDURE

  1. Remove the system software card from the Hi-Scan Pro and insert the blue reprogramming software card with the new ECM program into the Hi-Scan Pro upper slot.

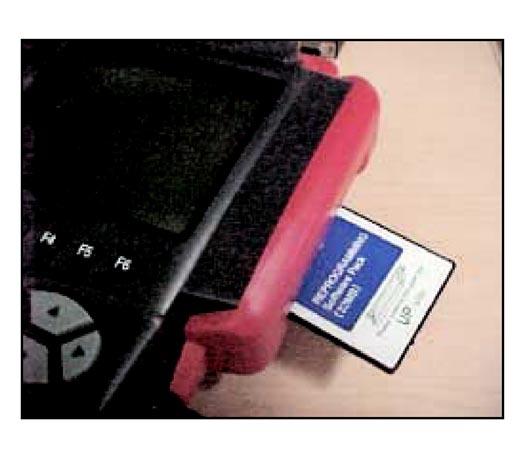

    Fig 2: Removing System Software Card From Hi-Scan Pro
    G04118580
  2. Install the reprogramming adapter to the Hi-Scan Pro.

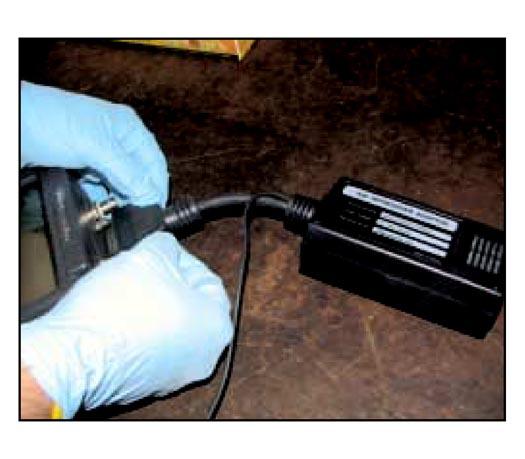

    Fig 3: Installing Reprogramming Adapter To Hi-Scan Pro
    G04118581
  3. Connect the power cables to the vehicle's battery and plug the reprogramming adapter into the underhood 20-pin DLC connection.

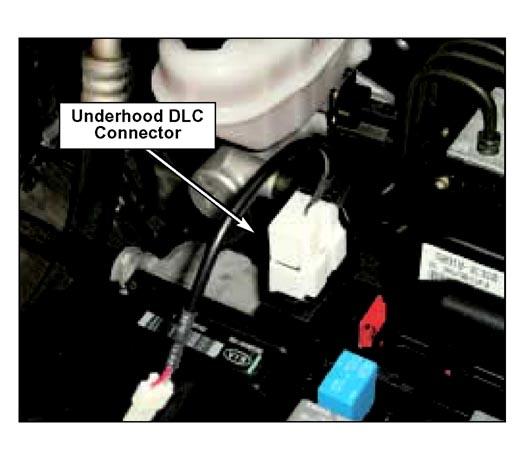

    Fig 4: Plugging Reprogramming Adapter Into Underhood 20-Pin DLC Connection
    G04118582
  4. Turn the ignition switch to the ON position.

    Turn the Hi-Scan Pro ON and press ENTER. Select option #29 "MS 2.4 Cold Hesitation" and press ENTER.

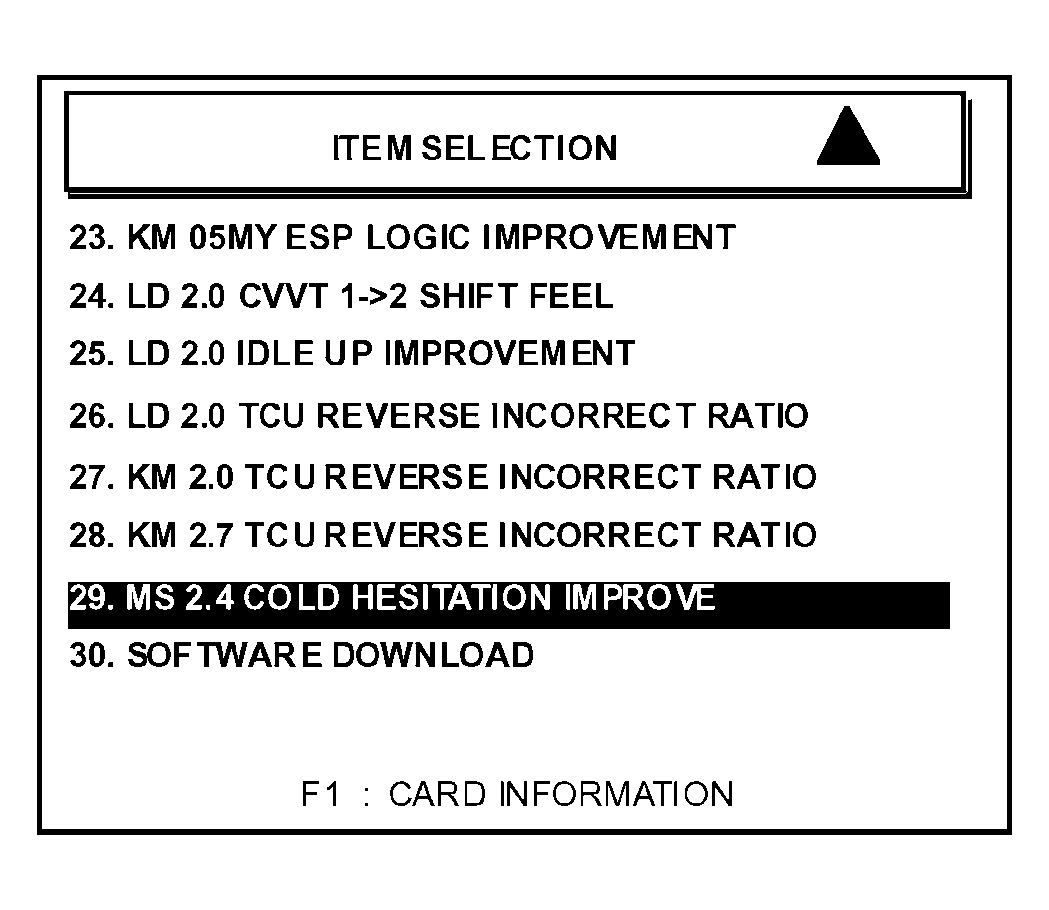

    Fig 5: ITEM SELECTION Display
    G04118583
  5. Select option "MS 2.4 Cold Hesitation [AUTO]" and press ENTER.
    6. Fig 6: RE-PROGRAMMING Display
    G04118584
  6. Enter "0525" as the password for automatic reprogramming mode and press ENTER.

    The Hi-Scan Pro will establish communication, check the ECM ID and reprogram the ECM. urn the ignition key OFF and ON in accordance with the directions displayed on the Hi-Scan Pro Screen.

  7. When "REPROGRAMMING is COMPLETED" message is displayed, turn the Hi-Scan Pro OFF.
  8. Turn the ignition key OFF for about 20 seconds and then start the engine to confirm proper operation of the vehicle.
  9. Check for diagnostic trouble codes using the Hi-Scan Pro with system software card and erase any trouble codes.

Reflash Programming Notes:

MANUAL REPROGRAMMING PROCEDURE

  1. Turn the ignition switch to the ON position.
    • Turn the Hi-Scan Pro ON and press ENTER.
    • Select option #29 "MS 2.4 Cold Hesitation" and press ENTER.
    • Select option "MS Cold Hesitation [ERROR]" and press ENTER.
  2. Choose the correct vehicle reference and press ENTER.
    NOTE: U.S. Spec. Optima vehicles do not have immobilizer systems. Disregard + IMMO selections on Hi Scan Pro screen; select appropriate option from the - IMMO choices.

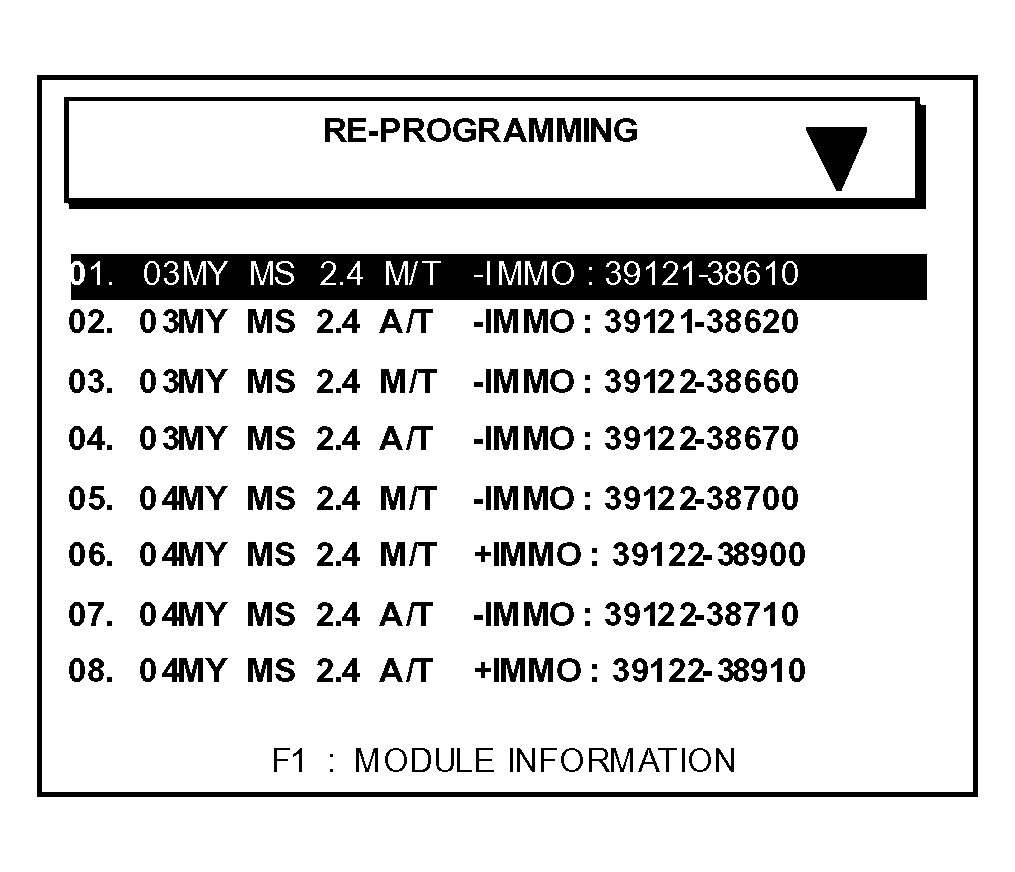

    Fig 7: RE-PROGRAMMING Display (M/T)
    G04118585

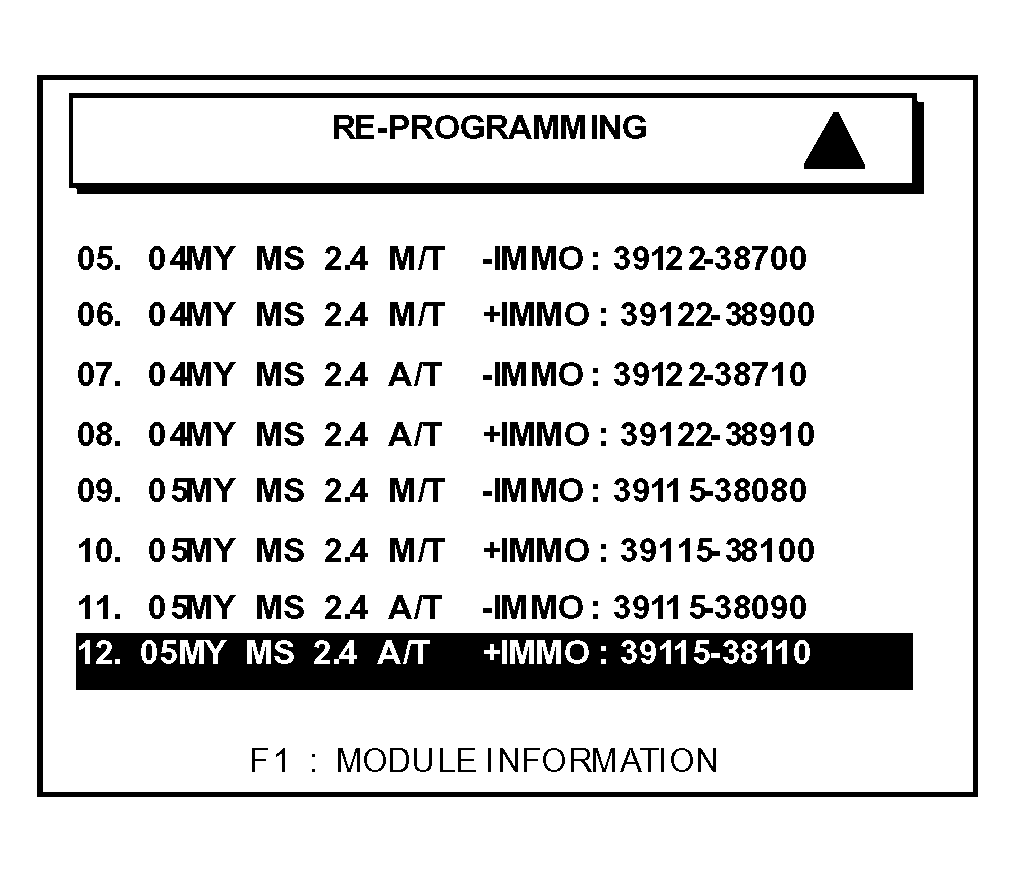

    Fig 8: RE-PROGRAMMING Display (A/T)
    G04118586

    Manual Reflash Programming Notes:

    • The Hi-Scan Pro displays the new ECM ID on the Hi-Scan Pro screen.
    • Check the ECM ID displayed on the Hi-Scan Pro screen to verify that the correct ECM software is being downloaded. Refer to "ECM ROM ID INFORMATION TABLE .
  3. Enter the password that is correct for your vehicle for manual reprogramming and press ENTER.
    PASSWORD TABLE

    Model Year Air Flow Sensor Type Transmission ECU P/N Password
    2003 CL Type P/N 28164 38210 M/T 39121 38610 8610
    A/T 39121 38620 8620
    SL Type P/N 28164 38080 M/T 39122 38660 8660
    A/T 39122 38670 8670
    2004 - M/T 39122 38700 8700
    39122 38900 8900
    A/T 39122 38710 8710
    39122 38910 8910
    2005 - M/T 39115 38080 8080
    39115 38100 8100
    A/T 39115 38090 8090
    39115 38110 8110
  4. The Hi-Scan Pro will establish communication, check the ECM ID and reprogram the ECM.

    Turn the ignition key OFF and ON in accordance with the directions displayed on the Hi-Scan Pro screen.

  5. When "REPROGRAMMING COMPLETED" message is displayed, turn the Hi-Scan Pro OFF.
  6. Turn the ignition key OFF for about 20 seconds and start the engine to confirm proper operation of the vehicle.
  7. Check for diagnostic trouble codes using the Hi-Scan Pro with system software card and erase any trouble codes.

WARRANTY CLAIM INFORMATION

WARRANTY CLAIM INFORMATION

Model Year Claim Type Causal P/N Qty. Cond. Code Cause Code Repair Description Labor OP Code Time Related Parts Qty.
2003 w/CL type MAF W 39121 38610
39121 38620		 0 N03 C40 ECM Reprogramming 39121F00 0.3 N/A 0
2003 W/SL type MAF & 2004 W 39122 38660
39122 38670
39122 38700
39122 38710		 0 N03 C40 ECM Reprogramming 39122F00 0.3 N/A 0
2005 W 39115 38080
39115 38090		 0 N03 C40 ECM Reprogramming 39115F00 0.3 N/A 0
