Tightening Torque

WARNING: Always follow torque tightening levels. Failure to follow such levels can result in parts breaking if over tightened or loosening if under-tightened. In either case, serious personal injury or death could result to the vehicle occupants.

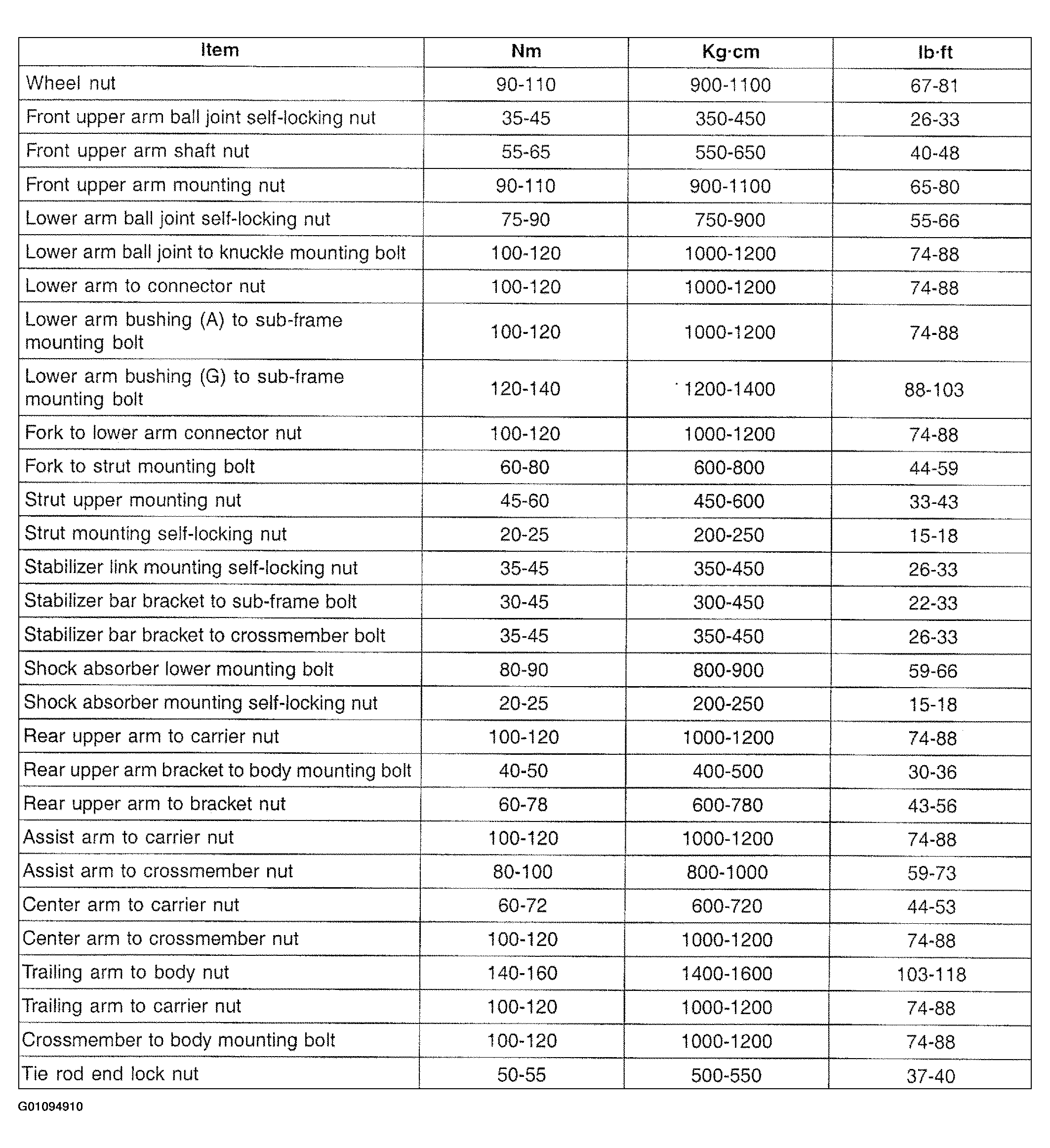

Fig 1: Fastener Tightening Torque Specifications Table
G01094910Courtesy of KIA MOTORS AMERICA, INC.
