Home
>>
Kia
>>
2003
>>
Magentis SE, 2.4 6
>>
Repair and Diagnosis
>>
Suspension
>>
Front Suspension
>>
General
>>
Specifications
>>
Front Suspension System
Front Suspension System

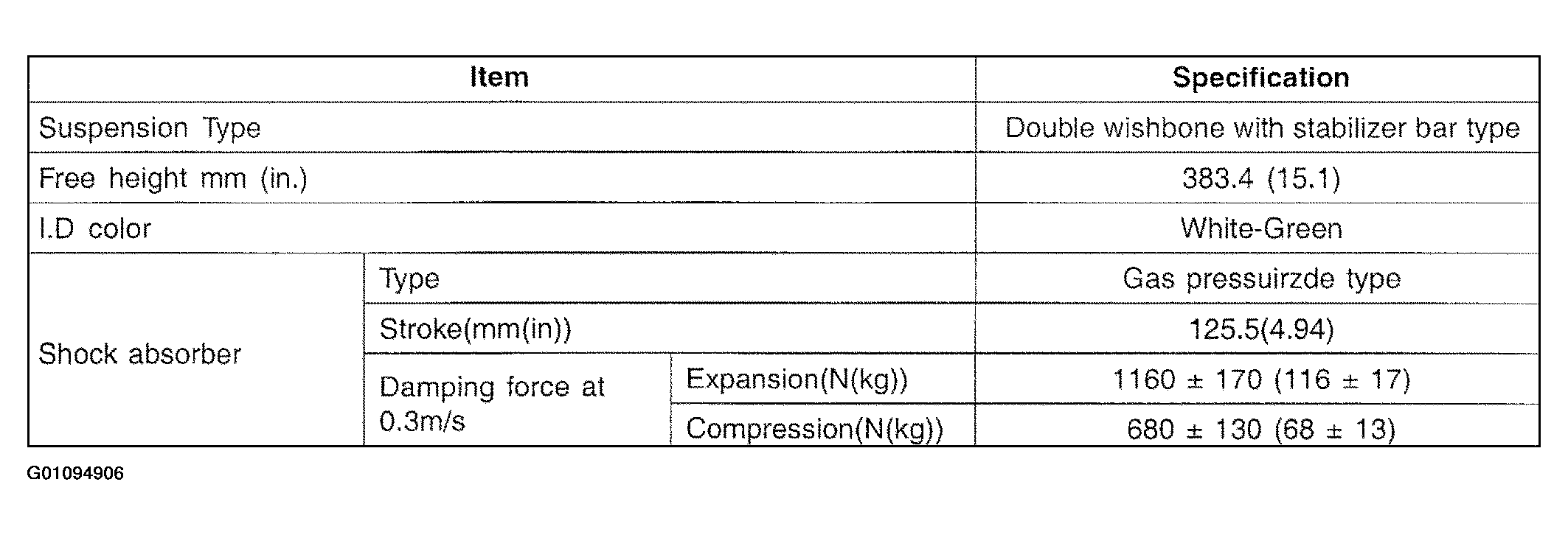

Fig 1: Identifying Front Suspension Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
