Home
>>
Kia
>>
2003
>>
Magentis SE, 2.4 6
>>
Repair and Diagnosis
>>
Suspension
>>
Front Suspension
>>
General
>>
Special Service Tools
Special Service Tools

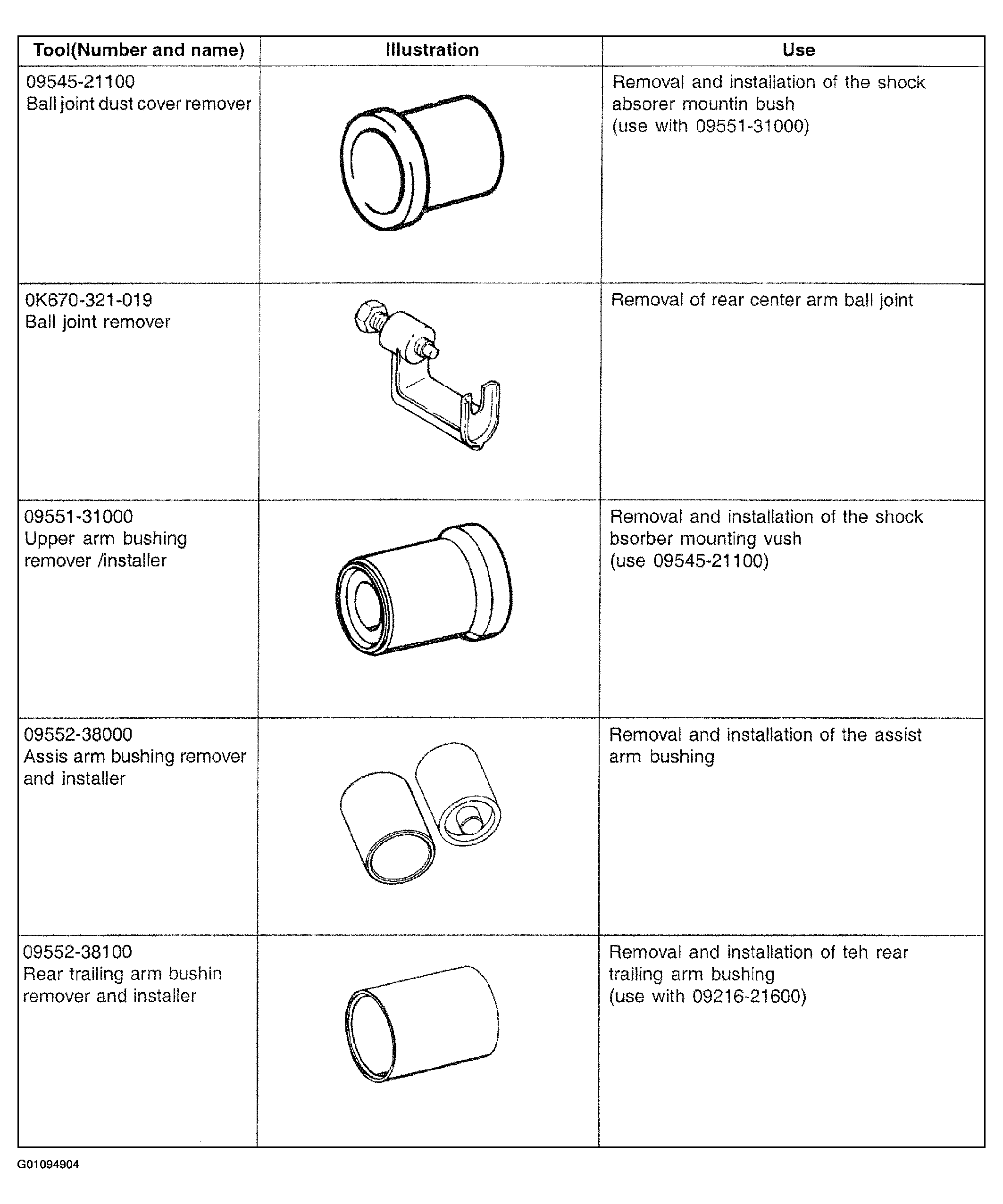

Fig 1: Identifying Special Tools (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

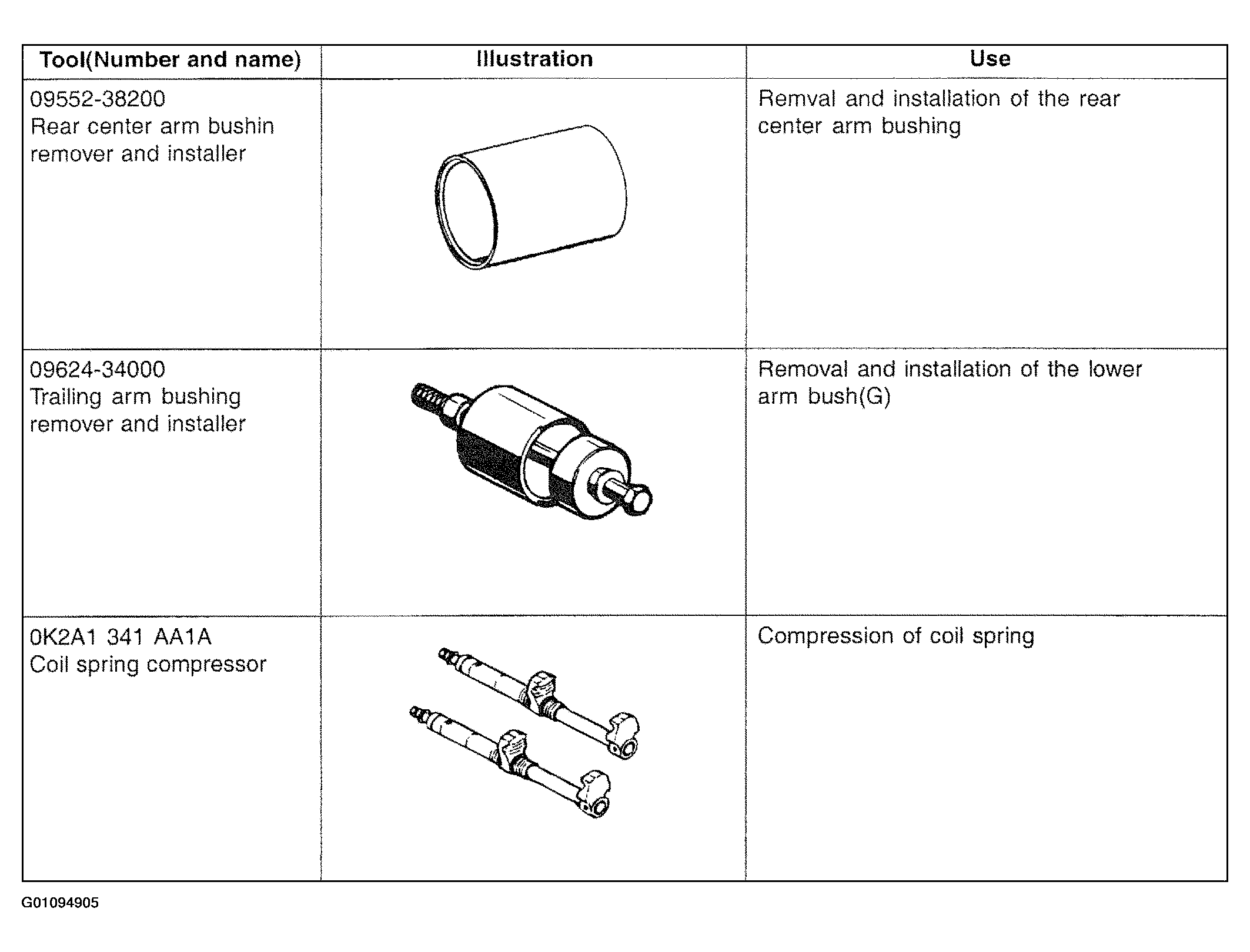

Fig 2: Identifying Special Tools (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

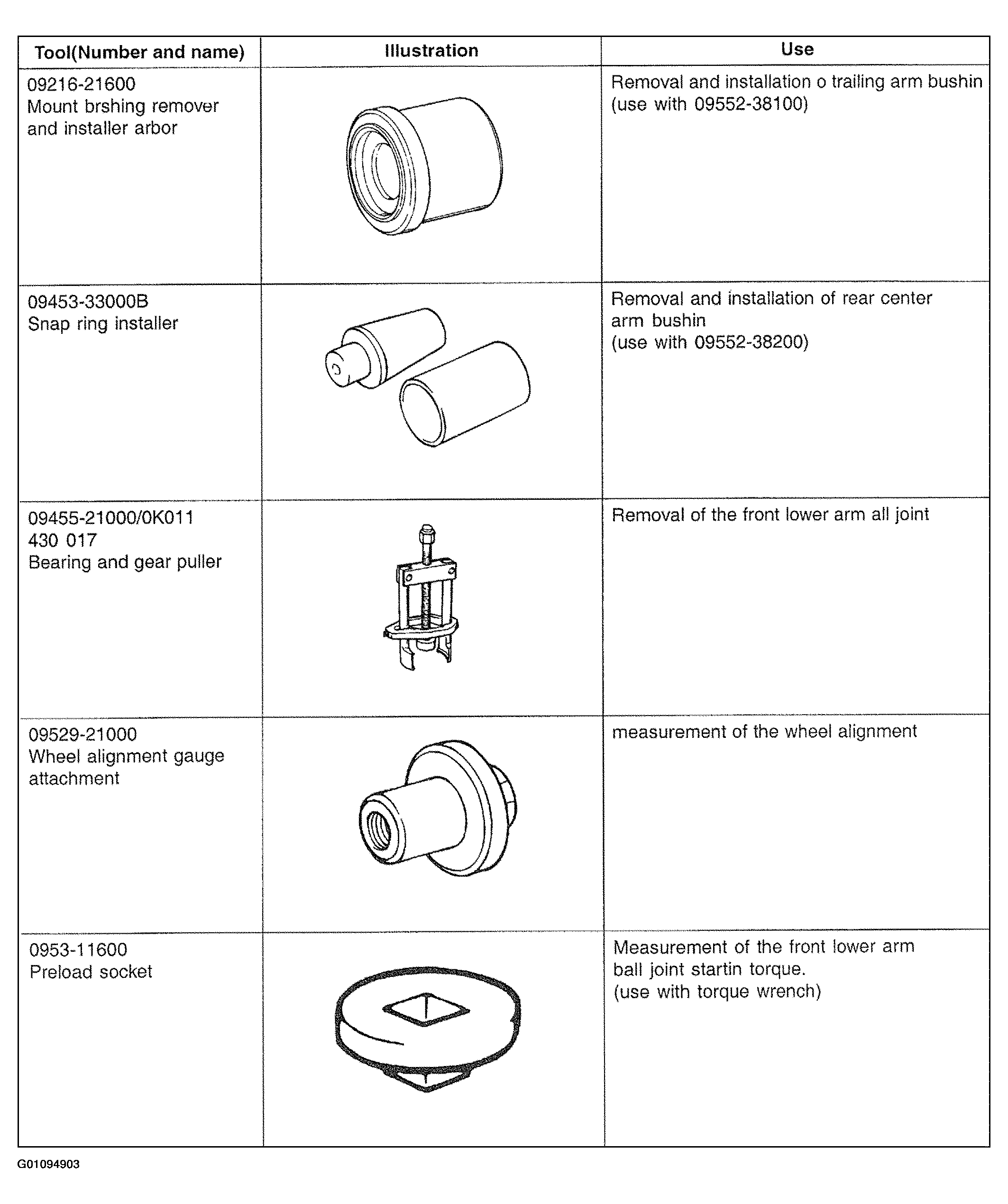

Fig 3: Identifying Special Tools (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
