Home >> Kia >> 2003 >> Magentis SE, 2.4 6 >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Suspension System >> Upper Arm >> Components

Upper Arm: Components

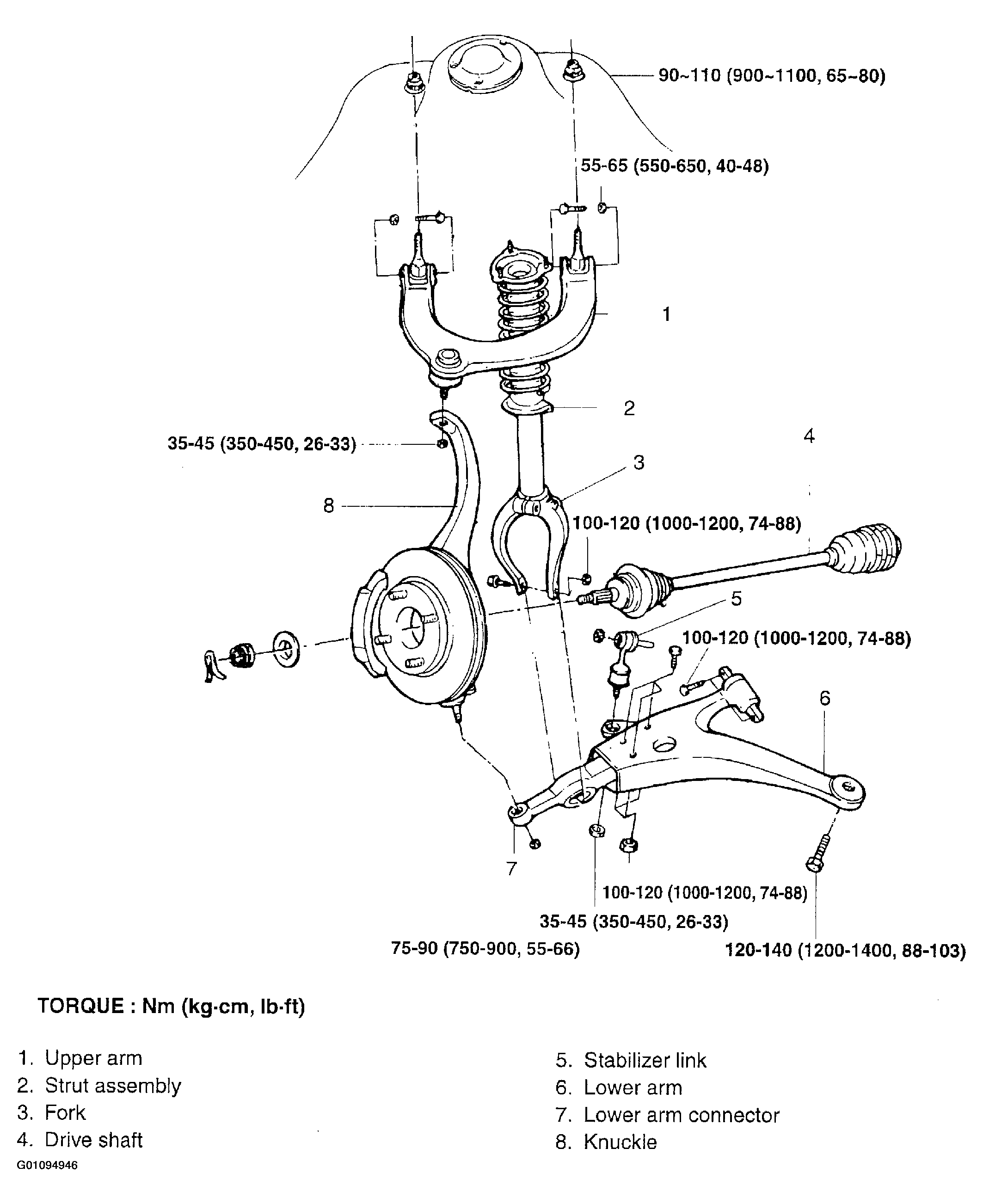

Fig 1: Exploded View Of Upper Arm Components

G01094946

Courtesy of KIA MOTORS AMERICA, INC.
