Strut Assembly: Inspection

  1. Check the rubber parts for damage or deterioration.
  2. Check the spring for deformation, deterioration or damage.
    3. NOTE: When discarding the gas pressurized shock absorber, follow the disposal procedure.

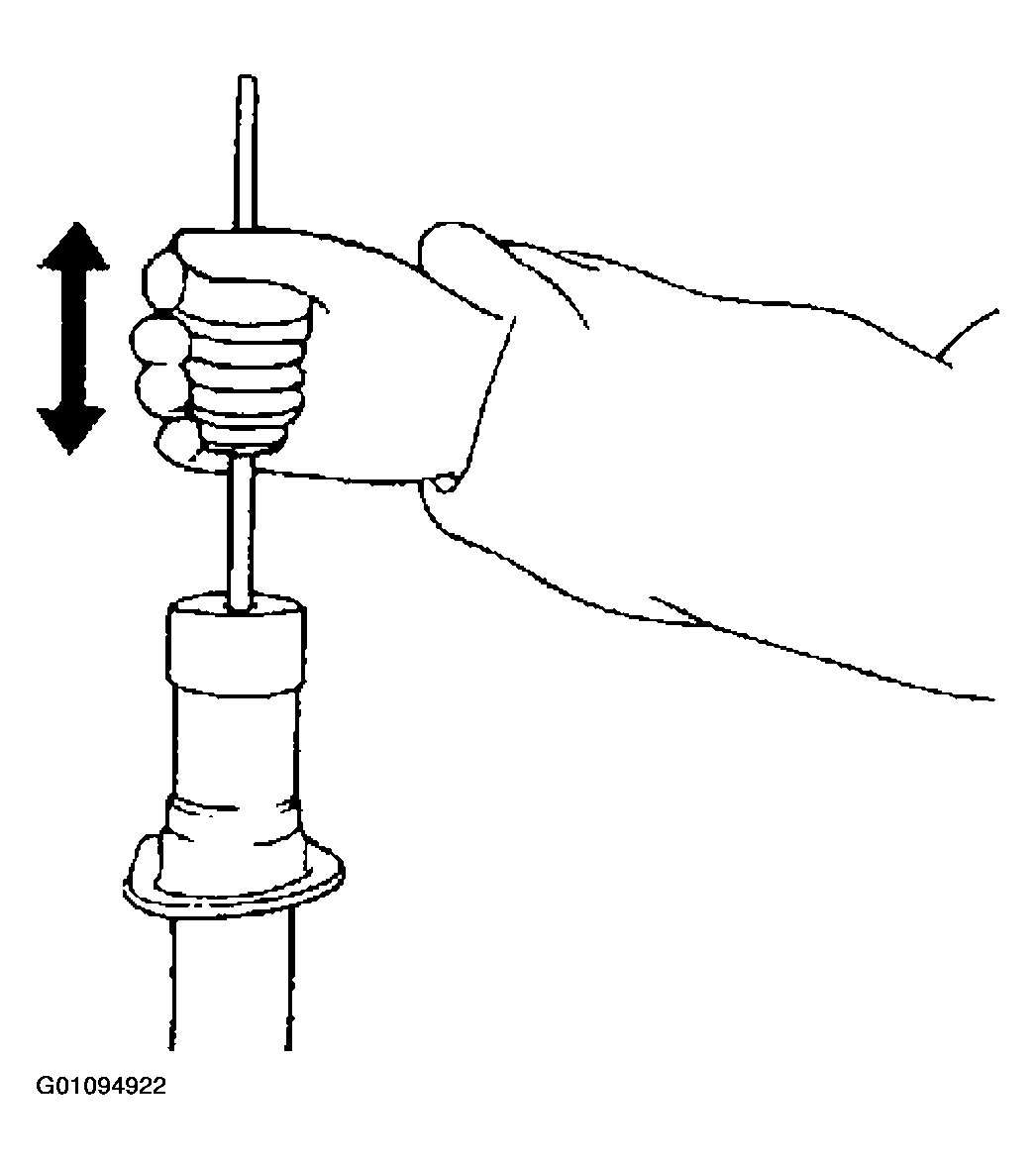

    Fig 1: Checking Shock Absorber Resistance
    G01094922Courtesy of KIA MOTORS AMERICA, INC.
  3. Check the shock absorber for abnormal resistance or unusual sounds.
