Strut Assembly: Disposal

  1. Fully extend the shock absorber rod.
    2. CAUTION: The gas coming out is harmless, but be careful of chips that may fly up when drilling.

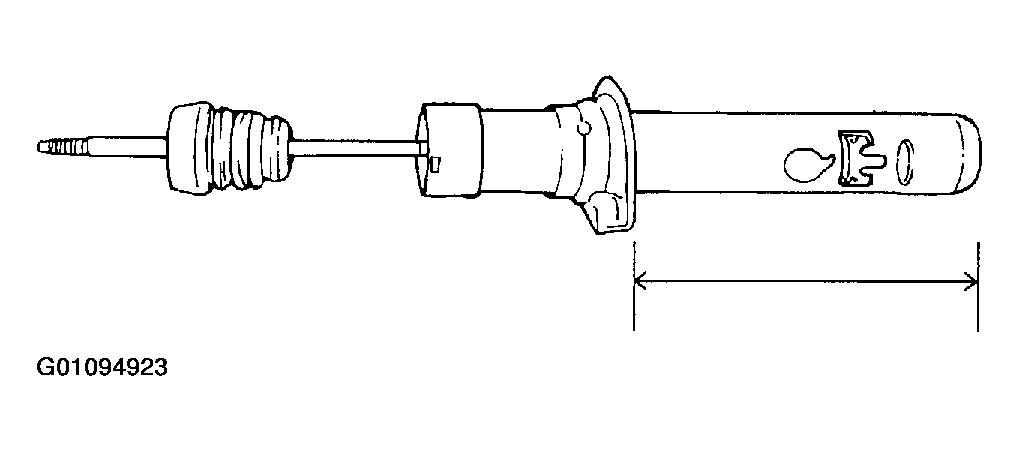

    Fig 1: Disposing Of Shock Absorber
    G01094923Courtesy of KIA MOTORS AMERICA, INC.
  2. Drill a hole to remove gas from the cylinder.
