Lower Arm: Installation

  1. Install the stabilizer link so that the distance (A) is at the standard value.
  2. Installation is reverse of removal.

    Standard value (A): 3~5 mm (0.0118-0.197 in.)

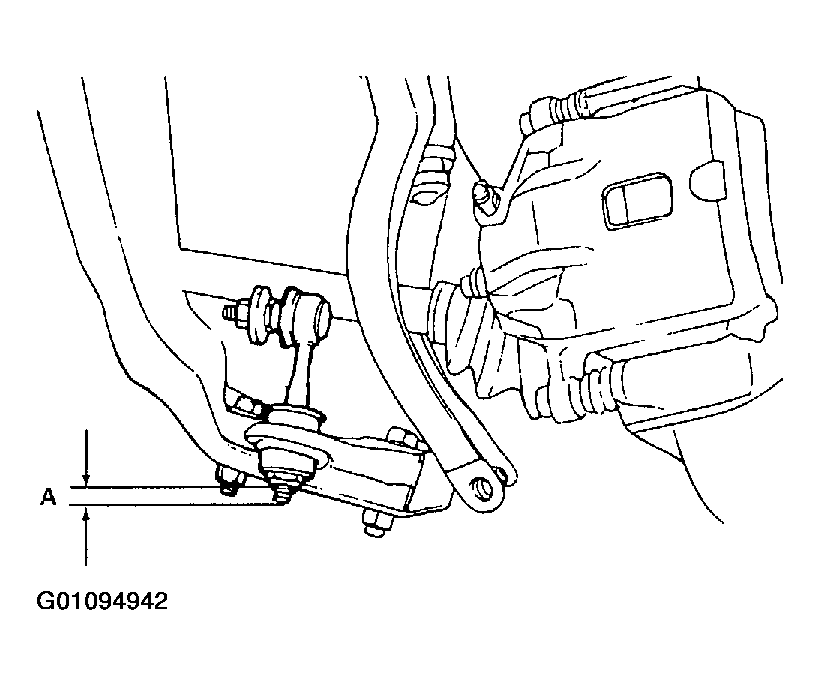

    Fig 1: Installing Stabilizer Link
    G01094942Courtesy of KIA MOTORS AMERICA, INC.
