Home >> Kia >> 2003 >> Magentis SE, 2.4 6 >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Suspension System >> Lower Arm >> Components

Lower Arm: Components

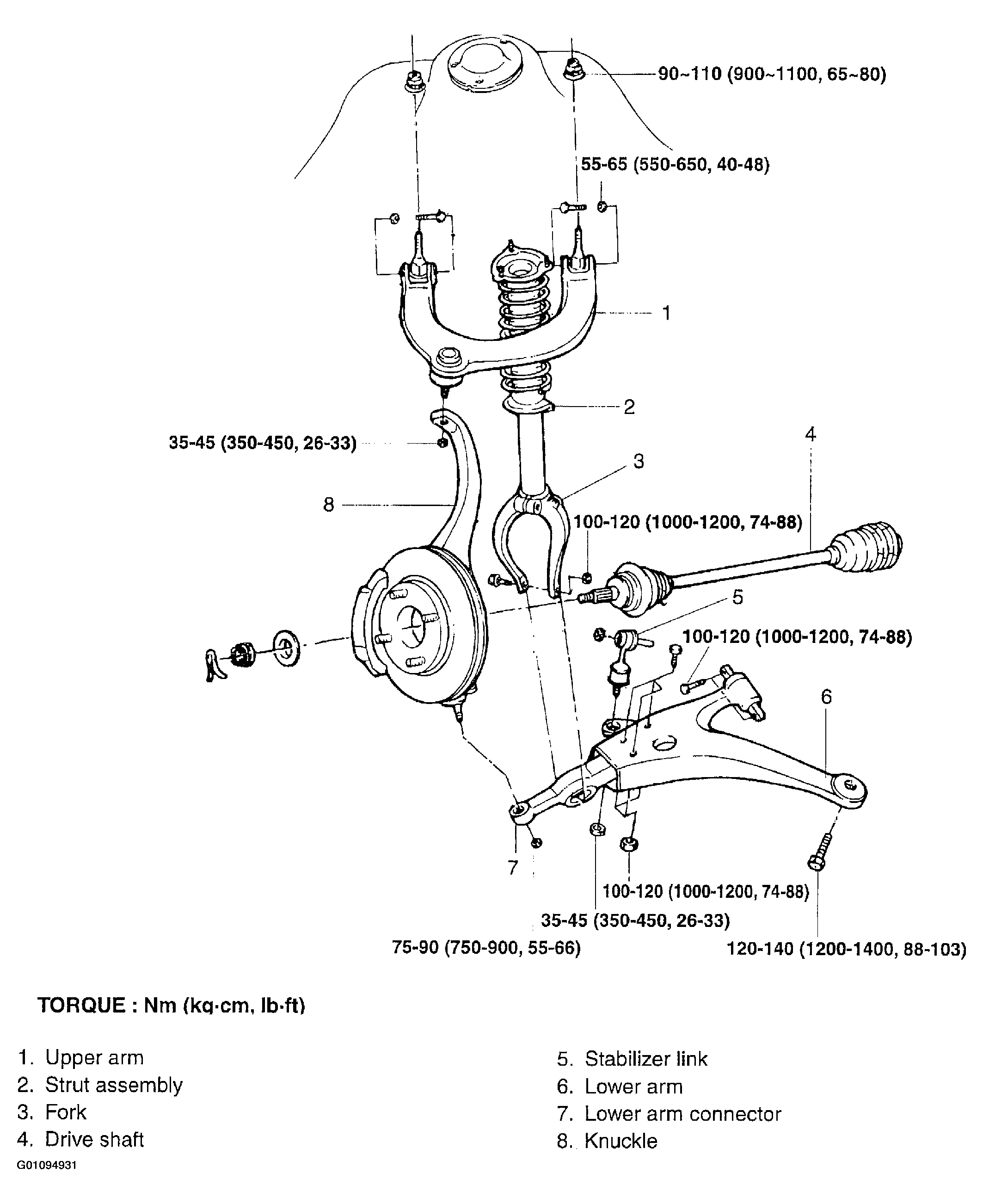

Fig 1: Exploded View Of Lower Arm Components

G01094931

Courtesy of KIA MOTORS AMERICA, INC.
