Timing Belt

  1. Check the belt for oil or dust deposits. Replace if necessary. Small deposits should be wiped away with a dry cloth or paper. Do not clean with solvent.
  2. When the engine is overhauled or belt tension adjusted, check the belt in detail. If the following flaws are evident, replace the belt with a new one.

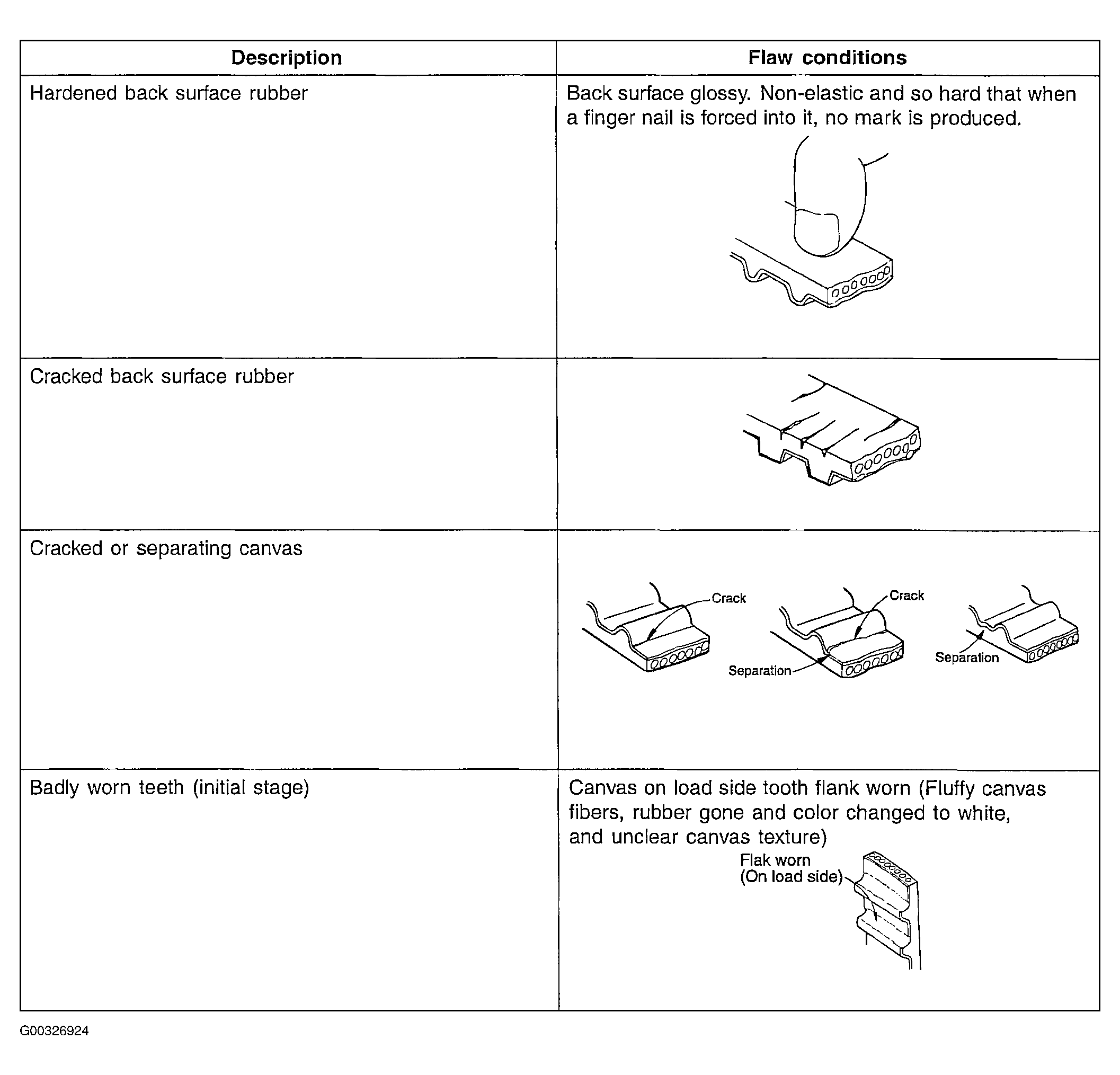

Fig 1: Timing Belt Inspection Chart (1 Of 2)
G00326924Courtesy of KIA MOTORS AMERICA, INC.

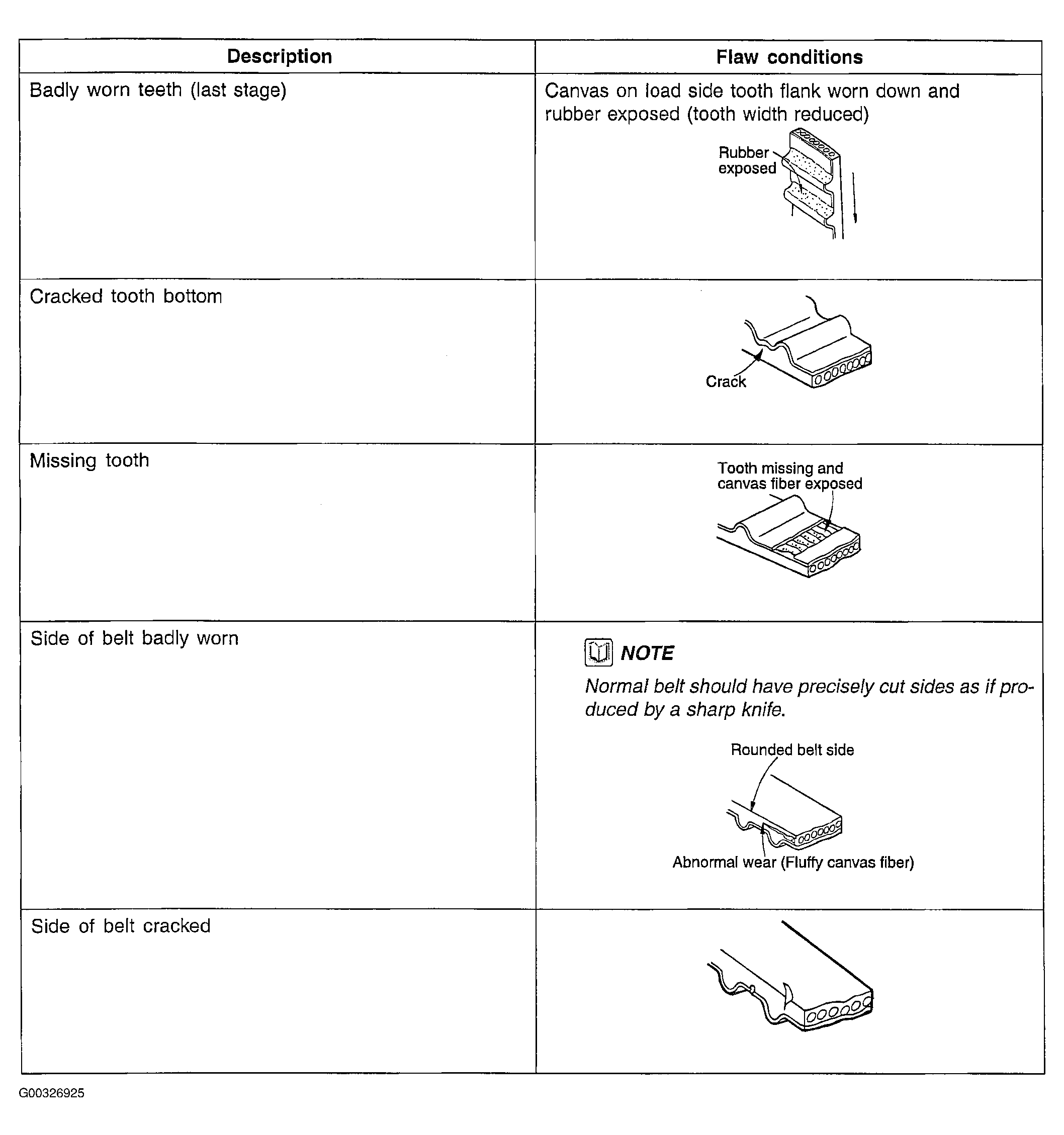

Fig 2: Timing Belt Inspection Chart (2 Of 2)
G00326925Courtesy of KIA MOTORS AMERICA, INC.
