Counter Balance Shaft: Inspection

Check journals for wear or seizure. If excessive wear or seizure is evident, check the bearing carefully. If necessary, replace the counter balance shaft bearings.

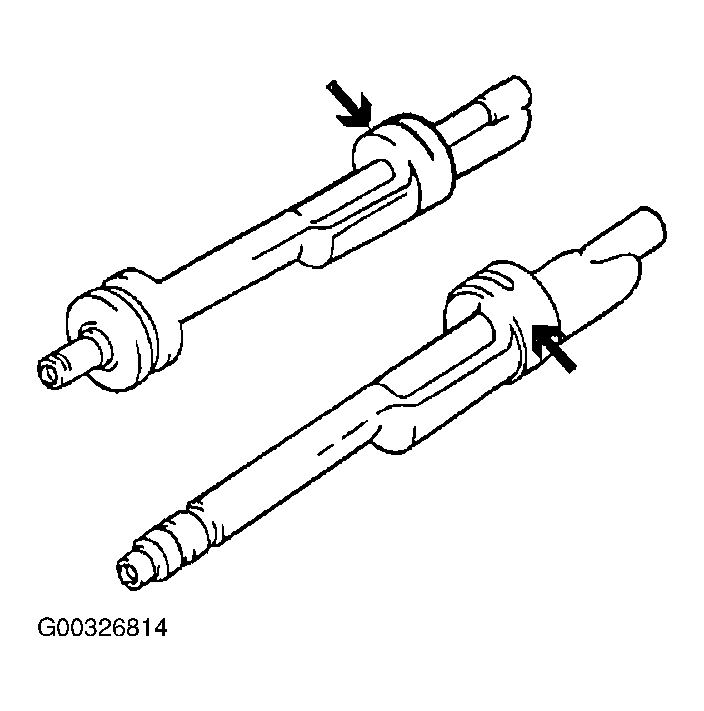

Fig 1: Checking Counter Balance Shaft Journals For Wear

Courtesy of KIA MOTORS AMERICA, INC.
