Removal And Installation

Disconnect the negative (-) battery terminal.
Remove the center facia panel and disconnect the wire connectors.

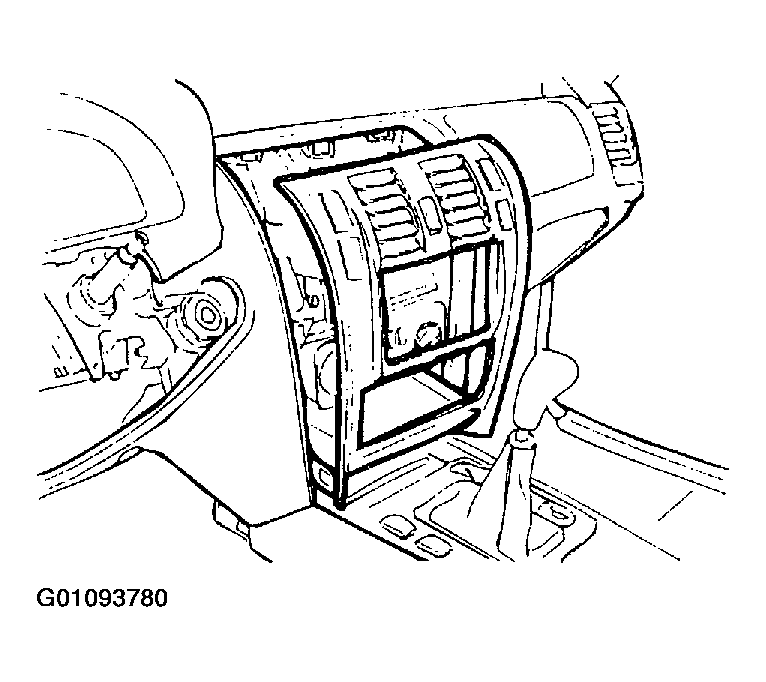

Fig 1: Removing Center Facia Panel
Courtesy of KIA MOTORS AMERICA, INC.
Remove the 4 screws holding the audio unit, then remove the audio assembly.

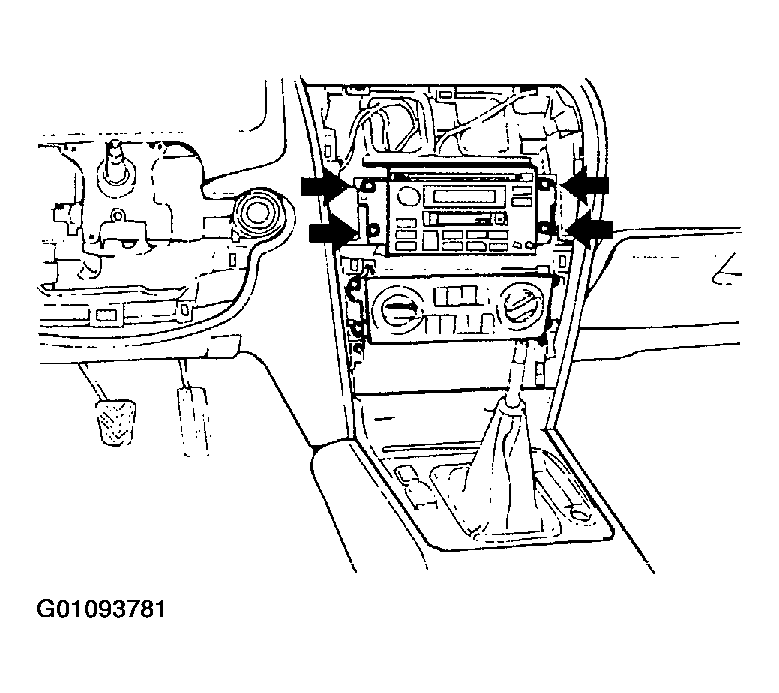

Fig 2: Removing Mounting Screws & Audio Unit
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the power connector and antenna cable jack from the audio unit.

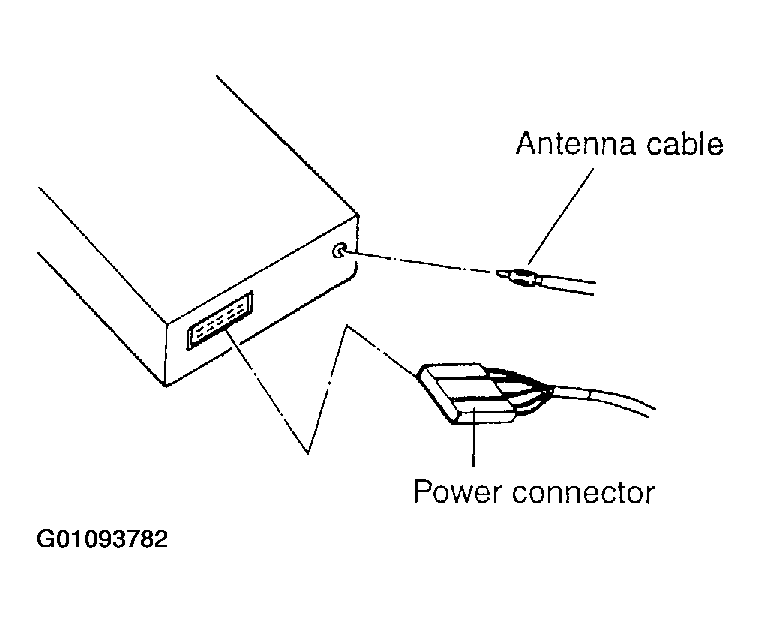

Fig 3: Disconnecting Power Connector & Antenna Cable Jack
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
