Oil Pump: Inspection

  1. Check the following and replace any faulty parts.
    • Distorted or damaged oil pump body or cover.
    • Worn or damaged plunger.
    • Weak or broken plunger spring.
  2. Measure side clearance.

    Clearance: 0.0035 in (0.09 mm) Max.

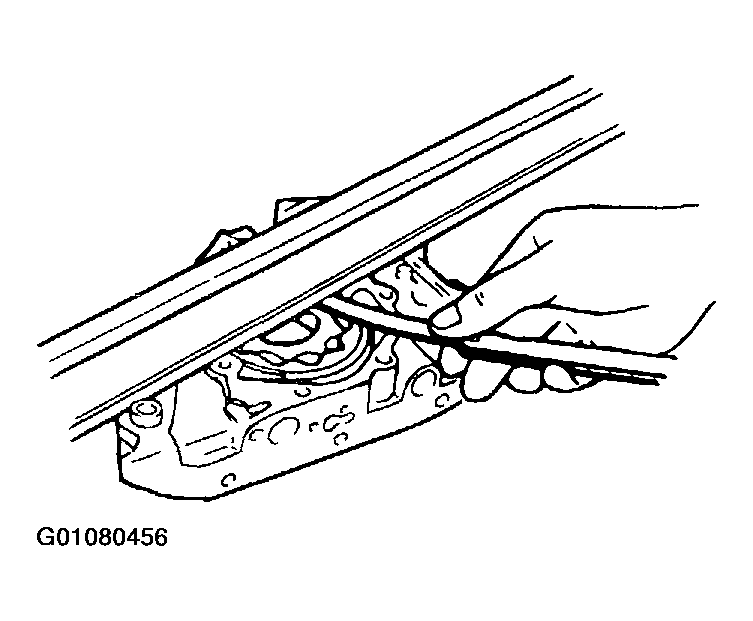

    Fig 1: Measuring Side Clearance
    G01080456Courtesy of KIA MOTORS AMERICA, INC.
  3. Measure tooth tip clearance.

    Clearance: 0.007 in (0.18 mm) Max.

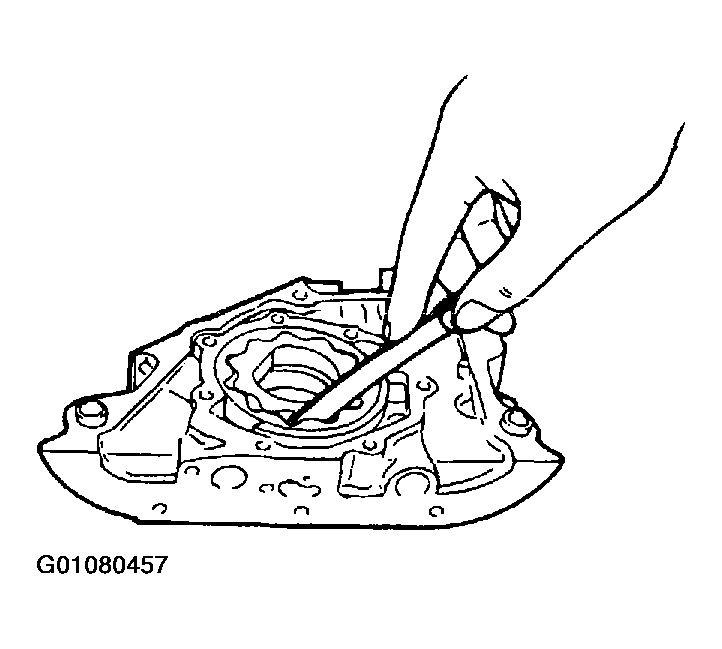

    Fig 2: Measuring Tooth Tip Clearance
    G01080457Courtesy of KIA MOTORS AMERICA, INC.
  4. Measure outer rotor to pump body clearance.

    Clearance: 0.015 in (0.376 mm) Max.

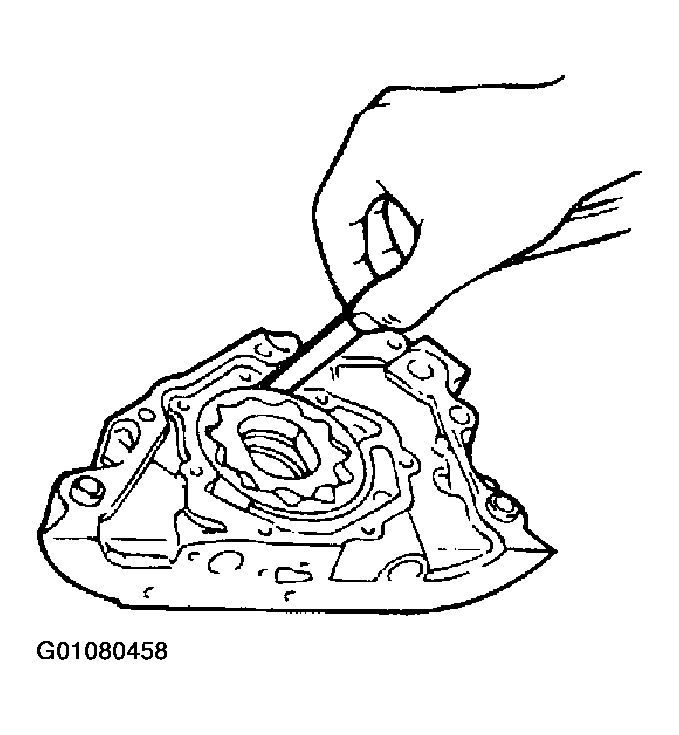

    Fig 3: Measuring Outer Rotor To Pump Body Clearance
    G01080458Courtesy of KIA MOTORS AMERICA, INC.
