Washer Nozzle: Adjustment

  1. Spray should center on driver and passenger sides of front windshield. If off-line, adjust by slightly turning the nozzle.
  2. If clogged or restricted, use a needle or wire to clear nozzle exit.

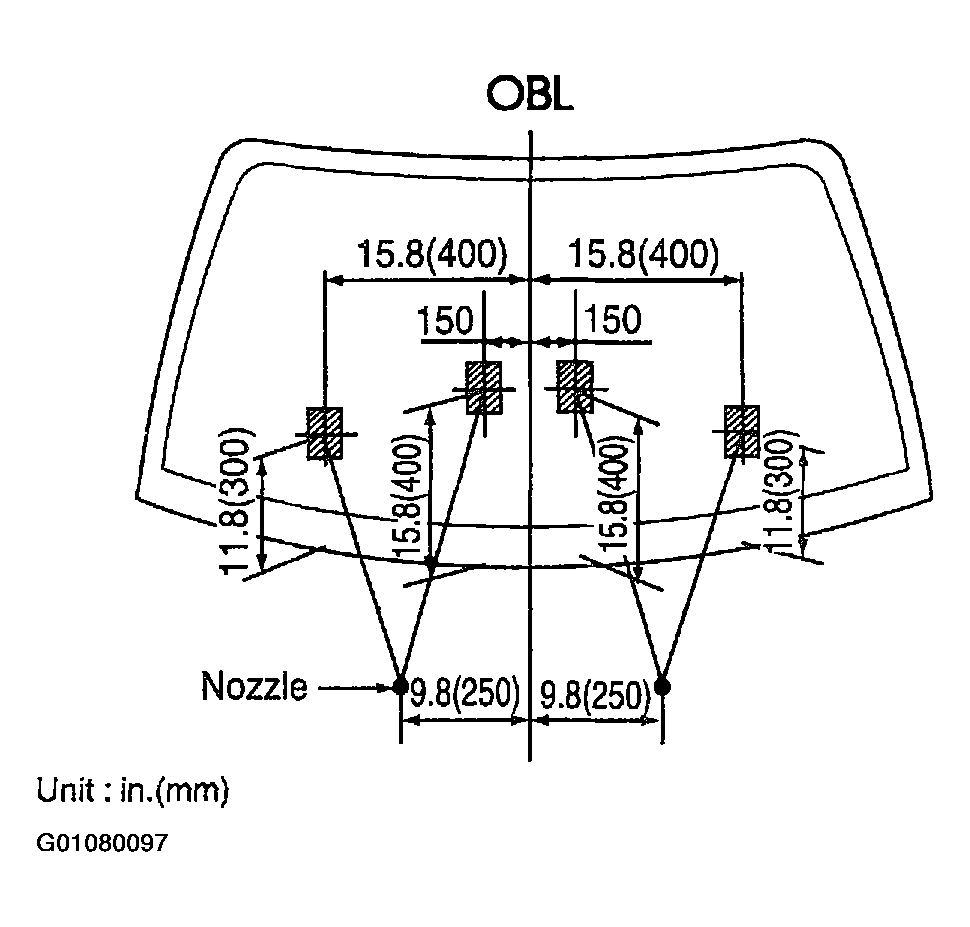

    Fig 1: Adjusting Nozzle
    G01080097Courtesy of KIA MOTORS AMERICA, INC.
