Rear Washer Motor: Removal

  1. Disconnect negative battery cable.
  2. Remove fasteners and bolt from mud guard and gently pull mud guard downward fully.
  3. Remove three bolts on washer tank.
  4. Disconnect washer motor harness connector.
  5. Remove hose connector at washer motor.
  6. Remove washer motor and washer tank.
  7. Drain washer tank and then separate washer motor from washer tank.

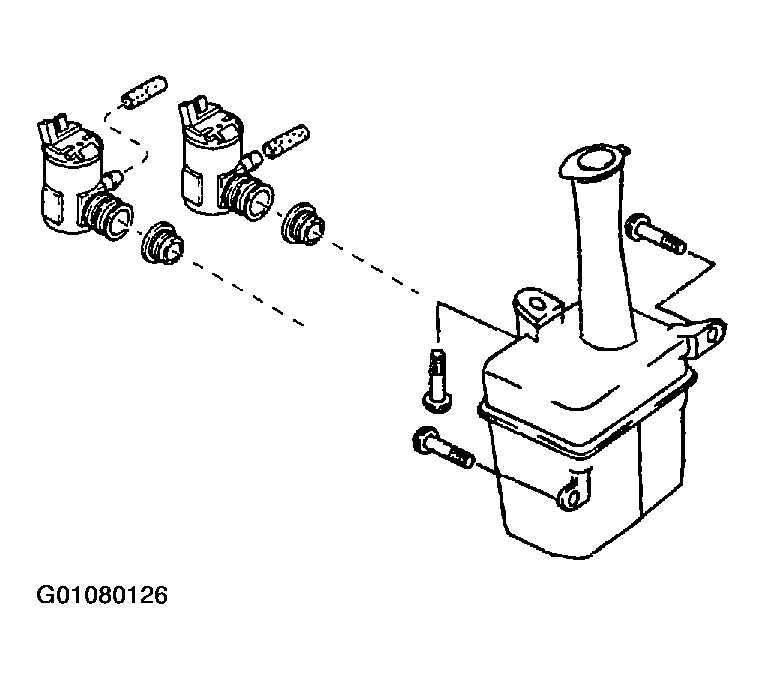

    Fig 1: Separating Washer Motor From Washer Tank
    G01080126Courtesy of KIA MOTORS AMERICA, INC.
  8. To install, reverse removal procedure.
