Checking Fluid Level: Rio

    NOTE: Keep vehicle level when checking oil level.
  1. Raise and support vehicle with safety stands.
  2. Remove the speedometer driven gear.
  3. Verify that oil level is within the specifications. See Fig 1.
  4. If oil is low, fill specified amount and type of oil through the speedometer driven gear. See Fig 2, RECOMMENDED FLUID  and FLUID CAPACITIES  .
  5. Reinstall the speedometer driven gear in case.
  6. Lower vehicle.
Fig 1: Checking Oil Level (Rio)
G00056021Courtesy of KIA MOTORS AMERICA, INC.

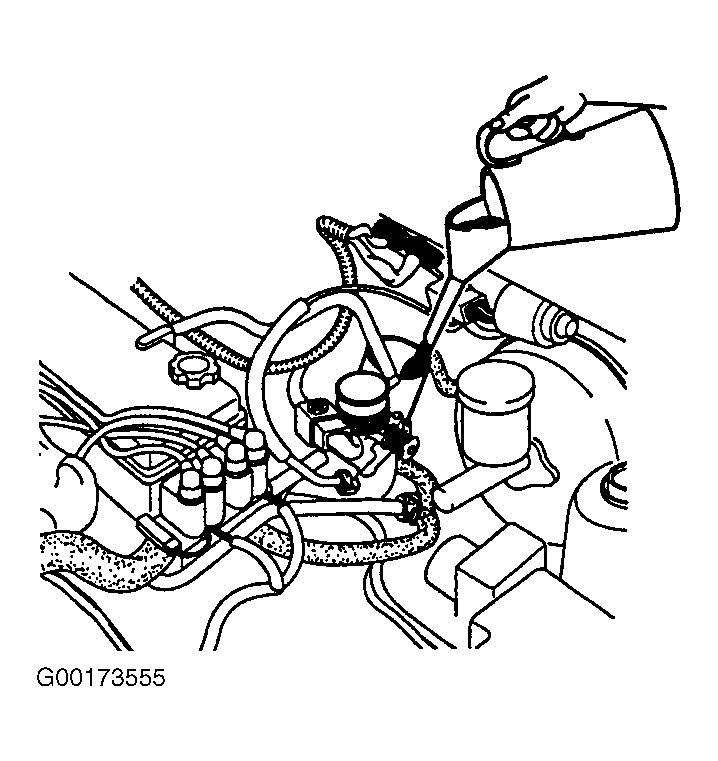

Fig 2: Refilling Oil (Rio)
G00173555Courtesy of KIA MOTORS AMERICA, INC.
