Power Steering Oil Pump Assembly: Disassembly

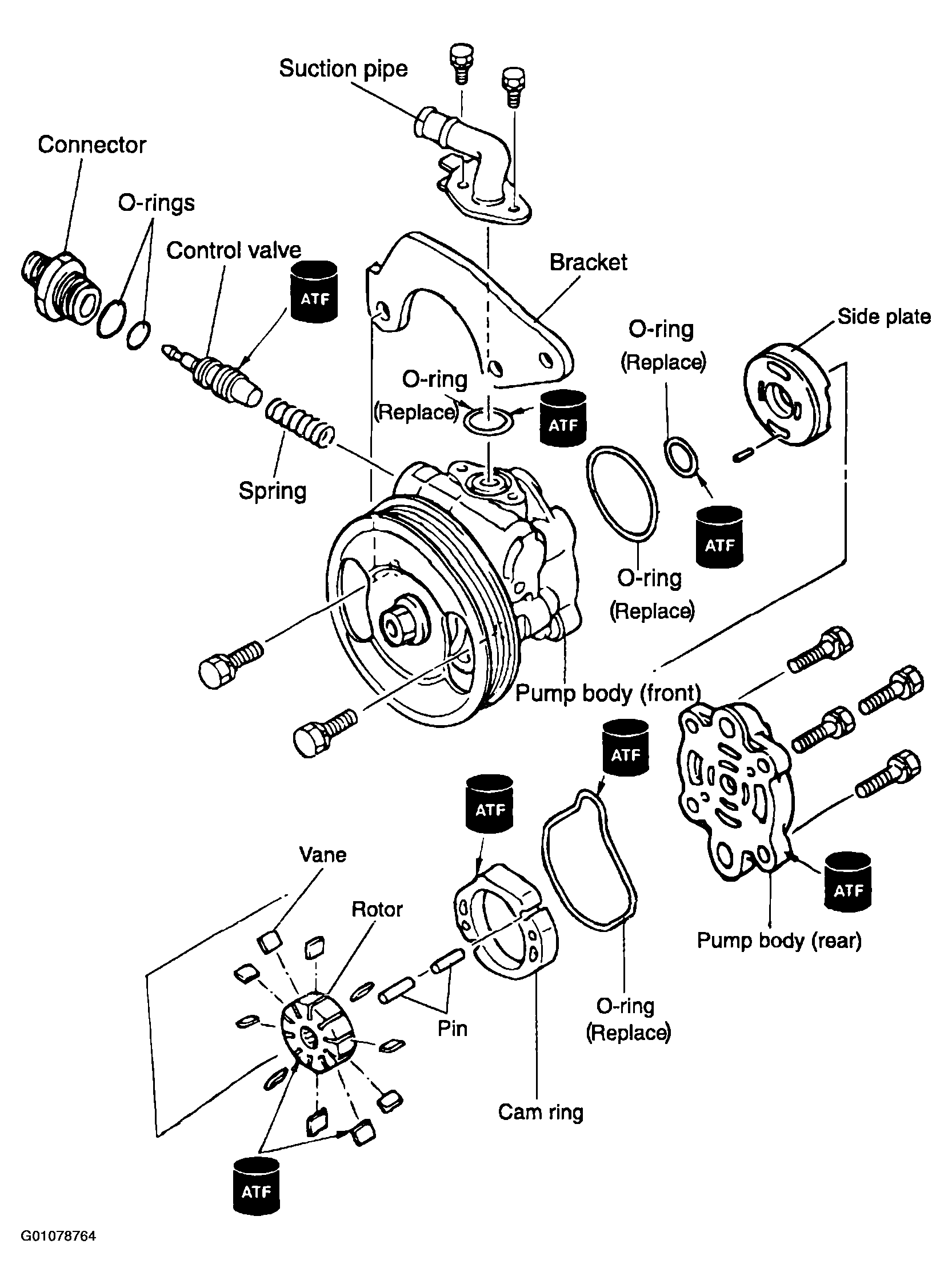

Fig 1: Illustrating Oil Pump Components

Courtesy of KIA MOTORS AMERICA, INC.

1. Secure power steering pump in a vise equipped with protective jaw caps.
2. Remove two power steering pump-to-power steering bracket bolts and remove bracket.
3. Remove two suction pipe bolts and remove suction pipe.
4. Remove suction pipe O-ring from power steering pump.
5. Remove connector from power steering pump.
6. Remove four O-rings from connector.
7. Remove control valve from power steering pump valve bore.
8. Remove spring from power steering pump valve bore.
9. Reposition power steering pump in vise to remove four rear body bolts.
10. Remove rear body.
11. Remove rear body O-ring.
12. Remove cam ring.
13. Remove rotor.
14. Remove vanes.
15. Remove side plate.
16. Remove two O-rings from side plate.
