Home >> Kia >> 2002 >> Spectra Base, Standard >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> A/C-Heater Switch Connector End Views

A/C-Heater Switch Connector End Views

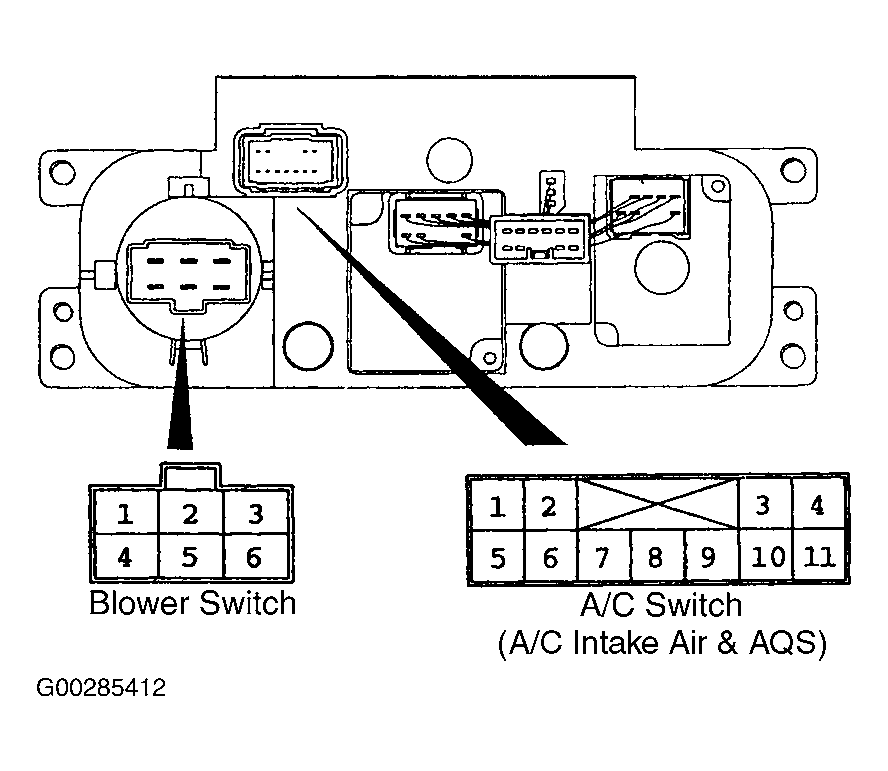

Fig 1: A/C-Heater Switch Connector End Views

G00285412

Courtesy of KIA MOTORS AMERICA, INC.
