Removal & Installation: Starter: Installation

WARNING: This page is about a different car, the 2002 Isuzu Trooper. However, it is still accessible from the selected car via links, so may be relevant.

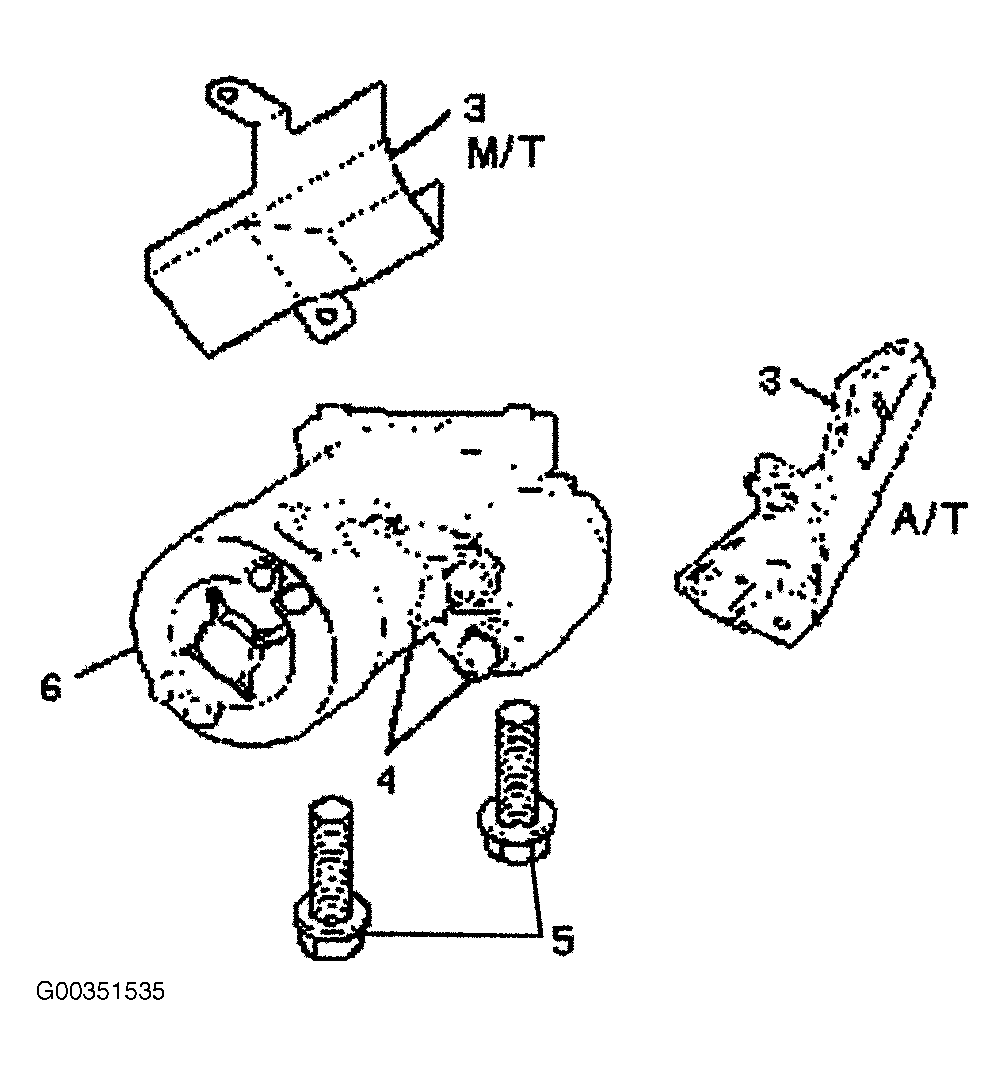

  1. Install starter assembly (6).
  2. Install mounting bolts and tighten bolts (5) to specified torque. See TORQUE SPECIFICATIONS  .
  3. Reconnect the connectors to terminals (B) and (S) tighten terminals (B) to specified torque.
  4. Install the heat protector (3). See Figure .

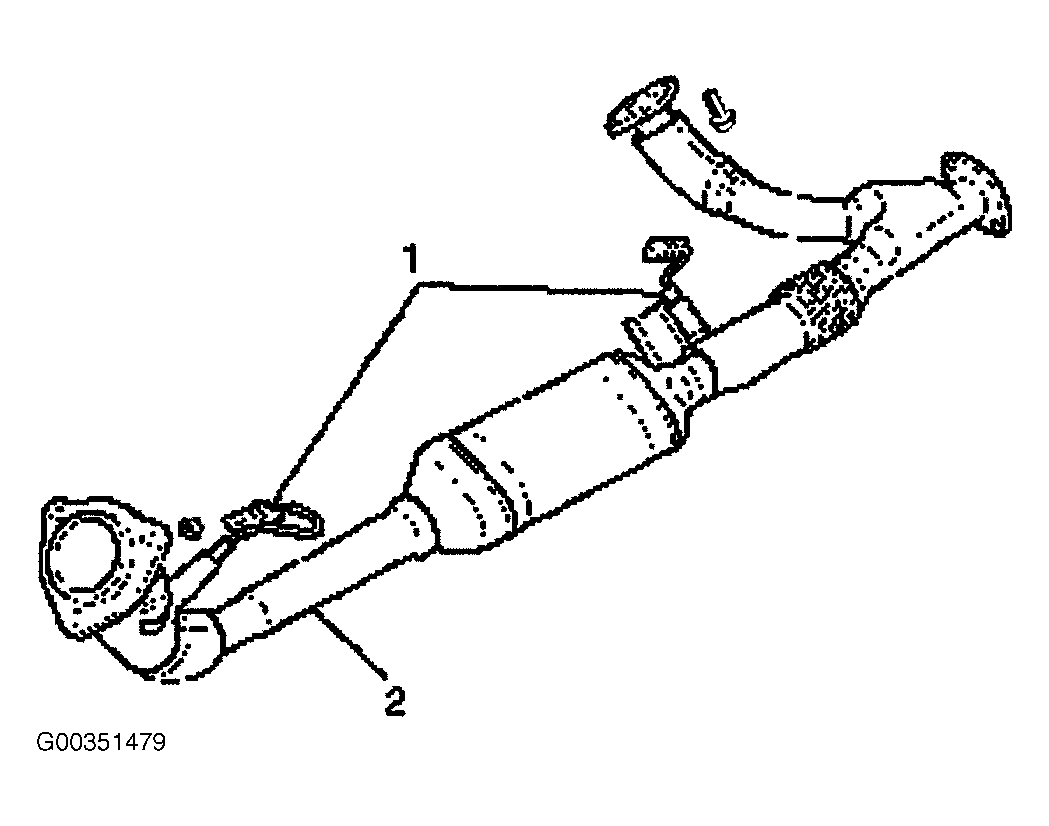

  5. Install exhaust front left pipe (2) and tighten bolts and nuts specified torque. See TORQUE SPECIFICATIONS  .
  6. Connect two heated O2 sensor connector (1). See Figure .
  7. Reconnect the battery ground cable.
