Removal & Installation: Transaxle: Notes

NOTE: For general view of components related to transaxle removal and installation, see Fig 1 .

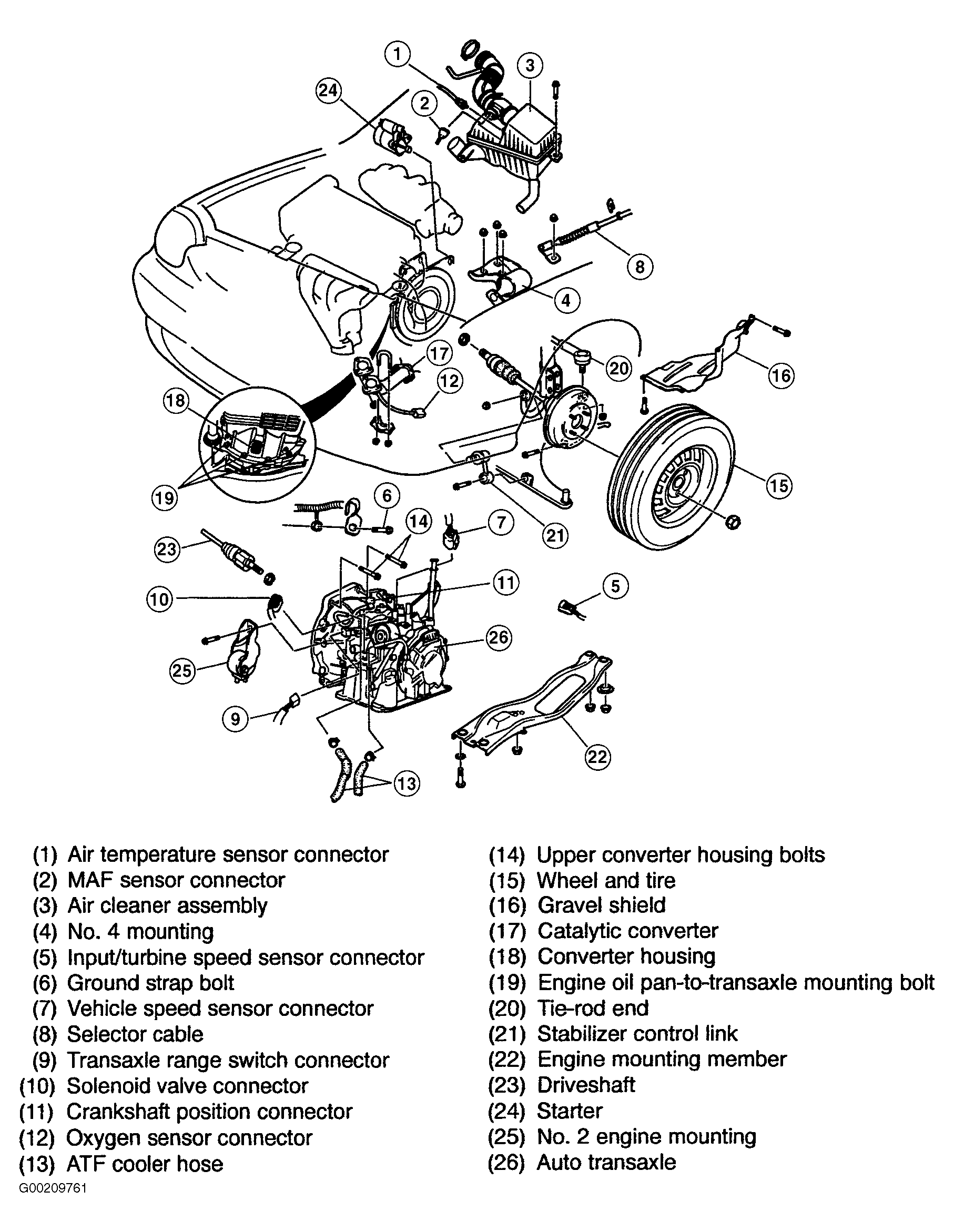

Fig 1: Components Related To Transaxle Removal & Installation
G00209761Courtesy of KIA MOTORS AMERICA, INC.
