Relief Plunger

WARNING: This page is about a different car, the 2005 Kia Spectra5, 2005 Kia Spectra, and 2004 Kia Spectra. However, it is still accessible from the selected car via links, so may be relevant.

Remove the relief plunger. Remove the plug (A), spring (B) and relief plunger (C).

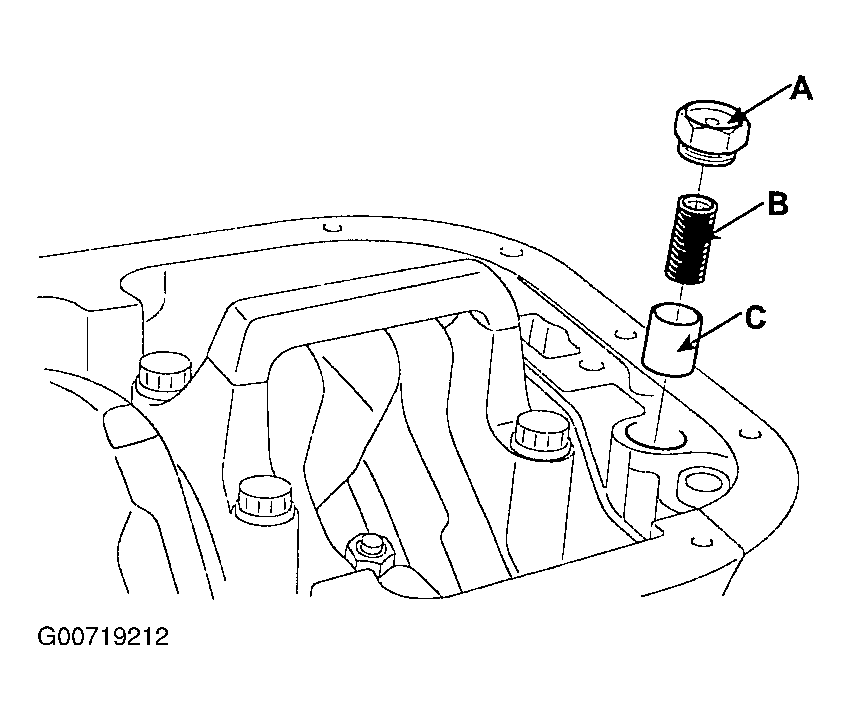

Fig 1: Removing The Relief Plunger
G00719212Courtesy of KIA MOTORS AMERICA, INC.
