Piston Pins
WARNING: This page is about a different car, the 2005 Kia Spectra5, 2005 Kia Spectra, and 2004 Kia Spectra. However, it is still accessible from the selected car via links, so may be relevant.

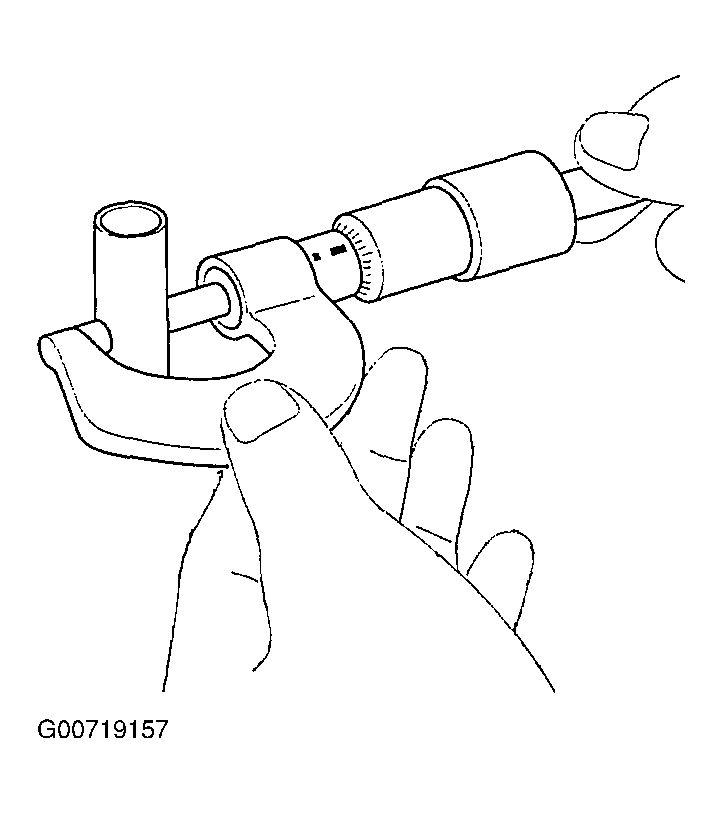

- Measure the outer diameter of piston pin.
Piston pin diameter: 20.001 ~ 20.006 mm (0.7874 ~ 0.7876 in)
- Measure the piston pin-to-piston clearance.
Piston pin-to-piston clearance: 0.01 ~ 0.02 mm (0.0004 ~ 0.0008 in)
- Check the difference between the piston pin outer diameter and the connecting rod small end inner diameter.
Piston pin-to-connecting rod interference: -0.032 ~ -0.016 mm (-0.0013 ~ -0.0006 in)
