Valve Guide

WARNING: This page is about a different car, the 2005 Kia Spectra5, 2005 Kia Spectra, and 2004 Kia Spectra. However, it is still accessible from the selected car via links, so may be relevant.

Using the Service Tool (09221 - 3F100A), withdraw the old valve guide toward the bottom of cylinder head.

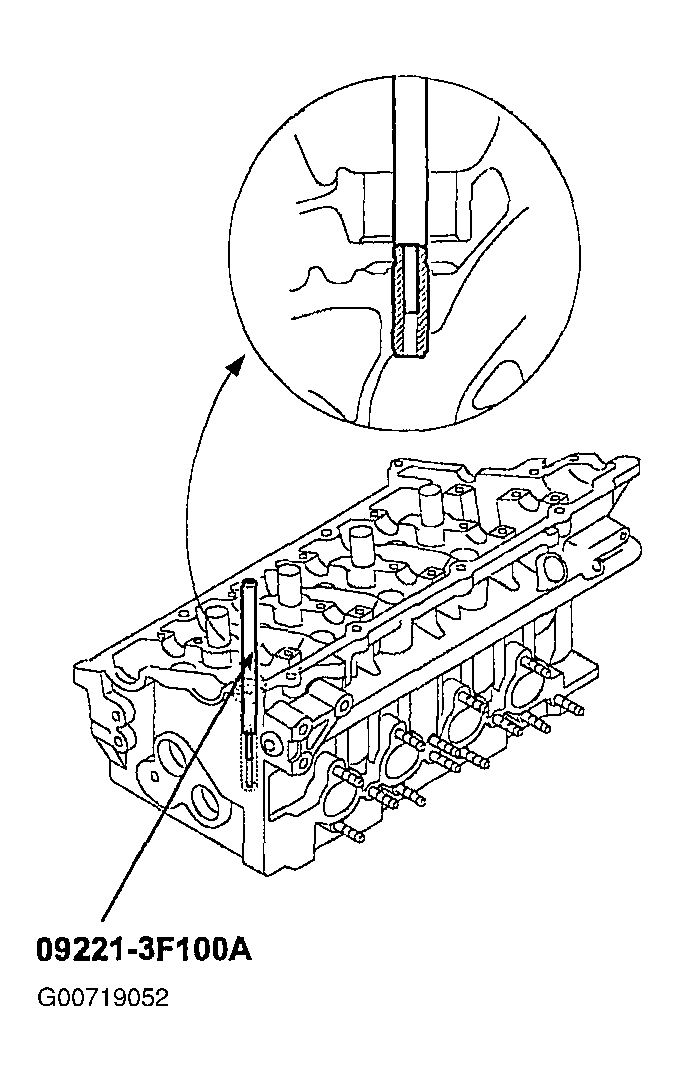

Fig 1: Removing Valve Guide
Courtesy of KIA MOTORS AMERICA, INC.
Recondition the valve guide hole of cylinder head so that it can match the newly press-fitted oversize valve guide.
Using the Service Tool (09221 - 3F100 A/B), press-fit the valve guide. The valve guide must be press-fitted from the upper side of the cylinder head. Keep in mind that the intake and exhaust valve guides are different in length.
1. Valve guide length
2. Intake : 45.8 ~ 46.2 mm (1.8031 ~ 1.8189 in)
3. Exhaust: 54.3 ~ 54.7 mm (2.1378 ~ 2.1535 in)

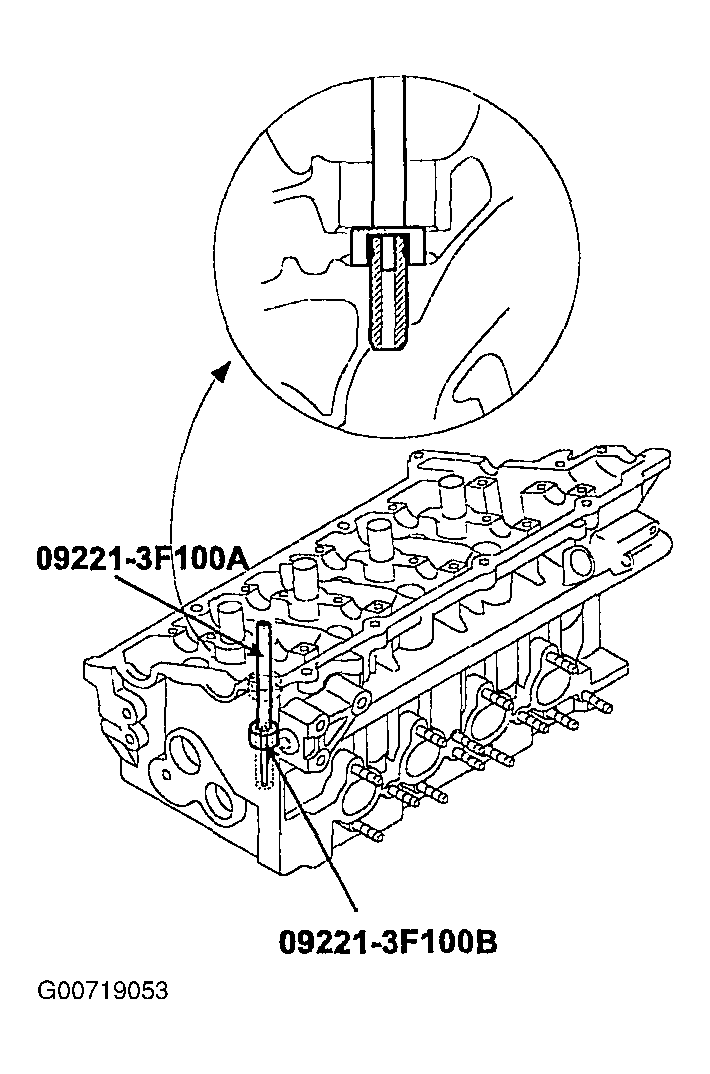

Fig 2: Installing Valve Guide
Courtesy of KIA MOTORS AMERICA, INC.
After the valve guide is press-fitted, insert a new valve and check for proper stem-to-guide clearance.
After the valve guide is replaced, check that the valve is seated properly. Recondition the valve seats as necessary.
