Cooling System: Removal: Radiator

WARNING: This page is about a different car, the 2005 Kia Spectra5, 2005 Kia Spectra, and 2004 Kia Spectra. However, it is still accessible from the selected car via links, so may be relevant.

Drain the engine coolant.
Remove the battery terminals (A) and heat shield (B).

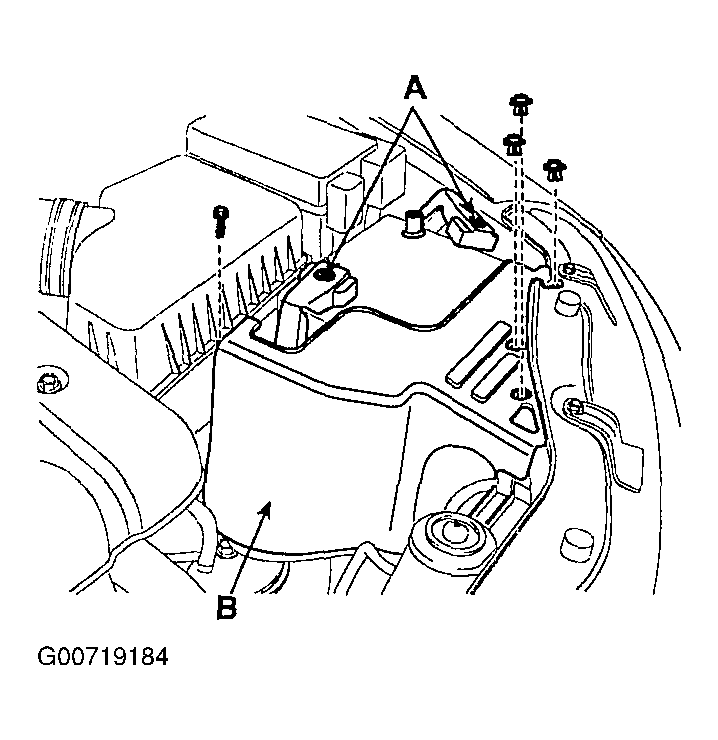

Fig 1: Removing The Battery Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Remove the battery and battery tray.

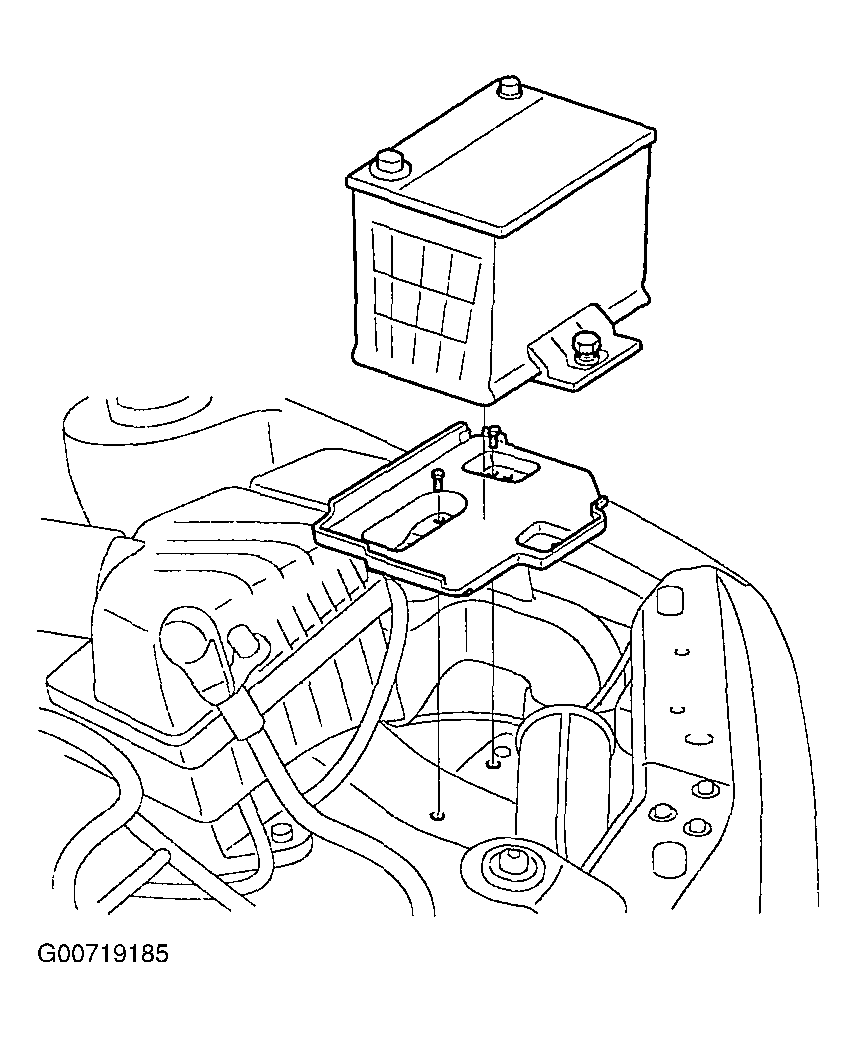

Fig 2: Removing The Battery & Battery Tray
Courtesy of KIA MOTORS AMERICA, INC.
Remove the upper radiator hose (A) and lower radiator hose (B).

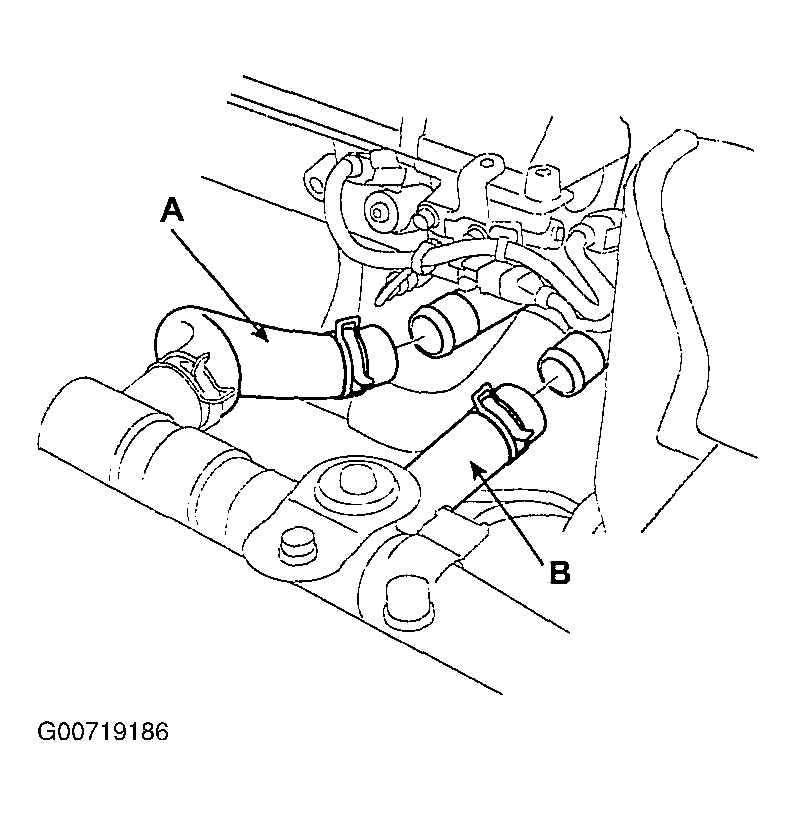

Fig 3: Removing The Upper & Lower Radiator Hose
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ATF (Automatic Transaxle Fluid) cooler hose (A).

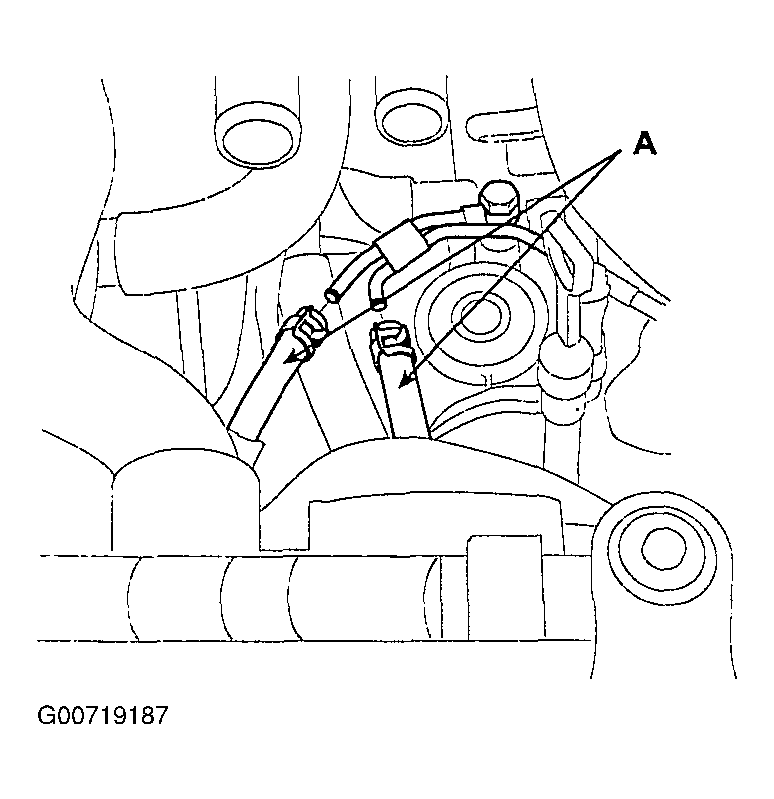

Fig 4: Removing Automatic Transaxle Fluid Cooler Hose
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fan motor connector.

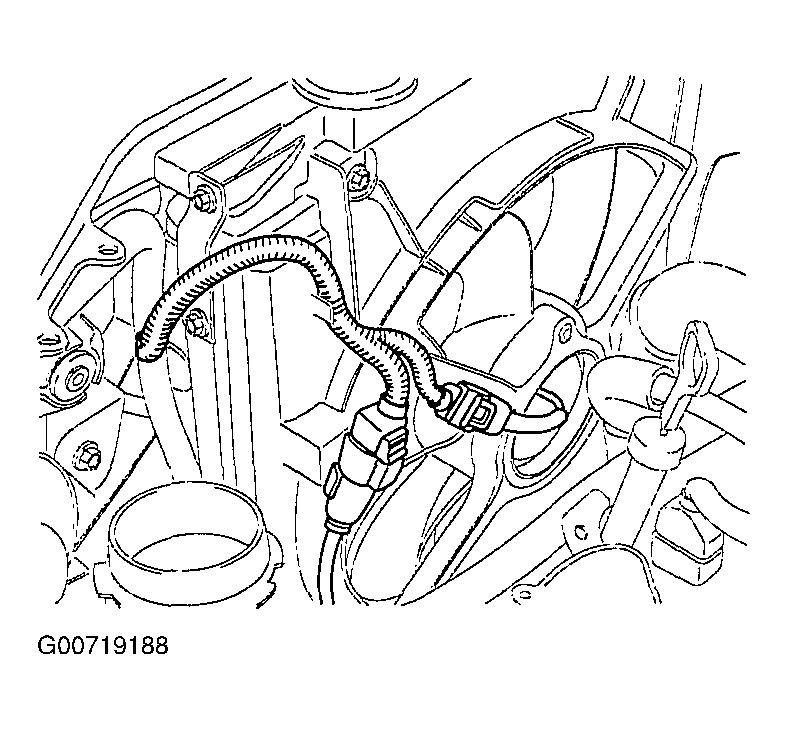

Fig 5: Disconnecting The Fan Motor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the radiator.

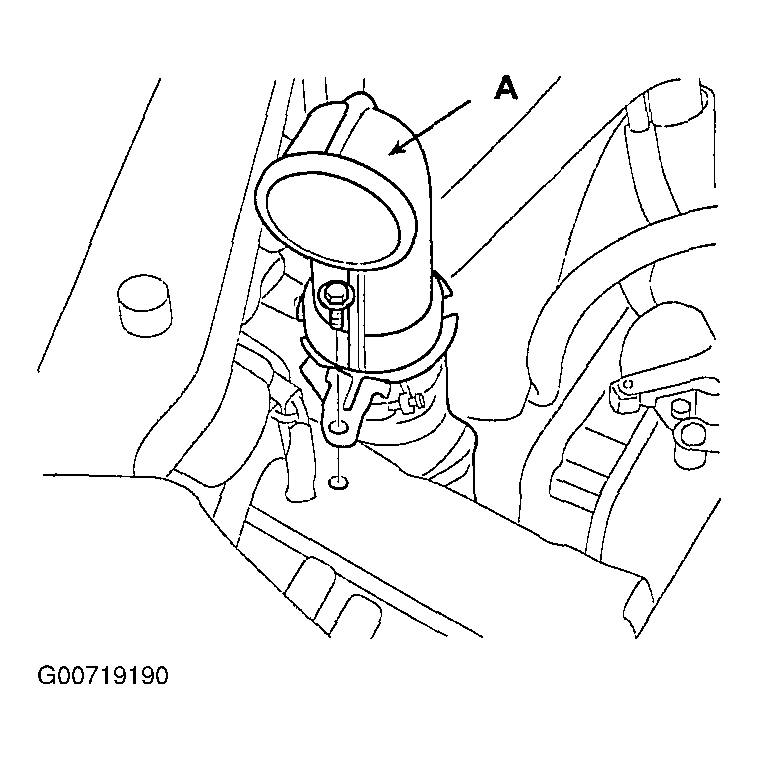

1. Remove the air duct (A) to allow for radiator removal.

  Fig 6: Removing The Air Duct
  Courtesy of KIA MOTORS AMERICA, INC.
2. Remove the reservoir tank (A) to allow clearance when removing the radiator.

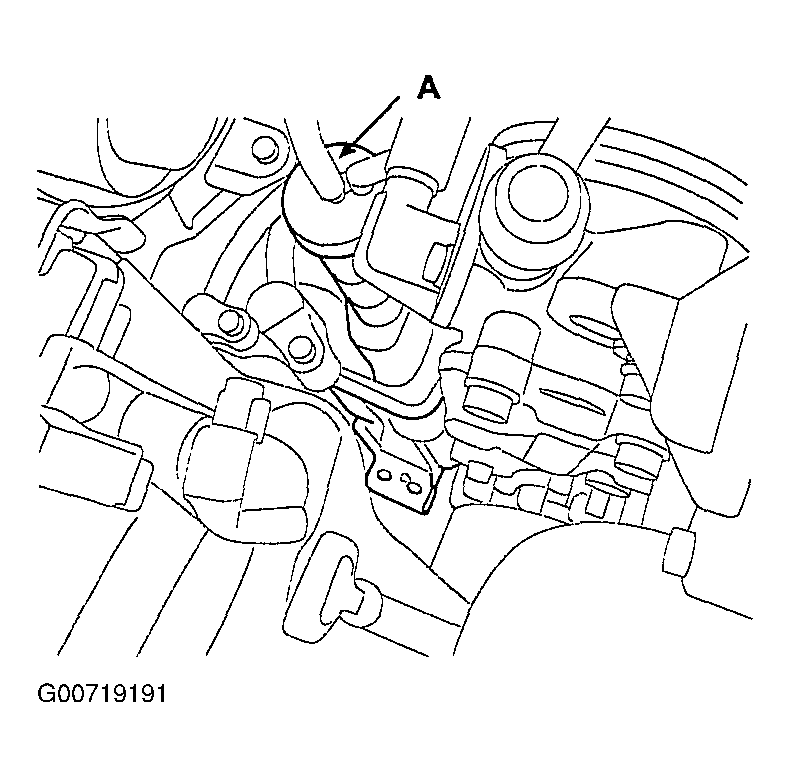

  Fig 7: Removing The Reservoir Tank
  Courtesy of KIA MOTORS AMERICA, INC.
3. Remove the radiator mounting bolts and remove the radiator from condenser.

  Fig 8: Removing The Radiator From Condenser
  Courtesy of KIA MOTORS AMERICA, INC.
Remove the radiator upper bracket, then pull up the radiator.

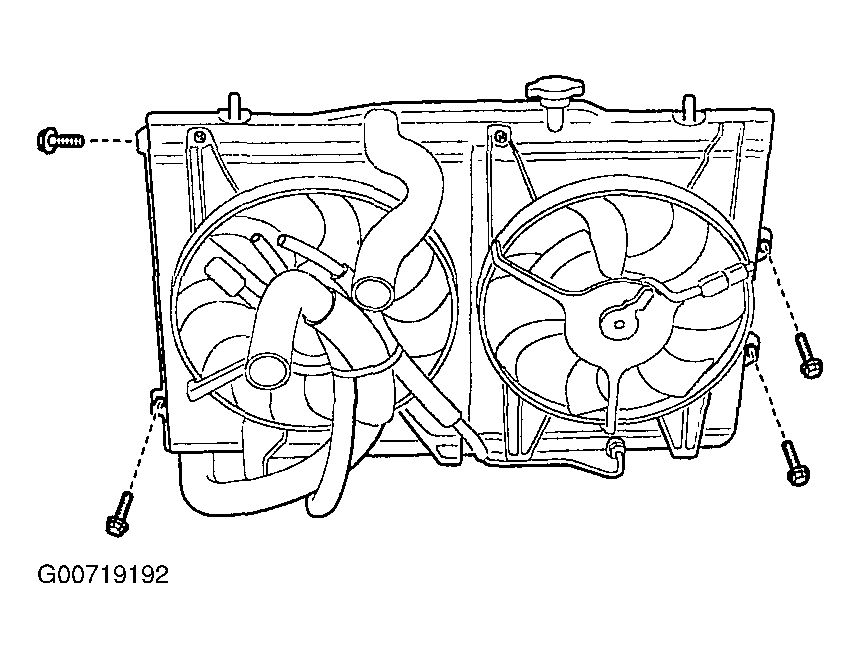

Fig 9: Removing The Radiator Upper Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Remove the cooling fan from the radiator.
