Drive Belt Tension

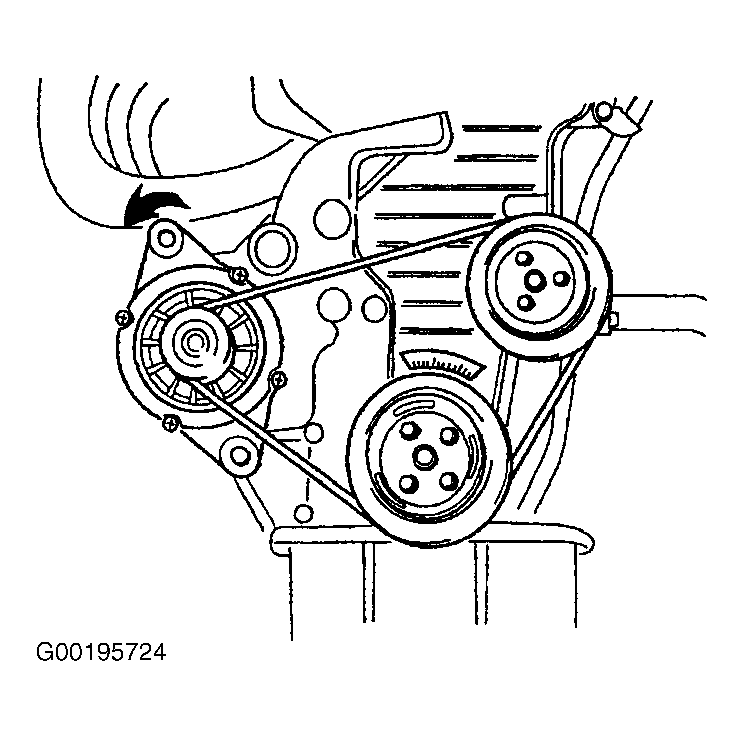

Prior to any maintenance, check drive belt and pulley for wear, cracks and fraying. Replace if necessary. Using a belt tension gauge, measure drive belt tension midway on longest belt run. See GENERATOR DRIVE BELT TENSION table. Adjust drive belt as necessary.
GENERATOR DRIVE BELT TENSION
| Application | Lbs. (N) | |
|---|---|---|
| New Belt | 86-104 (383-463) | |
| Used Belt | 68-86 (302-383) | |
GENERATOR DRIVE BELT DEFLECTION
| Application | In. (mm) |
|---|---|
| New Belt | 0.31-0.35 (8-9) |
| Used Belt | 0.35-0.39 (9-10) |
