Self-Diagnosis Procedures

With the ignition switch OFF, connect the diagnostic scan tool (Hi/Scan pro) to the data link connector in the engine compartment.
Turn the ignition switch ON, then check diagnostic trouble code(s).
If a diagnostic trouble code(s) is displayed, check for cause by using number on diagnostic trouble code. Repair as necessary.
After repair, perform After-Repair Procedures to verify that there are no remaining diagnostic trouble codes.

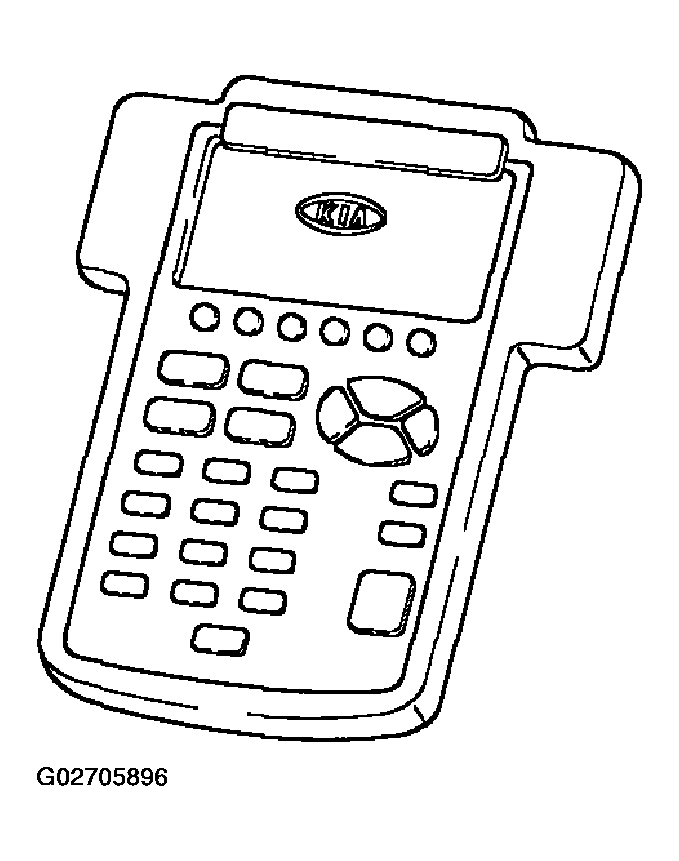

Fig 1: Identifying Hi/Scan Pro
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: If Hi/Scan pro is not available, check the blinking code by the ABS warning lamp.

Ground the pin "i" and "r" of data link connector in the engine compartment with the ignition switch OFF.
Turn ignition switch ON.
DTC's will be displayed beginning will the lowest DTC number first.
After all stored DTC's have been displayed, the process will repeat and display the lowest DTC number first.

Fig 2: Grounding Pin "i" & "r" At Data Link Connector
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The ABS warning lamp illuminates for 0.1 second after the ignition switch is turned ON. This does not indicate an error code. For time schedule using ABS warning lamp, refer to Fig 3 .

0.1 Seconds
4 Seconds
0.5 Seconds
1.5 Seconds
2.5 Seconds or 4 Seconds
NOTE:
- The OFF state between DTC display cycles is 4 seconds.
- When several DTC's are displayed, the OFF state between codes is 2.5 seconds.

  Fig 3: Reading Codes Using ABS Warning Lamp
  Courtesy of KIA MOTORS AMERICA, INC.
All Clear Code - 0.25 Seconds

NOTE: If the system is operating normally (no malfunction) the warning lamp will blink once every 0.25 second. This is the "All Clear" code.

Fig 4: Identifying All Clear Code Display

Courtesy of KIA MOTORS AMERICA, INC.
