Troubleshooting Guide
>>
Diagnostic Trouble Codes
Diagnostic Trouble Codes

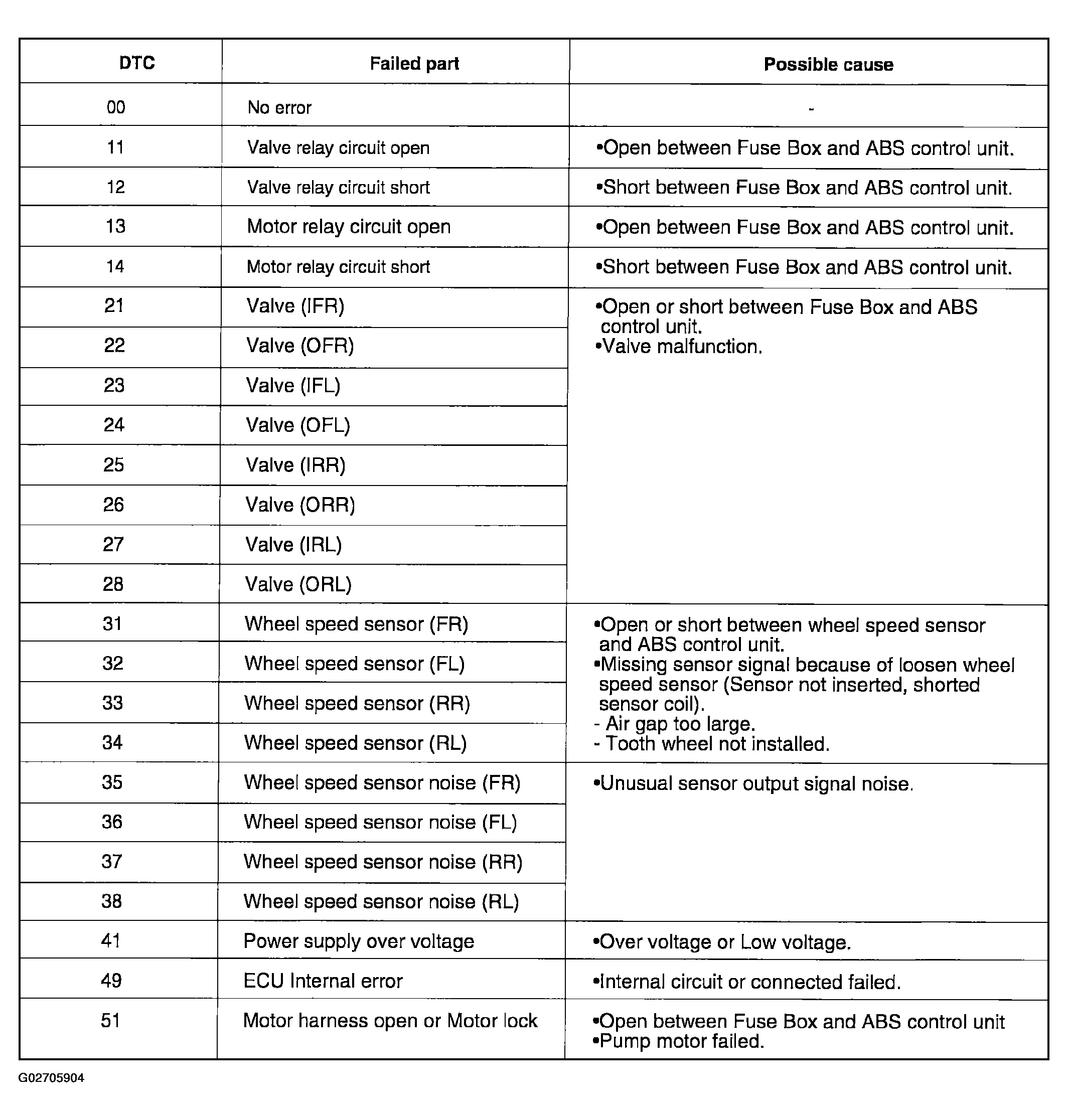

Fig 1: Identifying Diagnostic Trouble Codes, Failed Component & Possible Causes
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
