Hydraulic Circuits

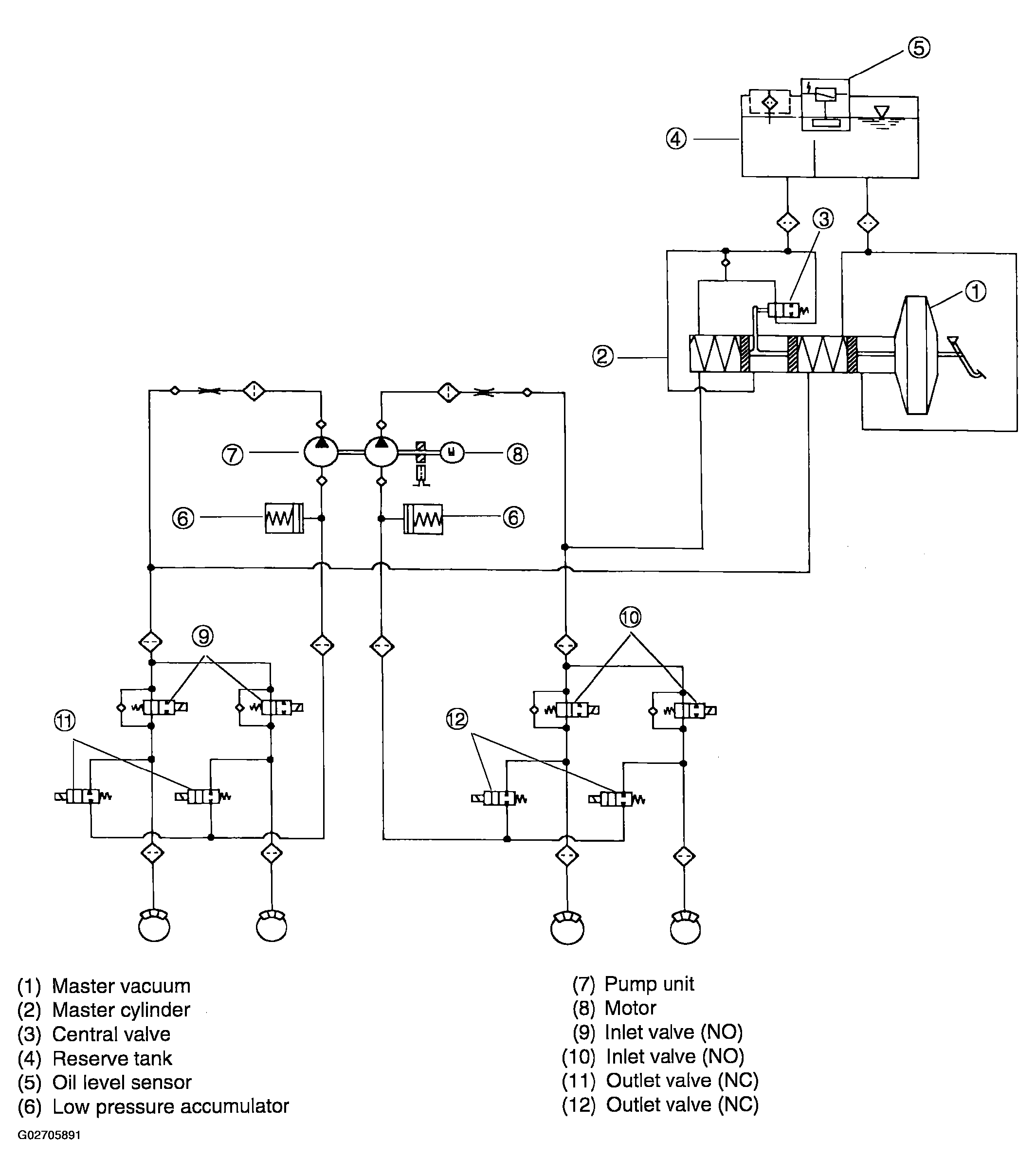

Fig 1: Identifying ABS Hydraulic Circuits

G02705891

Courtesy of KIA MOTORS AMERICA, INC.
