Selector Lever

  1. Shift selector lever into "P" range.
  2. Loosen the selector cable adjust nut at the transaxle side, then verify that the position of the selector lever is in the "P" range. See Fig 1 . If not, turn the adjust nut to the "P" range.
  3. Tighten the selector cable adjust nut, at the transaxle side, to specification. See TORQUE SPECIFICATIONS  .

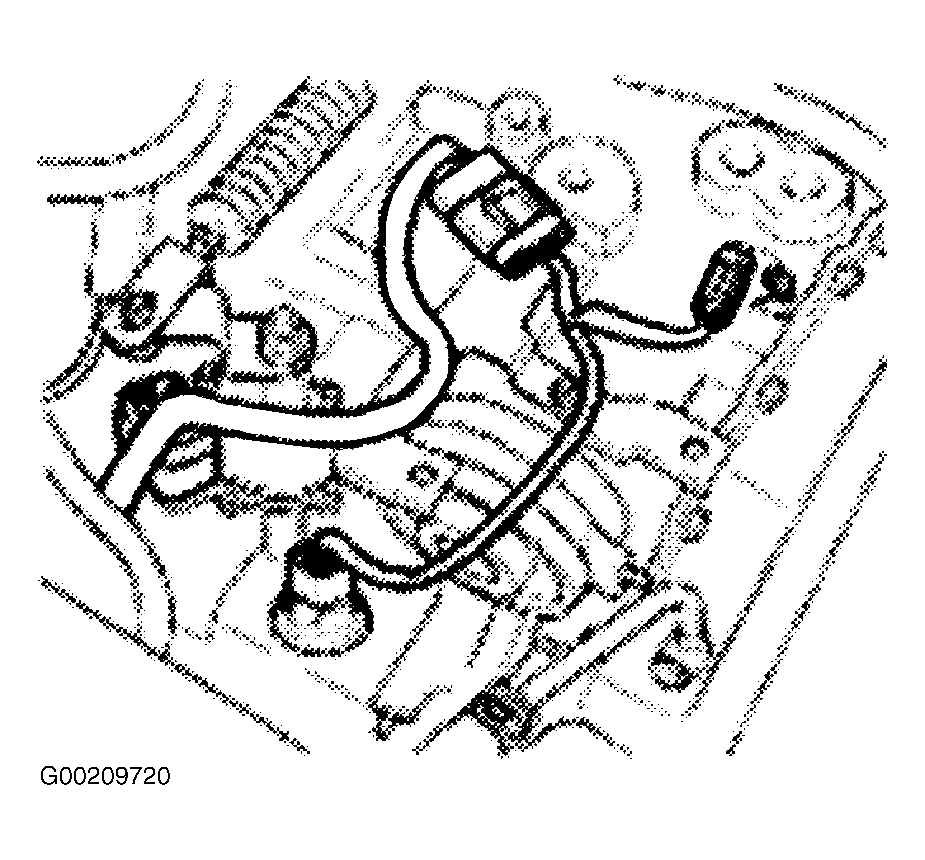

Fig 1: Loosening Selector Cable Adjust Nut
G00209720Courtesy of KIA MOTORS AMERICA, INC.
