Hydraulic Control Unit (HCU)

The HCU consists of a motor pump assembly in which motor sensor is built, and valve block for controlling ABS pressure. To identify brake pipe holes, refer to BRAKE PIPE HOLE PITCH SPECIFICATION  table.

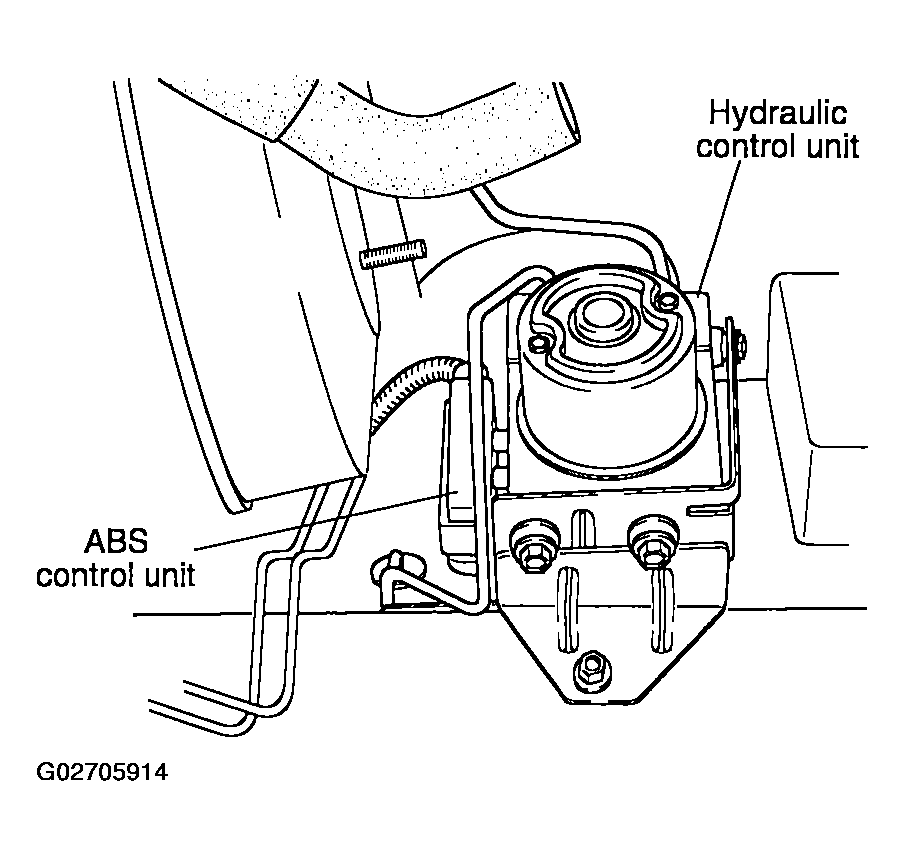

Fig 1: Locating ABS & Hydraulic Control Unit

Courtesy of KIA MOTORS AMERICA, INC.

The motor pump is a reciprocal 2-line pump and transmits enough pressure to the wheel system, and the valve block controls fluid pressure to each wheel cylinder.

ABS module: The ABS module illuminates the ABS warning lamp when an ABS failure occurs.
