Power Window Switch
>>
Circuit Diagram
Circuit Diagram

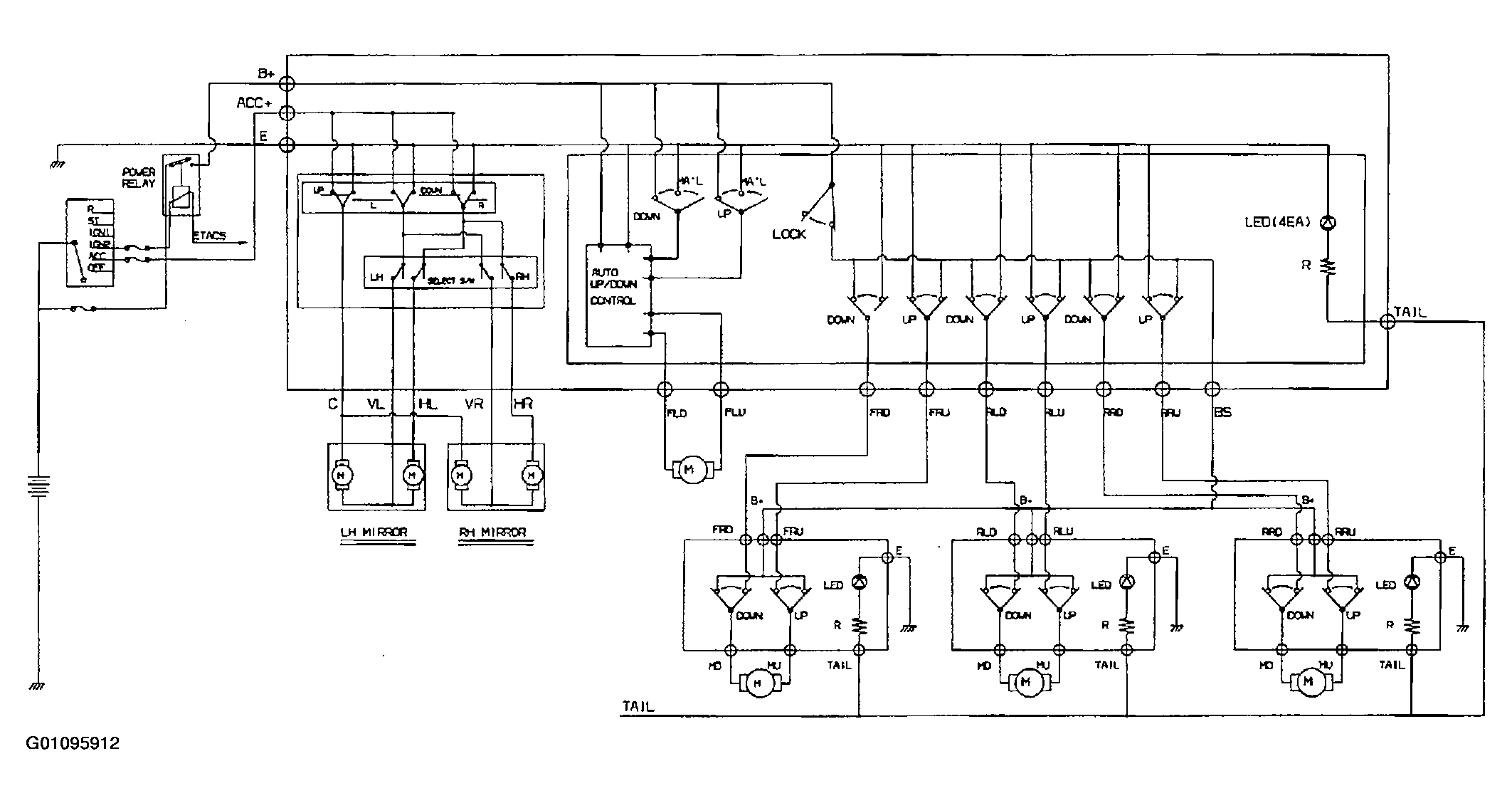

Fig 1: Power Window Switch Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
