Power Door Locks: Testing: Inspection

  1. Disconnect the actuator connector from the wiring harness.
  2. Apply battery voltage (12V) to each terminal as shown in the table and verify that the actuator operates correctly.

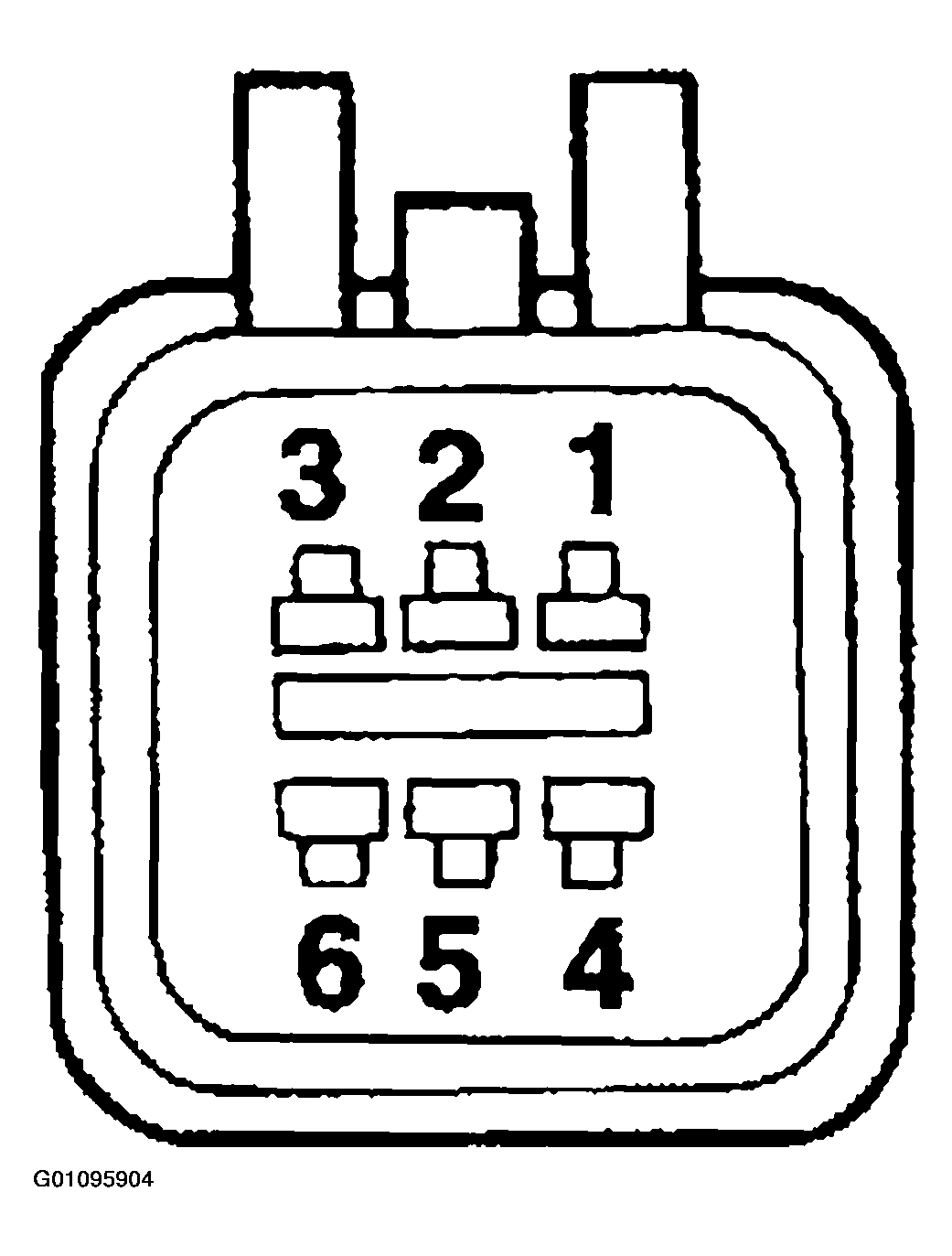

    Fig 1: Power Door Lock Actuator Connector Pinout
    G01095904Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Power Door Lock Actuator Function Chart
    G01095905Courtesy of KIA MOTORS AMERICA, INC.
