Removal, Disassembly, Inspection, Reassembly, Installation: Installation
- Before installation, apply multipurpose grease to the groove on the inside of the bearing and mating surfaces of the boot and cover assembly.
- Connect the steering lower shaft and joint assembly.
- Install the dust cover with column shaft assembly.
- Install the steering column assembly to the column member assembly (4 bolts).
- Install the multi function switch and connect the connectors.
- Install the lower cover and upper and lower shroud.
- Install the steering wheel.
NOTE:

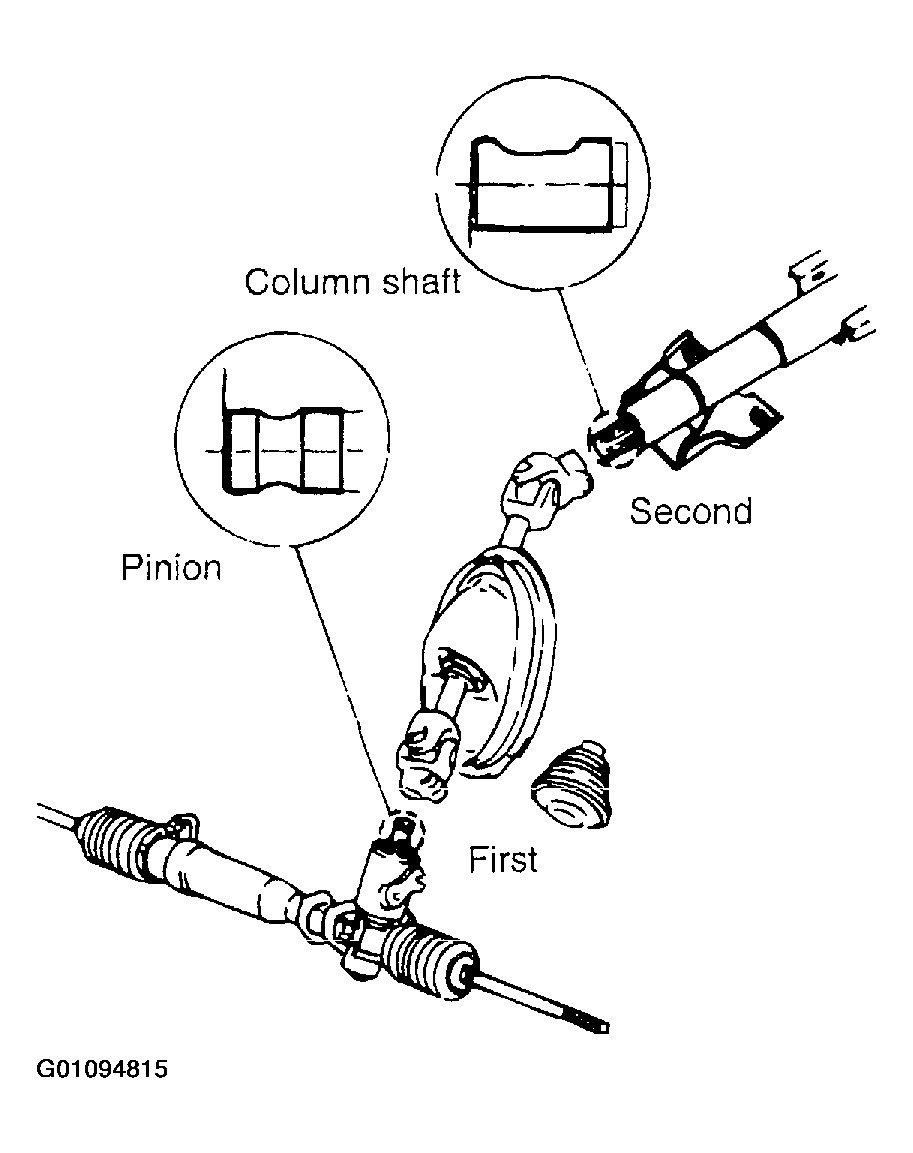

When installing, secure the U-joint to the gear box first, then to the steering column shaft.
NOTE:
When installing, do not use a hammer as the collapsible column shaft could be damaged.
