Removal, Disassembly, Inspection, Reassembly, Installation: Disassembly

Remove the coupling and universal joint from the steering column and shaft assembly.

Fig 1: Removing Universal Joint From Steering Column & Shaft Assembly
Courtesy of KIA MOTORS AMERICA, INC.

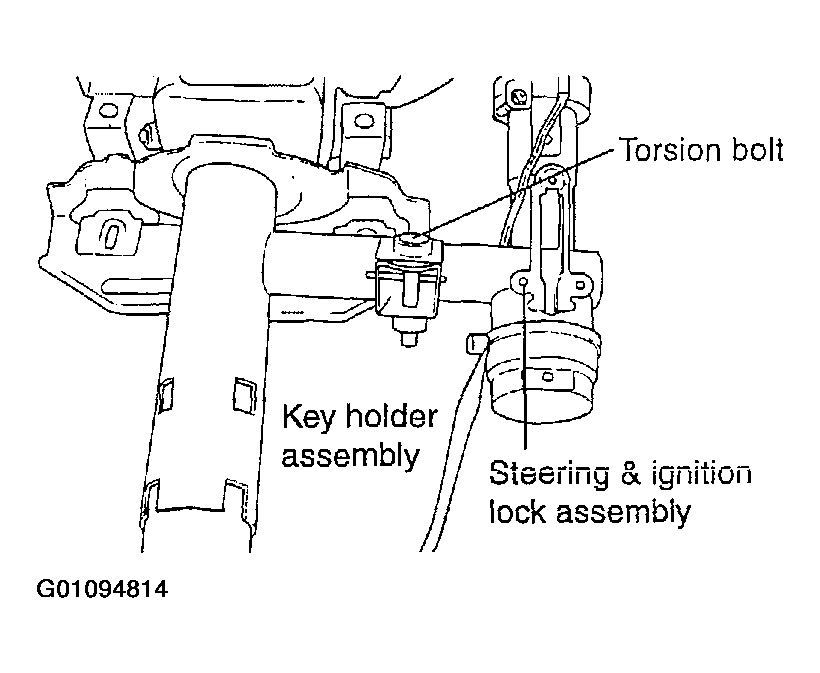

If it is necessary to remove the steering and ignition lock assembly, use a hack saw to cut the torsion bolt at the key holder assembly side.

Fig 2: Cutting Torsion Bolt At The Key Holder Assembly Side
Courtesy of KIA MOTORS AMERICA, INC.
