Home >> Kia >> 2002 >> Optima SE, 2.7 8 >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> 2.7L V6 Engine >> Cylinder Head Assembly >> Valves >> Components

Cylinder Head Assembly: Valves: Components

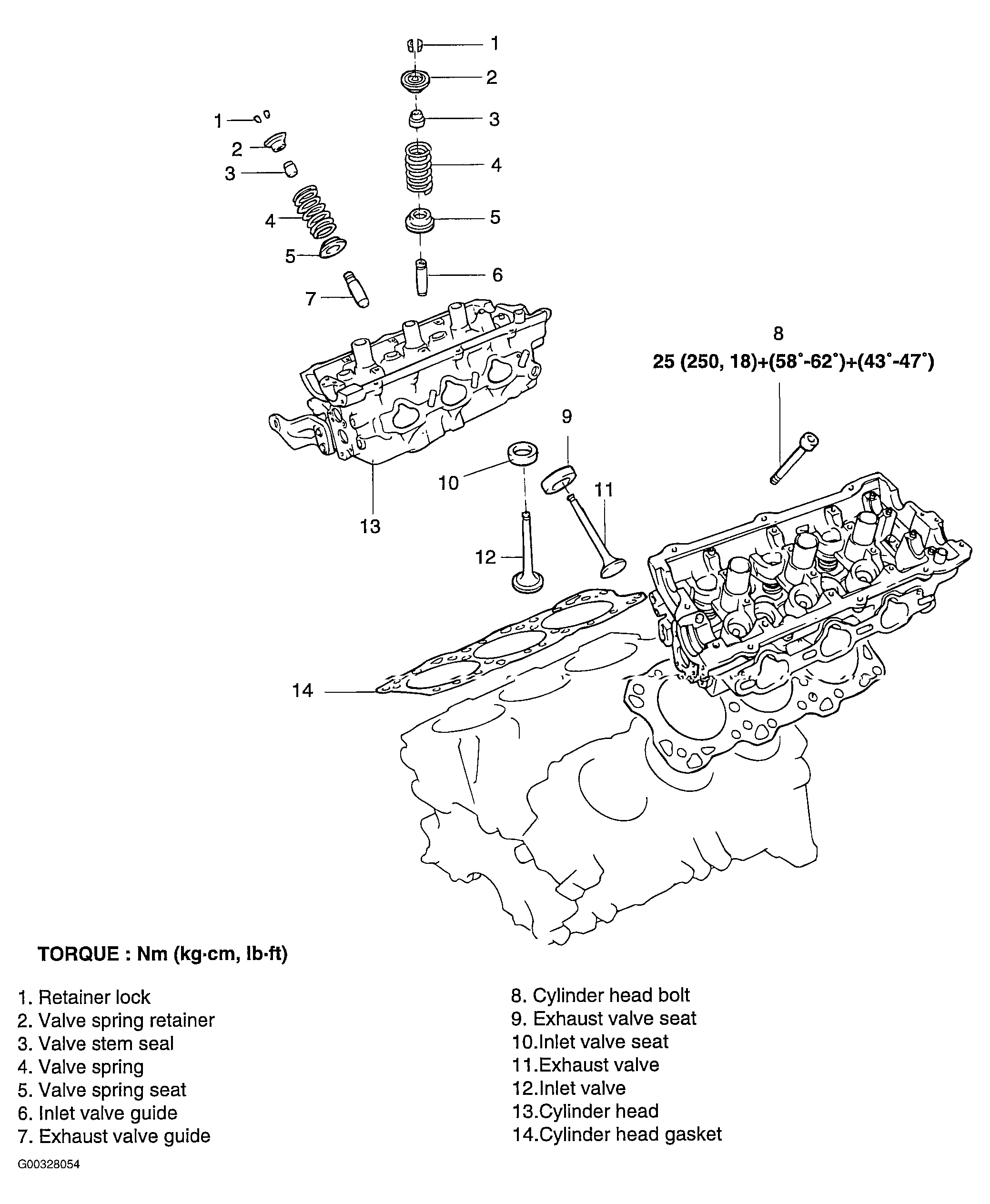

Fig 1: Removing & Installing Valves

G00328054

Courtesy of KIA MOTORS AMERICA, INC.
